Schneider Electric LXM62DD15F21000

Overview

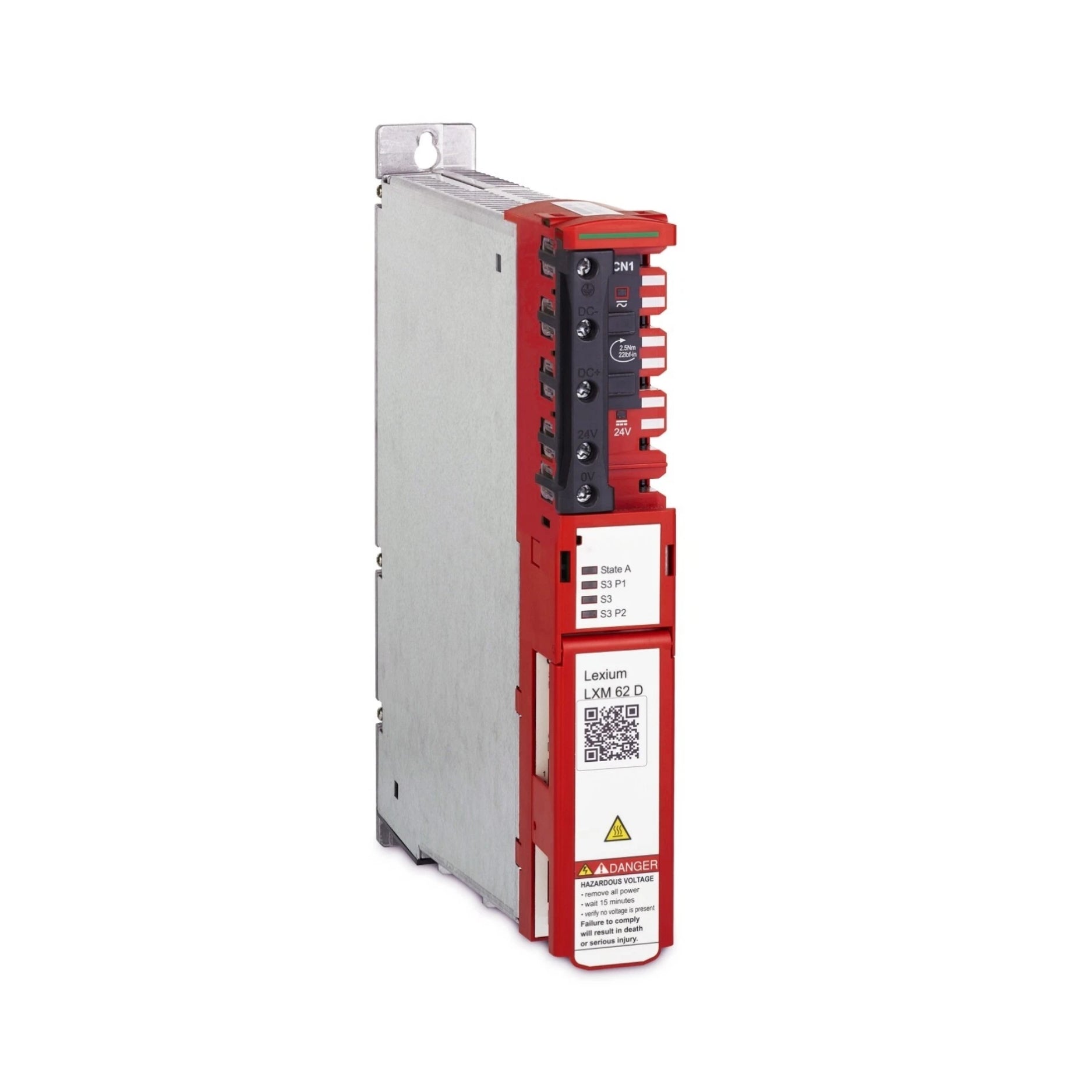

The Schneider Electric LXM62DD15F21000 is a double drive from the PacDrive 3 Lexium 62 series, delivering 5 A continuous output current at 4 kHz and a power rating of 2.4 kW. It integrates seamlessly with PacDrive LMC controllers through SERCOS III communication, making it ideal for multi-axis automation applications.

This drive is built to handle high-performance machine control, including packaging, robotics, and material handling, with integrated advanced safety functions for reliable operation.

Key Features

• Brand: Schneider Electric

• Range: PacDrive 3 – Lexium 62

• Model: LXM62DD15F21000

• Drive Type: Double Drive

• Continuous Output Current: 5 A at 4 kHz

• Peak Current (3s): 15 A

• Continuous Power: 2.4 kW

• Supply Voltage: 230 V / 400 V, single or three-phase

• Switching Frequency: 8 kHz

• Communication: Integrated SERCOS III

• Safety Functions: STO, SS1, SS2, SOS, SMS, SLS, SDI

• Weight: 3 kg (6.6 lb)

• Protection Rating: IP20

I/O and Connectivity

• Inputs: 2 digital, 2 touch probe

• Outputs: 2 digital

• Input Voltage: 24 VDC (−20%…+25%)

• Output Voltage: 24 VDC

• Electrical Connection Terminals:

  • CN4: 0.2…15 mm² (AWG 24–AWG 16)

  • CN5: 0.5…16 mm² (AWG 20–AWG 6)

  • CN6: 0.75…16 mm² (AWG 18–AWG 6)

  • CN7: 0.2…6 mm² (AWG 24–AWG 10)

  • Torque: 2.5 N·m (22.1 lbf·in)

Certifications & Standards

• Certifications: CE, UL, CSA, TÜV, EAC

• Standards:

  • UL 508C

  • CSA C22.2 No 14

  • IEC 61508

  • IEC 61800-3

  • IEC 61800-5-1 / IEC 61800-5-2

  • IEC 62061

  • ISO 13849-1 / ISO 13849-2

Motor Compatibility

• SH3 Servo Motors:

  • 70 mm (2, 3 stacks)

  • 100 mm (1, 2, 3 stacks – torque & high torque options)

  • 140 mm (1 stack, high torque)

• MH3 Servo Motors:

  • 70 mm (2, 3 stacks)

  • 100 mm (1 stack)

• SHS Servo Motors

Applications

• High-speed packaging lines

• Robotics and multi-axis machinery

• Material handling systems

• General machine control

Why Choose the LXM62DD15F21000

• Compact double drive solution with 2.4 kW power

• Advanced integrated safety functions for machine protection

• Wide servo motor compatibility across SH3, MH3, and SHS ranges

• Seamless PacDrive 3 integration with SERCOS III communication

• Certified for global use (CE, UL, CSA, TÜV, EAC)

Order Now

The Schneider Electric LXM62DD15F21000 Lexium 62 Double Drive is available and ships worldwide.

Return to Lexium 62 Drives

Explore Schneider Electric Lexium | Servo Drives & Motors Solutions
