Schneider Electric LXM62DD15D21000

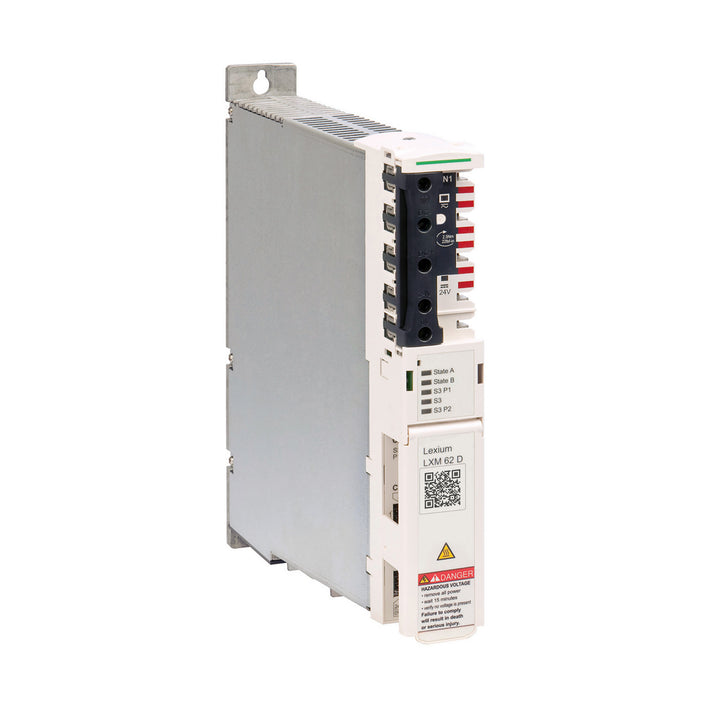

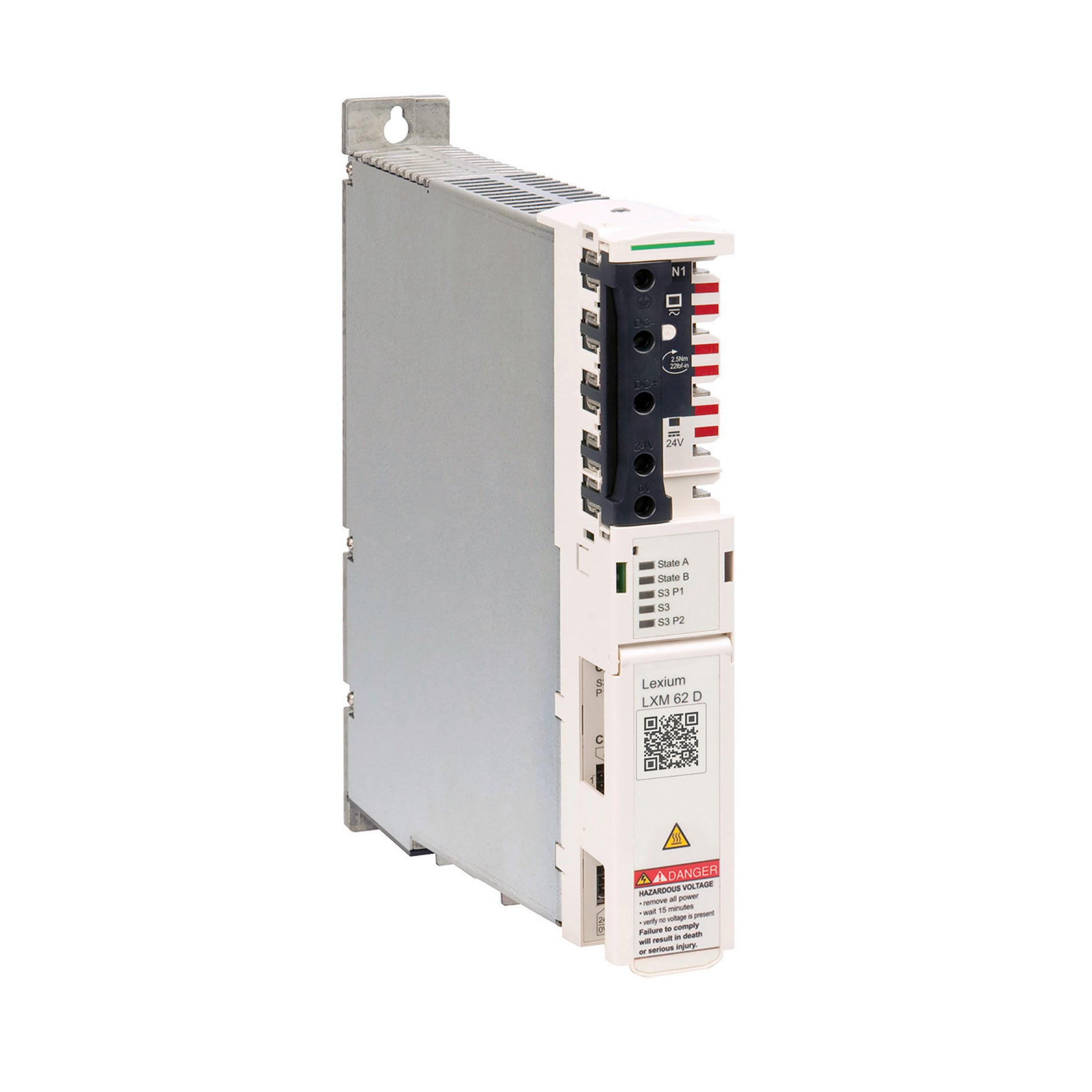

Schneider Electric LXM62DD15D21000 – Lexium 62 Double Drive

Overview

The Schneider Electric LXM62DD15D21000 is a high-performance Lexium 62 double drive from the PacDrive 3 range, delivering 2.4 kW continuous power with 5 A output current at 4 kHz. Designed for multi-axis automation, it provides reliable control for servo-driven applications requiring high torque and precision.

The drive integrates seamlessly into PacDrive 3 systems through SERCOS III communication and includes 2 digital inputs, 2 touch probe inputs, and 2 digital outputs. Compact, robust, and IP20-rated, this unit is certified for global industrial use, making it suitable for packaging machines, material handling systems, and general machine control.

Key Features

• Brand: Schneider Electric

• Range: Lexium 62 & Motors

• Model: LXM62DD15D21000

• Device Type: Double Drive

• Rated Power: 2.4 kW

• Rated Supply Voltage: 24 V DC

• Continuous Output Current: 5 A at 4 kHz

• Peak Output Current: 15 A (3 s)

• Switching Frequency: 8 kHz

• I/O:

  • 2 digital inputs

  • 2 touch probe inputs

  • 2 digital outputs

• Communication: Integrated SERCOS III

• Degree of Protection: IP20 (IEC 60529)

• Net Weight: 3 kg (6.6 lb)

Motor Compatibility

• SH3 servo motors:

  • 70 mm (2–3 stacks)

  • 100 mm (1–2 stacks, torque-optimized or high torque)

  • 140 mm (1 stack, high torque)

• MH3 servo motors:

  • 70 mm (2–3 stacks)

  • 100 mm (1 stack)

• SHS servo motors

Technical Specifications

• Continuous Power: 2.4 kW

• Nominal Power: 2.4 kW

• Supply Voltage Options:

  • 400 V three-phase (±10 %)

  • 230 V three-phase (±10 %)

  • 230 V single-phase (±10 %)

• Supply Frequency: 50/60 Hz (±5 %)

• Output Current: 5 A continuous, 15 A peak (3 s)

• Overvoltage Category: III

• Standards:

  • IEC 61508

  • EN/ISO 13849-1

  • EN/ISO 13849-2

  • EN 61800-5-1

  • EN 61800-5-2

  • EN 62061

  • CSA C22.2 No 14

• Certifications: CE, CSA, EAC, TÜV, UL

Applications

• High-speed packaging machinery

• Material handling and logistics systems

• General industrial automation

• Multi-axis synchronization with PacDrive 3 controllers

Why Choose Schneider Electric LXM62DD15D21000

• Powerful 2.4 kW double drive for multi-axis servo systems

• Seamless SERCOS III integration with PacDrive 3 controllers

• Certified for global use – CE, UL, CSA, TÜV, EAC

• Optimized compatibility with SH3, MH3, and SHS servo motors

• Space-saving and reliable drive for industrial environments

Order Now

The Schneider Electric LXM62DD15D21000 Lexium 62 double drive is available and ships worldwide.
