Schneider Electric LXM62DD15C21000

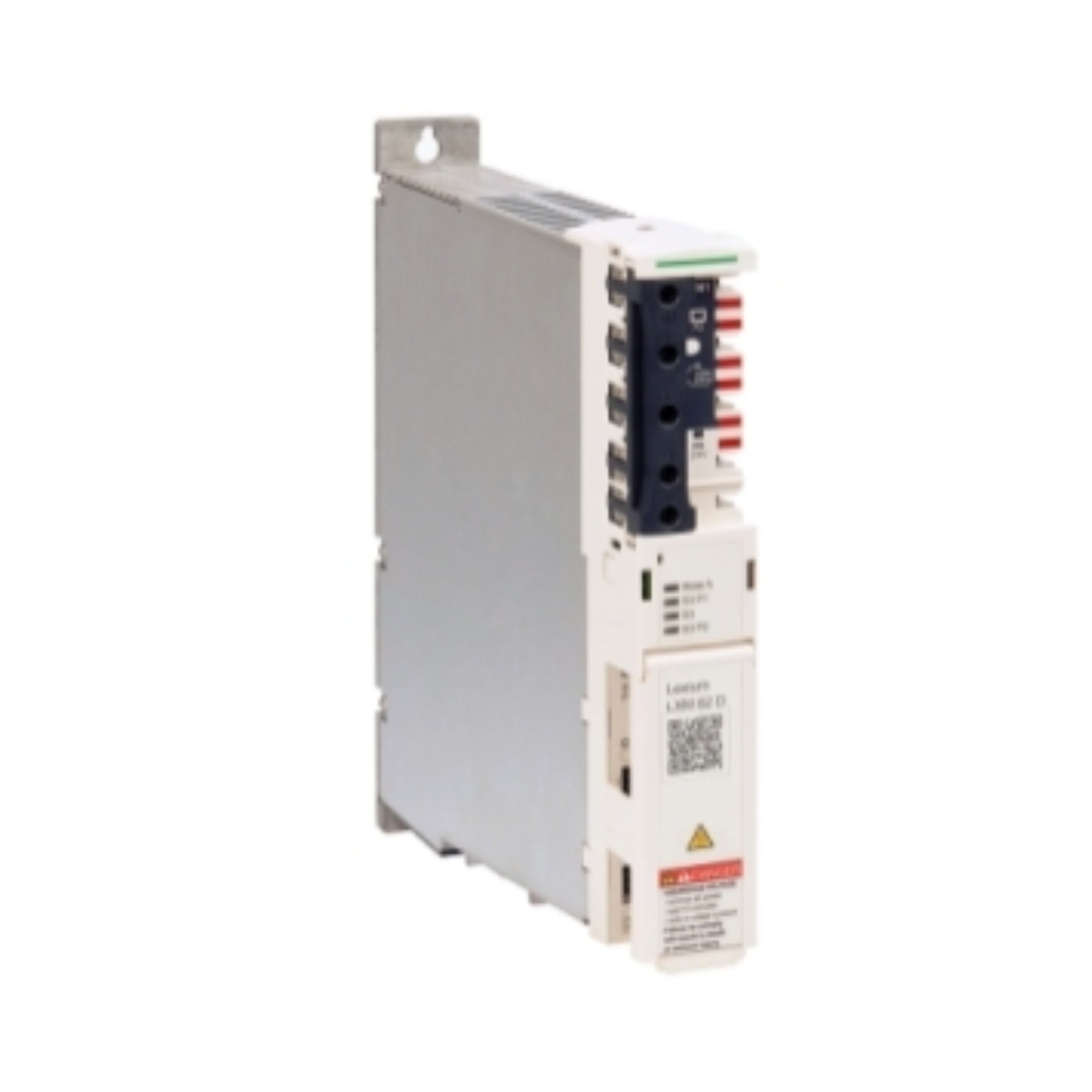

Schneider Electric LXM62DD15C21000 – Lexium 62 Single Drive

Overview

The Schneider Electric LXM62DD15C21000 is a high-performance Lexium 62 single drive designed for use in PacDrive 3 automation systems. Delivering 0.95 kW continuous power with a 2 A output current at 4 kHz, this compact unit supports SERCOS III communication for seamless multi-axis integration.

Equipped with 2 digital inputs, 2 touch probe inputs, and 2 digital outputs, it enables precise motion and machine control. With an IP20 protection rating and compliance to global safety standards, the drive is engineered for reliability in demanding industrial environments such as packaging, material handling, and general machine automation.

Key Features

• Brand: Schneider Electric

• Range: Lexium 62 & Motors

• Model: LXM62DD15C21000

• Device Type: Single Drive

• Rated Power: 0.95 kW

• Rated Supply Voltage: 24 V DC

• Continuous Output Current: 2 A at 4 kHz

• I/O:

  • 2 digital inputs

  • 2 touch probe inputs

  • 2 digital outputs

• Communication: Integrated SERCOS III

• Electrical Connection: Connector type

• Degree of Protection: IP20 (IEC 60529)

• Net Weight: 3 kg (6.6 lb)

Motor Compatibility

• SH3 servo motor (55 mm, 1 motor stack)

• SH3 servo motor (55 mm, 2 motor stacks)

• SH3 servo motor (55 mm, 3 motor stacks)

Technical Specifications

• Dimensions: Compact Lexium 62 profile

• Power Range: 0.95 kW

• Multi-axis System: Compatible with PacDrive 3 LMC Pro, Pro2, and Eco controllers

• Certifications: CE, CSA, EAC, TÜV, UL

• Standards:

  • EN/ISO 13849-1

  • EN/ISO 13849-2

  • UL 508C

  • CSA C22.2 No 14

  • IEC 62061

  • EN 61800-5-2

Applications

• General machine automation

• Packaging machinery

• Material handling systems

• Multi-axis motion control with PacDrive 3

Why Choose Schneider Electric LXM62DD15C21000

• Compact single drive solution with 0.95 kW power

• Full SERCOS III integration for PacDrive 3 systems

• Flexible I/O for precision machine control

• Global certifications for safe, reliable operation

• Compatible with a wide range of Lexium SH3 servo motors

Order Now

The Schneider Electric LXM62DD15C21000 Lexium 62 single drive is available and ships worldwide.
