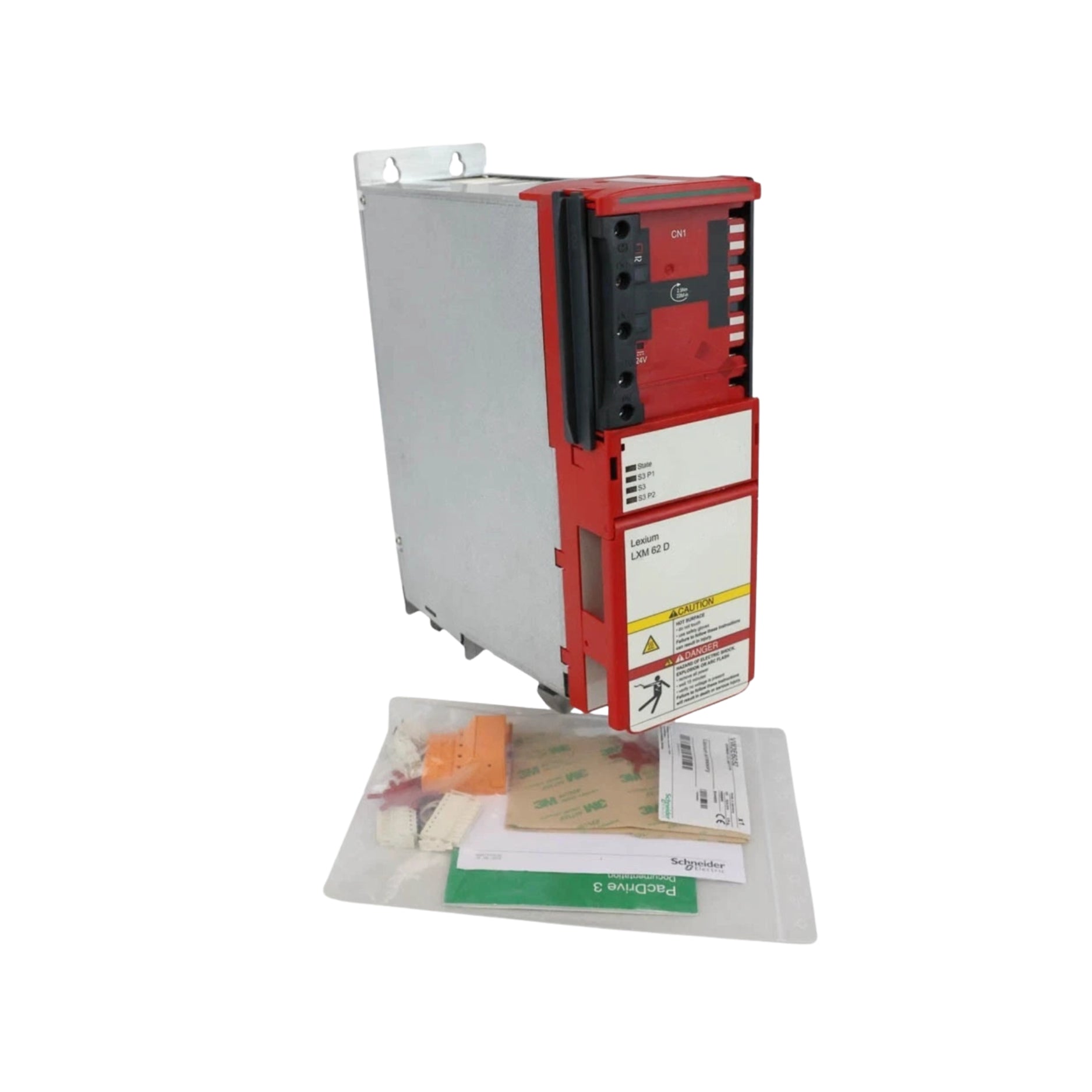

Schneider Electric LXM62DC13E21000

Schneider Electric LXM62DC13E21000 – Lexium 62 Single Drive

Overview

The Schneider Electric LXM62DC13E21000 is a Lexium 62 single drive from the PacDrive 3 series, engineered for high-power motion control. With a continuous output current of 50 A, a peak of 130 A at 4 kHz, and 24.7 kW nominal power, it delivers exceptional performance for demanding automation systems.

Equipped with advanced safety functions such as STO, SS1, SS2, SOS, SMS, SLS, and SDI, this unit ensures maximum machine safety and operational reliability. Integrated SERCOS III communication enables seamless multi-axis coordination with PacDrive 3 controllers, making it ideal for packaging, material handling, and industrial automation applications.

Key Features

• Brand: Schneider Electric

• Range: PacDrive 3 – Lexium 62

• Model: LXM62DC13E21000

• Type: Single Drive

• Rated Power: 24.7 kW

• Continuous Current: 50 A at 4 kHz

• Peak Current: 130 A at 4 kHz

• Supply Voltage:

  • 400 V three-phase (±10 %)

  • 230 V three-phase (±10 %)

  • 230 V single-phase (±10 %)

• Supply Frequency: 50/60 Hz (±5 %)

• Switching Frequency: 8 kHz

• Overvoltage Category: III

• Weight: 6.8 kg (15 lb)

• Protection: IP20

Safety Functions

• STO (Safe Torque Off)

• SS1 (Safe Stop 1)

• SS2 (Safe Stop 2)

• SOS (Safe Operating Stop)

• SLS (Safe Limited Speed)

• SMS (Safe Maximum Speed)

• SDI (Safe Direction Indication)

I/O and Connectivity

• Inputs: 2 digital, 2 touch probe

• Outputs: 2 digital

• Input Voltage: 24 V DC (±20–25 %)

• Communication: Integrated SERCOS III

• Electrical Terminals: CN4, CN5, CN6, CN7

• Tightening Torque (CN1): 2.5 N·m (22.1 lbf·in)

Motor Compatibility

• SH3 servo motors: 140 mm (4 stacks), 205 mm (1–3 stacks)

• MH3 servo motors: 140 mm (2–3 stacks), 190 mm (1–3 stacks)

• SHS servo motors

Technical Specifications

• Continuous Power: 24.7 kW

• Nominal Power: 24.7 kW

• Net Dimensions: 310 mm (H) × 270 mm (D) × 89.5 mm (W)

• Standards: IEC 61800-3, IEC 61800-5-1, IEC 61800-5-2, IEC 62061, IEC 61508, UL 508C, ISO 13849-1/2, CSA C22.2 No 14

• Certifications: CE, UL, CSA, EAC, TÜV

Applications

• High-performance packaging machines

• Material handling automation

• Industrial robotics and multi-axis control

• General machine control requiring advanced safety

Why Choose the LXM62DC13E21000

• High power 24.7 kW single drive with robust current handling

• Comprehensive safety suite for machine protection

• Seamless PacDrive 3 ecosystem integration via SERCOS III

• Compatible with a wide range of SH3, MH3, and SHS motors

• Certified for global use (CE, UL, CSA, TÜV, EAC)

Order Now

The Schneider Electric LXM62DC13E21000 Lexium 62 Single Drive is available and ships worldwide.
