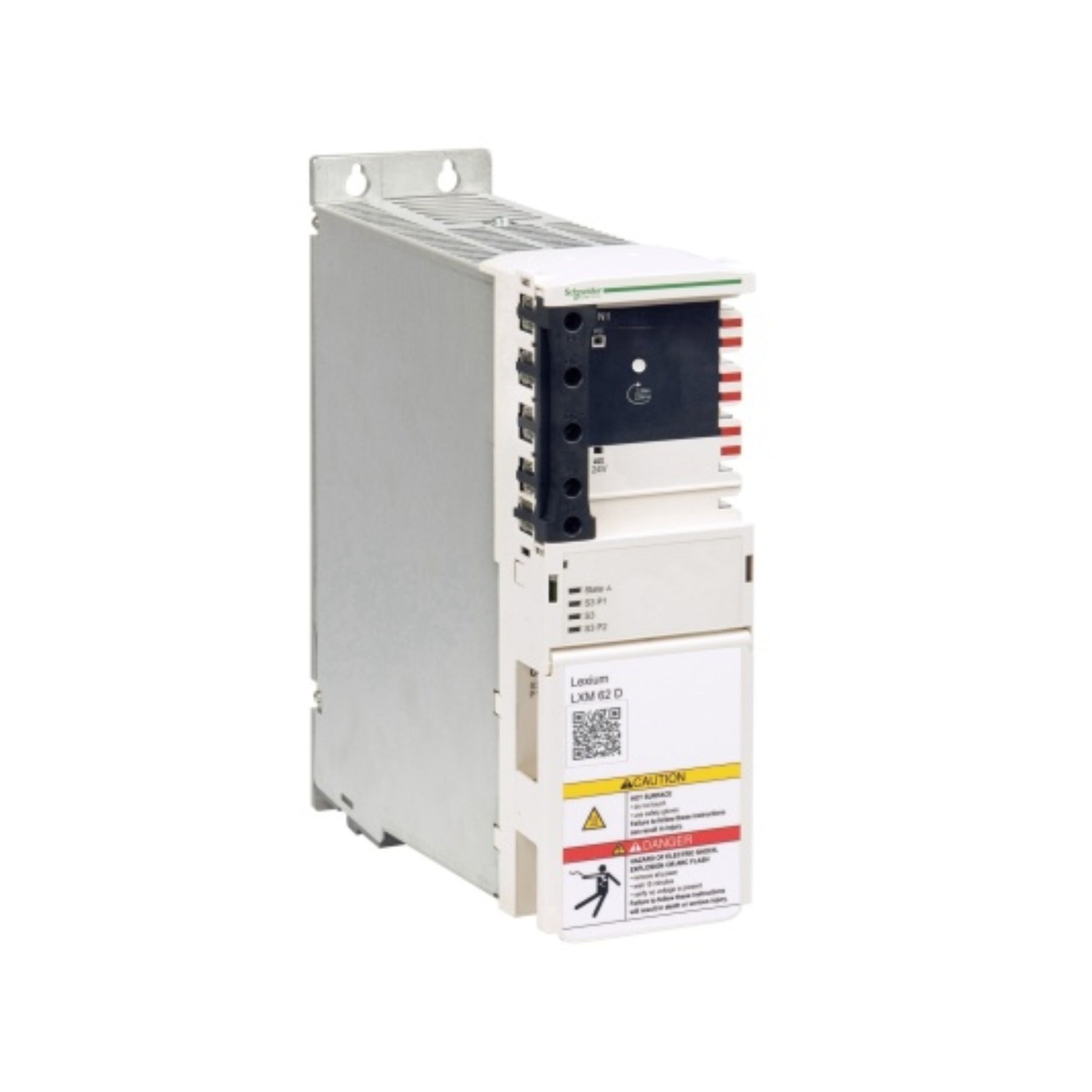

Schneider Electric LXM62DC13C21000 – Lexium 62 Single Drive

Overview

The Schneider Electric LXM62DC13C21000 is a high-power Lexium 62 single drive from the PacDrive 3 range, delivering 24.7 kW continuous power with 50 A output current at 4 kHz. It is designed for large-scale multi-axis automation systems where precision, performance, and safety are critical.

With SERCOS III communication, the drive integrates seamlessly into PacDrive 3 networks. It supports 2 digital inputs, 2 touch probe inputs, and 2 digital outputs, making it highly adaptable for complex applications. Certified to international standards and housed in an IP20-rated enclosure, this robust unit is ideal for general machine control, packaging automation, and material handling systems.

Key Features

• Brand: Schneider Electric

• Range: Lexium 62 & Motors

• Model: LXM62DC13C21000

• Device Type: Single Drive

• Rated Power: 24.7 kW

• Rated Supply Voltage: 24 V DC

• Continuous Output Current: 50 A at 4 kHz

• Peak Current (3 s): 130 A at 4 kHz

• Switching Frequency: 8 kHz

• I/O:

  • 2 digital inputs

  • 2 touch probe inputs

  • 2 digital outputs

• Communication: Integrated SERCOS III

• Degree of Protection: IP20 (IEC 60529)

• Net Weight: 6.8 kg (15 lb)

Motor Compatibility

• SH3 servo motor (140 mm, 4 motor stacks)

• SH3 servo motor (205 mm, 1 or 2 motor stacks)

• MH3 servo motors (140 mm, 2 or 3 stacks / 190 mm, 1–3 stacks)

• SHS servo motors

Technical Specifications

• Continuous Power: 24.7 kW

• Nominal Power: 24.7 kW

• Supply Voltage Options:

  • 400 V three-phase (±10 %)

  • 230 V three-phase (±10 %)

  • 230 V single-phase (±10 %)

• Supply Frequency: 50/60 Hz (±5 %)

• Output Current: 50 A continuous, 130 A peak (3 s)

• Communication Protocol: SERCOS III

• Overvoltage Category: III

• Certifications: CE, CSA, EAC, TÜV, UL

• Standards:

  • UL 508C

  • EN 61800-5-1

  • EN 61800-3

  • EN 61800-5-2

  • IEC 61508

  • EN/ISO 13849-1

  • EN/ISO 13849-2

  • CSA C22.2 No 14

Applications

• Large-scale packaging machines

• Industrial material handling systems

• High-power servo automation

• Multi-axis synchronization in PacDrive 3 environments

Why Choose Schneider Electric LXM62DC13C21000

• Delivers 24.7 kW continuous power for high-demand automation

• Seamless SERCOS III integration with PacDrive 3 controllers

• Built-in safety and global standard compliance

• Wide servo motor compatibility (SH3, MH3, SHS)

• Robust and compact design for industrial reliability

Order Now

The Schneider Electric LXM62DC13C21000 Lexium 62 single drive is available and ships worldwide.
