Parker 590P-53318032-P00-U4V0

Parker 590P-53318032 – Overview

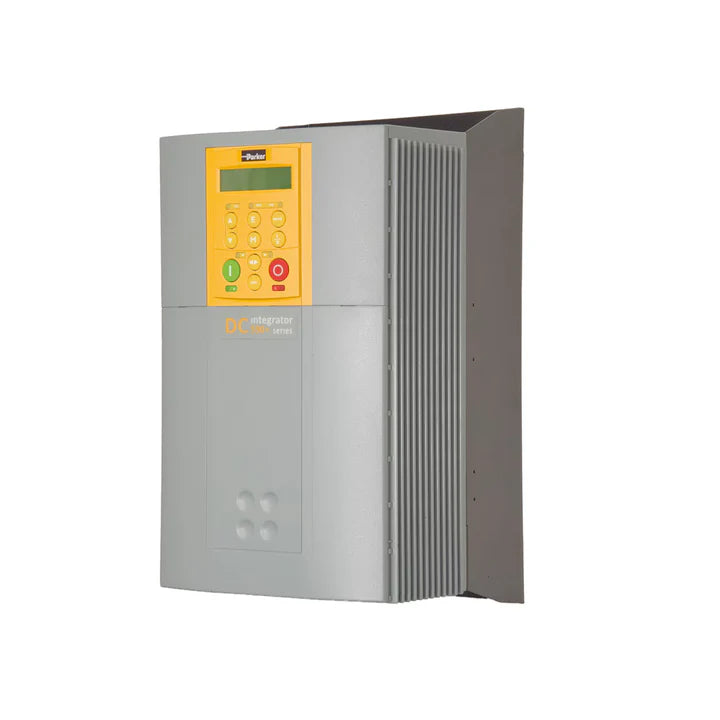

The Parker 590P-53318032-P00-U4V0 is a high-capacity model within the DC590+ digital DC drive family. It supports full four-quadrant operation—forward, reverse, and regenerative braking—and is engineered for demanding industrial motor control applications. With flexible I/O, programmable logic, extensive diagnostics, and feedback support, it integrates smoothly into automation systems and heavy-duty processes.

Key Features

• Four-quadrant control: forward, reverse, and regenerative braking

• Flexibly programmable analog and digital I/O channels

• Function block logic for custom control sequences

• Feedback support: encoder, tachogenerator, or armature voltage

• Auto-tuning and diagnostic routines

• Removable keypad for local display and adjustments

• Modular chassis design for panel installation

Technical Specifications

• Model: 590P-53318032-P00-U4V0

• Input Voltage: 3-phase 220–500 VAC

• Rated Current: 180 A

• Overload Capability: e.g. 150 % for short durations

• Analog Inputs: 5 programmable channels

• Analog Outputs: 3 (two configurable)

• Digital Inputs: 9 (24 V DC, programmable)

• Digital Outputs: 3 (protected)

• Built-in Reference Supplies: +10 V, –10 V, +24 V

• Operating Temperature: up to ~45 °C (dependent on frame & cooling)

• Mounting: modular, panel-mountable chassis

• Protection & Safety: designed to require external fusing and enclosures

Applications

• Control of large DC motors in heavy machinery

• Regenerative braking systems (e.g. cranes, elevator drives)

• Modernizing legacy DC installations with intelligent control

• Precision speed/torque regulation in industrial automation

• Integration in systems requiring bidirectional motor control

Why Choose Parker 590P-53318032

• High-current capability for demanding motor loads

• Regenerative braking improves energy efficiency

• Versatile I/O and logic programming suit complex applications

• Industrial reliability and modular design

Order Now

The Parker 590P-53318032 DC590+ Speed Controller is in stock and ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
