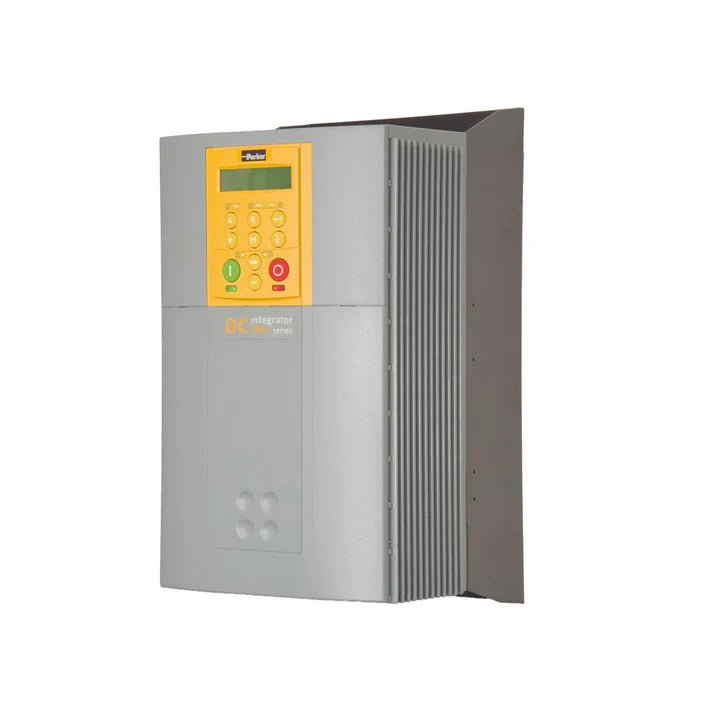

Parker 590P-53316520-P00-U4V0

Parker 590P-53316520 – Overview

The Parker 590P-53316520-P00-U4V0 is a robust member of the DC590+ digital drive family offering full four-quadrant control—forward, reverse, and regenerative braking. This model is engineered for high-performance industrial use, with configurable analog and digital I/O, programmable logic, diagnostic features, and support for motor feedback systems. It’s suited for applications requiring high power, precision control, and field adaptability.

Key Features

• Four-quadrant operation: motoring, regenerative braking, reverse

• Configurable analog and digital I/O for custom control schemes

• Function block programming to enable complex logic

• Support for feedback: encoder, tachogenerator, armature voltage

• Auto-tuning motor setup and diagnostic capabilities

• Removable keypad for local control and monitoring

• Modular, panel-mount chassis design

Technical Specifications

• Model: 590P-53316520-P00-U4V0

• Input Voltage: 3-phase 220–500 VAC

• Rated Current: 165 A

• Overload Capability: typically 150 % for brief periods

• Analog Inputs: 5 programmable channels

• Analog Outputs: 3, with two user configurable

• Digital Inputs: 9 (24 V DC, configurable)

• Digital Outputs: 3 (protected)

• Reference Supplies: +10 V, –10 V, +24 V onboard

• Operating Temperature: up to ~45 °C (frame dependent)

• Mounting: modular chassis, panel installable

• Protection: requires proper external fusing and enclosure

Applications

• High-power DC motor control in industrial settings

• Regenerative braking applications such as cranes, lifts, and conveyors

• Retrofitting older DC systems with modern intelligent drives

• Precision speed & torque control in automation systems

• Handling dynamic load operations with bi-directional control

Why Choose Parker 590P-53316520

• High current and regenerative capability for demanding loads

• Flexible I/O and programming for system customization

• Reliable diagnostics and feedback support for robust performance

• Industrial design built to handle tough environments

Order Now

The Parker 590P-53316520 DC590+ Speed Controller is in stock and ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
