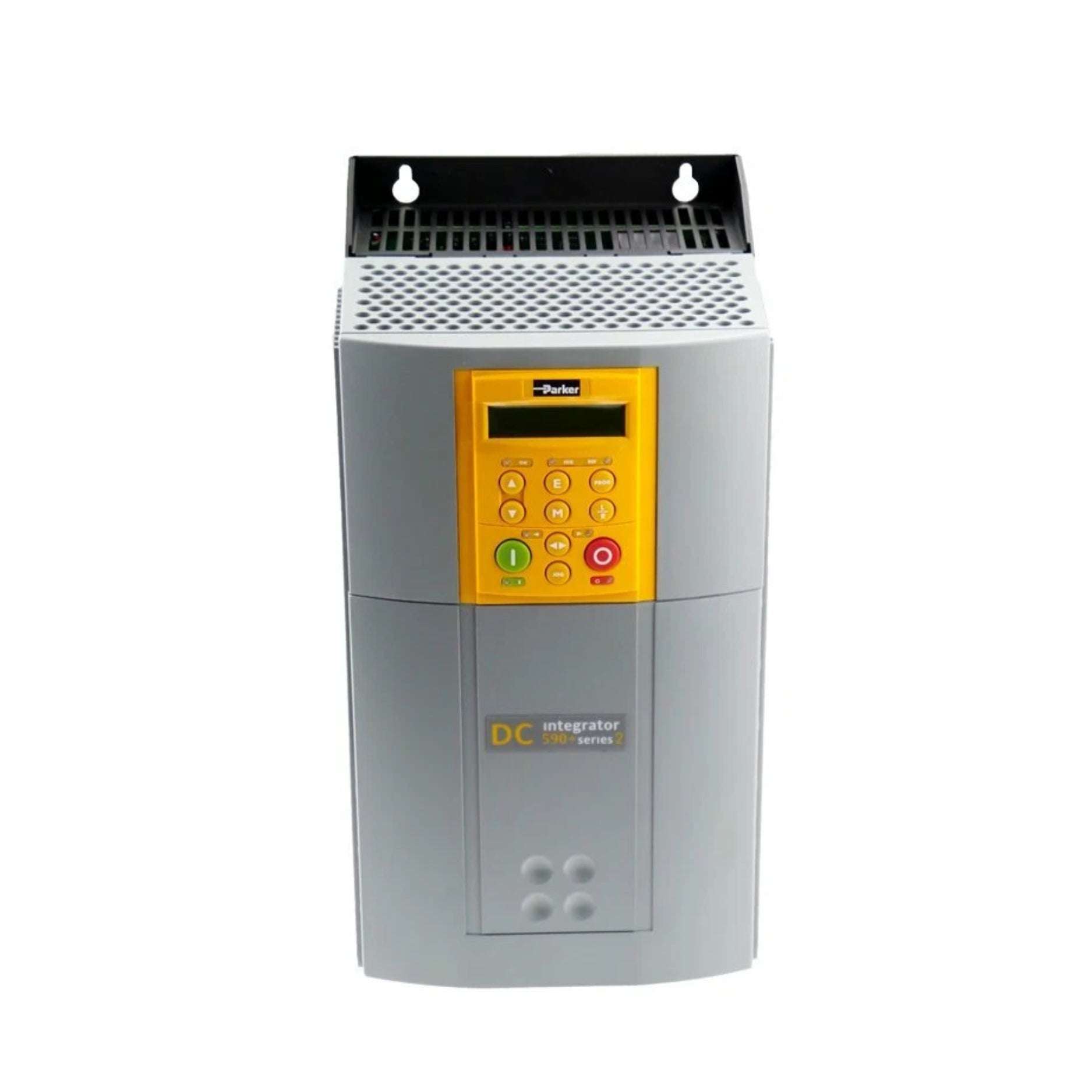

Parker 590P-53270020-P00-U4V0

Parker 590P-53270020 – Overview

The Parker 590P-53270020 is part of the DC590+ family of digital DC motor controllers designed for demanding industrial applications. It offers full four-quadrant performance (forward, reverse, braking), flexible I/O, programmable logic, and support for feedback devices. Built for integration in automation systems and durable field use, it is ideal for controlling heavy DC motors with precision and reliability.

Key Features

• Four-quadrant operation (motoring, braking, reverse)

• Configurable analog and digital I/O

• Function block programming for custom control logic

• Support for feedback: encoder, tachogenerator, armature voltage

• Auto-tuning and diagnostic features for setup and maintenance

• Removable keypad for local monitoring and control

• Modular and panel-mount design for industrial installations

Technical Specifications

• Model: 590P-53270020-P00-U4V0

• Input Voltage: 3-phase 220–500 VAC

• Current Rating: 70 A

• Overload Capability: typically ~150 % for short durations

• Analog Inputs: 5 programmable channels

• Analog Outputs: 3, with two configurable

• Digital Inputs: 9 (24 V, programmable)

• Digital Outputs: 3 (protected)

• Internal Reference Supplies: +10 V, –10 V, +24 V

• Operating Temperature: up to ~45 °C (frame dependent)

• Mounting: modular chassis suitable for control panels

• Protection/Safety: requires proper external fusing and enclosure

Applications

• Control of high-current DC motors in industrial systems

• Regenerative braking in heavy machinery (e.g. cranes, lifts)

• Retrofitting legacy DC systems to modern drives

• Integration in factory automation and motion control systems

• Precision torque and speed control in challenging environments

Why Choose Parker 590P-53270020

• Exceptional current capacity for heavy-duty motors

• Regenerative capability enhances energy efficiency

• Flexible programming and feedback support for system integration

• Industrial-grade robustness and modular design
