Parker 590P-53240020-P00-U4V0

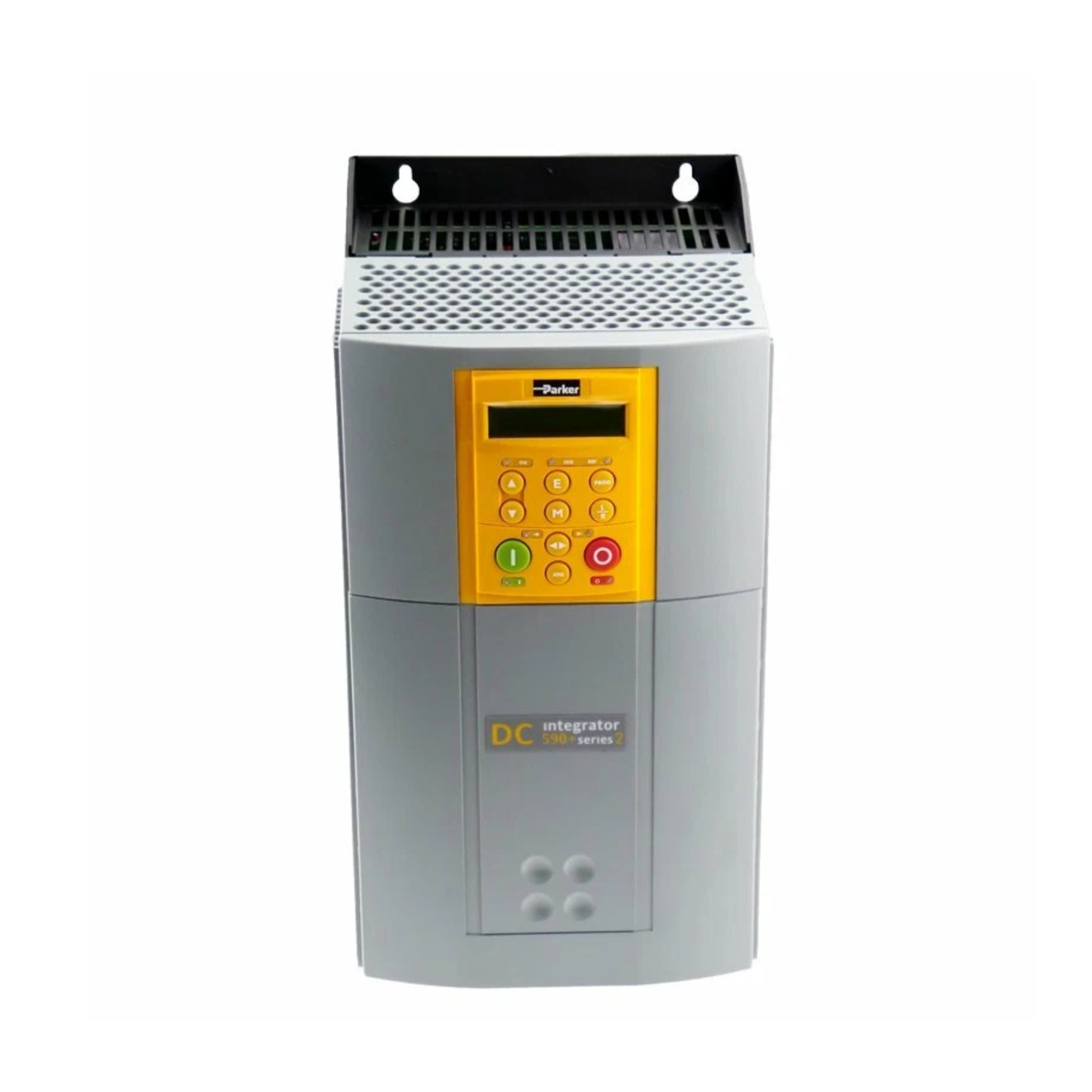

Parker 590P-53240020 – Overview

The Parker 590P-53240020 is part of the DC590+ family of digital DC motor controllers supporting full four-quadrant operation: motoring, braking, and reverse. It delivers advanced control features including configurable analog and digital I/O, function block programming, feedback compatibility, and diagnostics—making it suitable for industrial motor control, automation, and retrofitting projects.

Key Features

• Four-quadrant control (forward, reverse, regen braking)

• Configurable analog and digital I/O for custom application logic

• Function block programming for logic and sequencing

• Feedback options: encoder, tachogenerator, armature voltage

• Auto-tuning and diagnostic functions for ease of setup

• Removable keypad for local operation and monitoring

• Modular chassis design for panel mounting

Technical Specifications

• Model: 590P-53240020-P00-U4V0

• Input Voltage: 3-phase 220–500 VAC

• Current Rating: 40 A

• Overload Capability: typically 150% for short duration

• Analog Inputs: 5 (programmable, various resolution)

• Analog Outputs: 3 (two configurable)

• Digital Inputs: 9 (24 V DC, programmable)

• Digital Outputs: 3 (protected)

• Internal References: +10 V, –10 V, +24 V

• Operating Temperature: up to ~45 °C (frame dependent)

• Mounting: modular panel system

• Protection: requires proper external fusing and enclosure

Applications

• Medium- to heavy-duty DC motor control

• Regenerative applications such as cranes, hoists, and conveyors

• Retrofitting legacy DC systems to modern control

• Integration into automated control systems

• Industrial processes requiring bidirectional motor control and braking

Why Choose Parker 590P-53240020

• High current capacity for more demanding motor loads

• Four-quadrant regeneration improves energy efficiency

• Flexible programming and feedback options for sophisticated control

• Robust industrial design suited for harsh environments

Order Now

The Parker 590P-53240020 DC590+ Speed Controller is available for purchase and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
