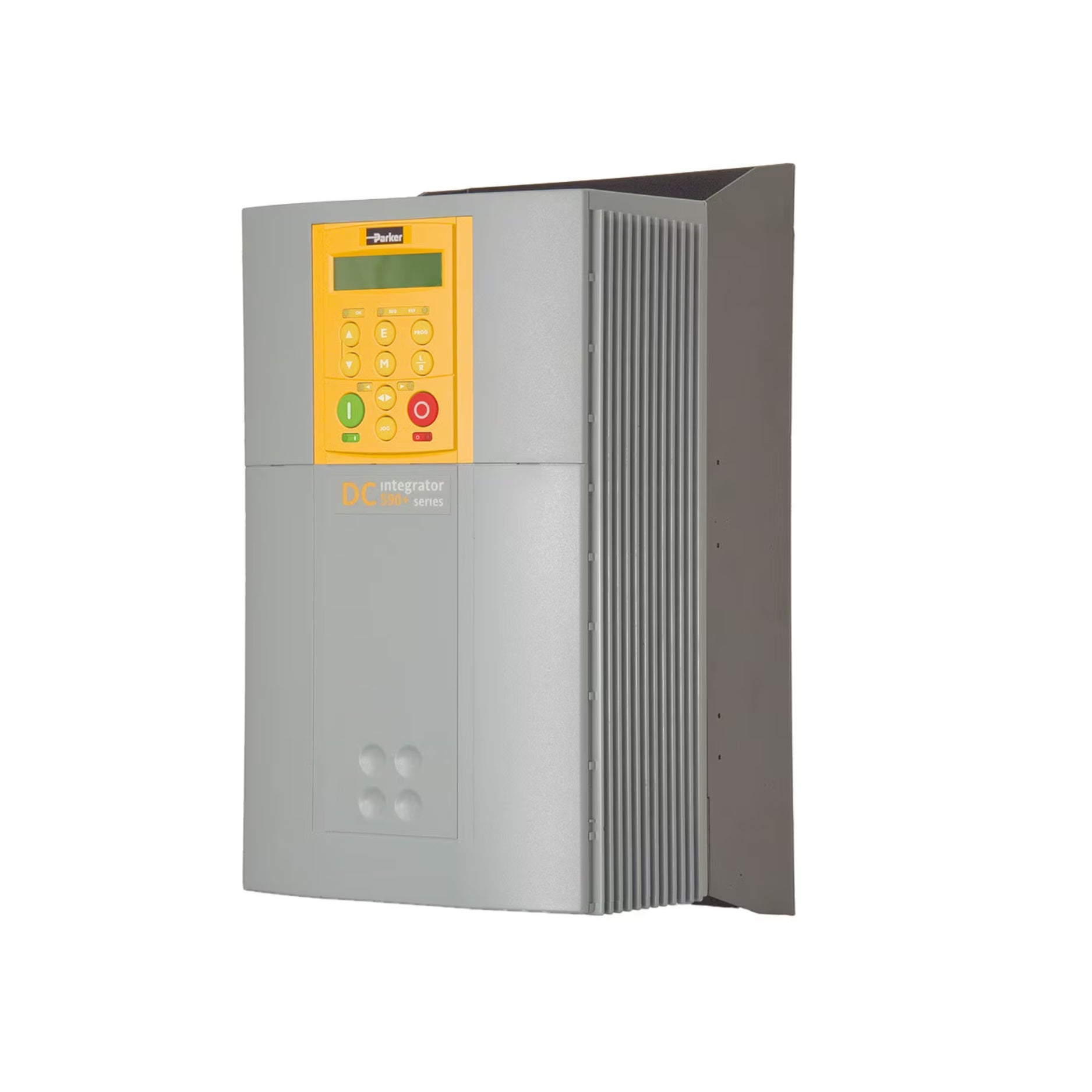

Parker 590P-53215010-P00-U4V0

Parker 590P-53215010 – Overview

The Parker 590P-53215010 belongs to the DC590+ series of advanced digital DC drives. This 4-quadrant regenerative controller provides precise speed and torque control for DC motors, with flexible programming, configurable inputs/outputs, and integrated diagnostic features. Built for demanding industrial environments, it supports motor feedback options and fieldbus communication for seamless automation integration.

Key Features

• Four-quadrant operation (motoring and regenerative braking)

• Advanced function block programming

• Configurable analog and digital I/O

• Feedback options: armature voltage, tachogenerator, or encoder

• Integrated auto-tuning for easy commissioning

• Removable keypad with clear LCD display

• Robust design for industrial panel mounting

Technical Specifications

• Model: 590P-53215010-P00-U4V0

• Input Voltage: 3-phase 220–500 VAC

• Current Rating: 15 A

• Overload Capacity: up to 150% for 30 s, 200% for short durations

• Analog Inputs: 5 (12-bit + sign, plus 4 × 10-bit)

• Analog Outputs: 3 configurable

• Digital Inputs: 9 configurable, 24 V DC

• Digital Outputs: 3 short-circuit protected, 24 V DC

• Reference Supplies: +10 V, –10 V, +24 V onboard

• Frequency Range: suitable for 50/60 Hz supplies

• Operating Temperature: up to 45 °C (frame dependent)

• Mounting: Modular chassis, panel installation

• Safety: Industrial grade with external fusing requirements

Applications

• DC motor control in process and manufacturing industries

• Regenerative systems such as cranes, hoists, and winders

• Energy-efficient retrofit of legacy DC drives

• Precision torque and speed control in heavy industrial equipment

Why Choose Parker 590P-53215010

• Energy-efficient regenerative control

• Flexible programming with function block logic

• Wide compatibility with industrial systems

• Reliable and robust for heavy-duty applications

Order Now

The Parker 590P-53215010 DC590+ Speed Controller is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
