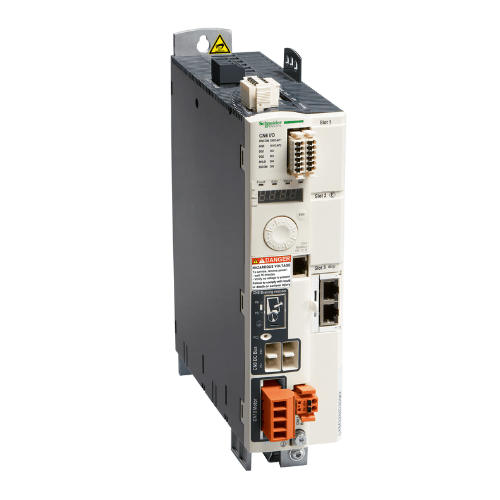

Schneider Electric LXM32MD18N4

Schneider Electric LXM32MD18N4 | Lexium 32 Servo Drive

Overview

The Schneider Electric LXM32MD18N4 is a 1.8 kW servo drive from the Lexium 32 series, built for dynamic and high-precision motion control in industrial automation systems. With its compact design and advanced control capabilities, it supports both asynchronous and synchronous servo motors, ideal for packaging, material handling, and machine tools.

Key Features

• Power Rating: 1.8 kW

• Input Voltage: 3-phase, 380–480V ±10%

• Motor Compatibility: Lexium BSH, BMH, and ILE servo motors

• Control Modes:

  • Torque Control

  • Speed Control

  • Position Control

• Integrated Functions:

  • Safe Torque Off (STO)

  • Advanced diagnostics and autotuning

• Communication Interfaces:

  • CANopen (embedded)

  • Modbus

  • Optional communication modules: EtherCAT, Sercos, EtherNet/IP, Profibus

• Feedback Compatibility:

  • Hiperface, SinCos, Incremental, Resolver

Technical Specifications

• Model: LXM32MD18N4

• Series: Lexium 32

• Nominal Output Power: 1.8 kW

• Nominal Output Current: 4.4 A

• Peak Current: 13.2 A

• Switching Frequency: 4–16 kHz

• Protection Rating: IP20

• Cooling: Integrated fan

• Operating Temperature: 0°C to +40°C (up to +55°C with derating)

• Mounting: Vertical, in enclosure or cabinet

• Dimensions (W x H x D): Approx. 60 mm x 320 mm x 235 mm

• Weight: Approx. 2.5 kg

Applications

• Packaging Machinery

• Conveying Systems

• Textile and Printing Equipment

• Automated Assembly Machines

Why Choose the Schneider Electric LXM32MD18N4?

• High Dynamic Performance in a compact form

• Modular Communication Options

• Flexible Control Modes for demanding motion applications

• Reliable and Efficient for Industrial Use
