Lenze EVS9327-CP

Lenze EVS9327-CP

Overview

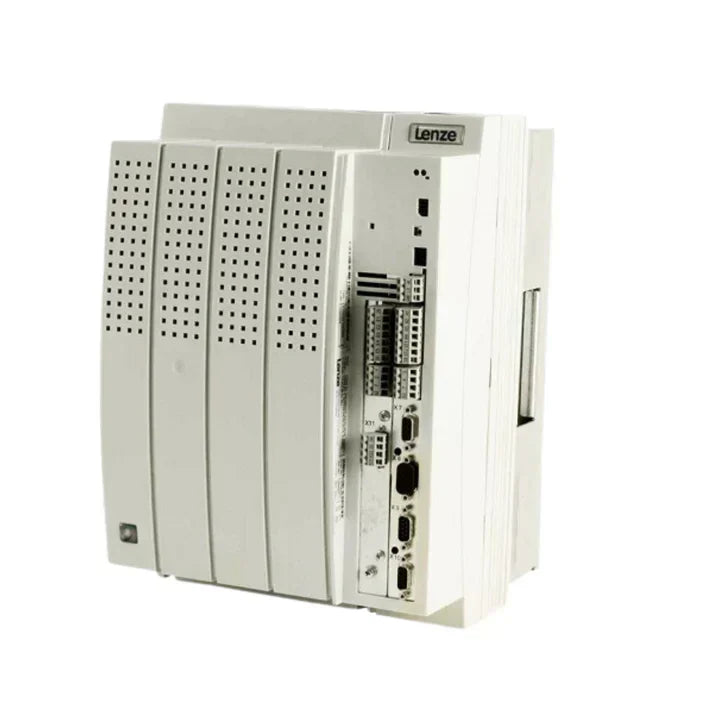

The Lenze EVS9327-CP is a 5.5 kW servo inverter from the 9300 Servo Series, compact standard version. It provides efficient and precise control of motors in speed, torque, and position modes. With flexible encoder support and modular fieldbus expansion, this drive integrates seamlessly into a variety of automation systems, offering reliable performance in a compact footprint.

Key Features

• Rated Power: 5.5 kW (7.5 HP)

• Input Voltage: 3-phase 400 V AC

• Version: Compact standard (CP)

• Control Modes: Position, speed, and torque

• Feedback Support: Resolver and incremental encoders

• Modular communication options (CANopen, Profibus, etc.)

• Integrated fan cooling

• IP20 protection, panel-mountable

Technical Specifications

• Catalog Number: EVS9327-CP

• Input Voltage: 3×400 V AC ±10%

• Output Frequency: 0–599 Hz

• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)

• Protection Class: IP20

• Cooling: Built-in fan

• Certifications: CE, UL, cUL

• Mounting: Control cabinet

• Communication: Expandable via modular fieldbus interfaces

Applications

• Mid-to-high power automation systems

• Robotics, conveyors, and process machines

• OEM machinery with tight panel space

• Encoder-based applications needing accurate control

• Motion systems requiring modular connectivity

Why Choose the EVS9327-CP

• Delivers 5.5 kW of robust servo control

• Compact and reliable for industrial use

• Supports flexible fieldbus integration

• Trusted part of the Lenze 9300 Servo Series

• Ideal for scalable OEM automation solutions

Order Now

The Lenze EVS9327-CP servo inverter is available and ships worldwide.

Return to Lenze 9300 Servo Inverters EVS Series for more options in this range.

Explore our full selection of Lenze industrial automation products, including frequency inverters, servo drives, motors, and control modules for high-performance industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
