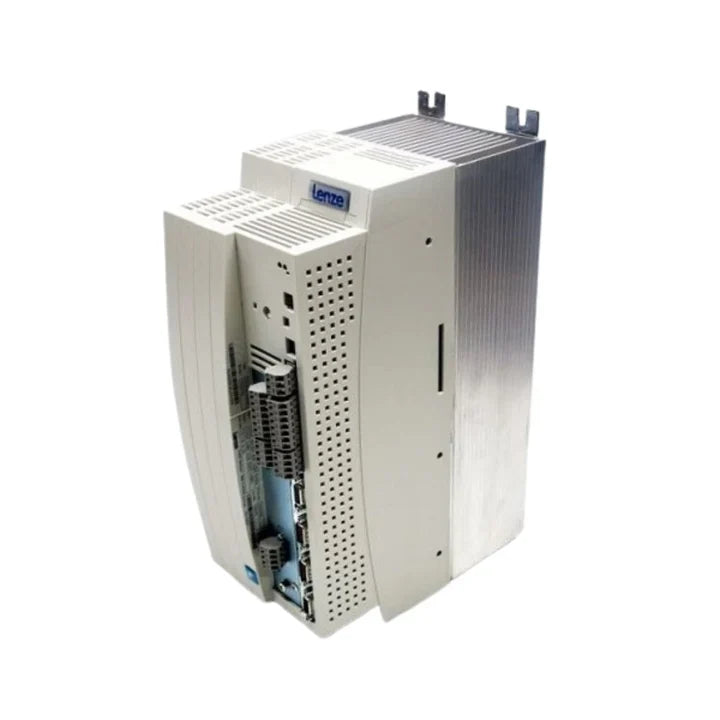

Lenze EVS9325-CPV003

Lenze EVS9325-CPV003

Overview

The Lenze EVS9325-CPV003 is a 4.0 kW servo inverter from the 9300 Series, designed in a compact housing with the integrated V003 application module. It provides powerful and adaptable control for speed, torque, and position applications. With modular communication support and customizable logic, it fits perfectly into automated industrial systems.

Key Features

• Rated Power: 4.0 kW (5.4 HP)

• Input Voltage: 3-phase 400 V AC

• Version: Compact (CP) with Application Module V003

• Control Modes: Position, speed, torque

• Feedback Support: Resolver and incremental encoder

• Communication: CANopen, Profibus, others via modules

• Cooling: Integrated fan

• Protection Class: IP20 (panel mount)

Technical Specifications

• Catalog Number: EVS9325-CPV003

• Output Frequency: 0–599 Hz

• Input Voltage Range: 3×400 V AC ±10%

• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)

• Mounting: Control cabinet

• Communication: Modular fieldbus interface

• Application Module: V003 for custom motion logic

• Certifications: CE, UL, cUL

Applications

• Advanced packaging and processing machinery

• Robotics and conveyor systems

• OEM equipment with tailored automation

• Industrial systems requiring encoder-based control

• Custom motion profiles in compact control panels

Why Choose the EVS9325-CPV003

• 4.0 kW performance in compact design

• Flexible application module V003 for custom logic

• Easy integration with encoder feedback

• Modular connectivity for industrial networks

• Part of Lenze’s proven 9300 servo platform

Order Now

The Lenze EVS9325-CPV003 servo inverter is available and ships worldwide.

Return to Lenze 9300 Servo Inverters EVS Series for more options in this range.

Explore our full selection of Lenze industrial automation products, including frequency inverters, servo drives, motors, and control modules for high-performance industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
