Bosch Rexroth TVD 1.3-08-03

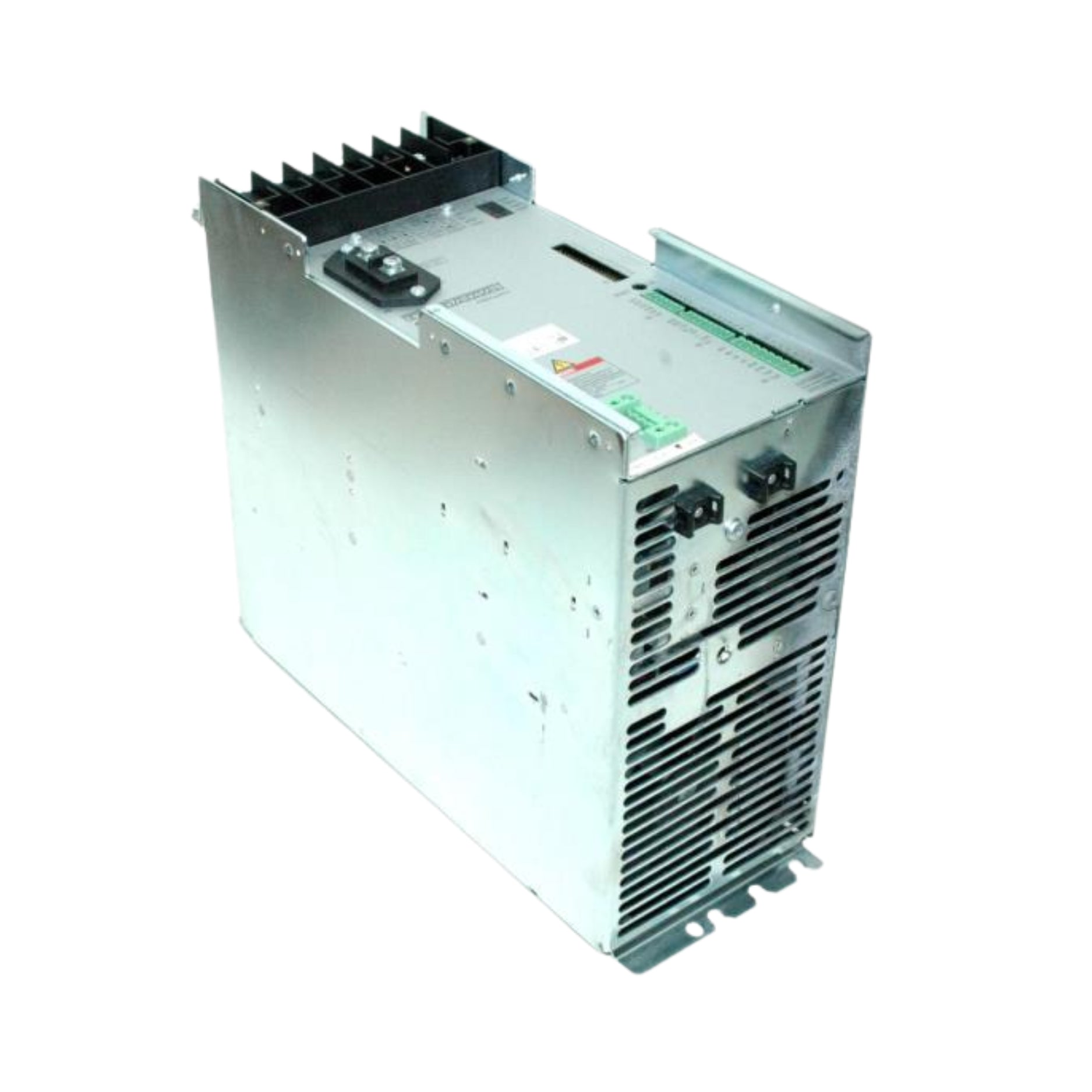

Bosch Rexroth Indramat TVD 1.3-08-03 Power Supply Module

Overview

The Bosch Rexroth Indramat TVD 1.3-08-03 is a reliable power supply module from the TVD Power Supply Modules series (Series 1). It delivers 7.5 kW continuous DC bus power at 320 V, with peak performance reaching 22.5 kW. Designed to operate with a 380–480 V AC input, this unit ensures stable and efficient DC bus voltage supply for industrial automation systems.

Built to Design Version 3, the TVD 1.3-08-03 integrates 0.5 kW bleeder power for energy dissipation and maintains 75 W basic loss during operation. Its compact design, IP10 protection rating, and weight of 10.5 kg make it suitable for cabinet installation, ensuring dependable performance in demanding environments.

Key Features

• Continuous DC bus power: 7.5 kW

• Peak DC bus power: 22.5 kW

• Input voltage: 380–480 V AC

• Nominal DC bus voltage: 320 V

• Bleeder continuous power: 0.5 kW

• Basic loss: 75 W

• Compact design with IP10 protection

• Weight: 10.5 kg

Technical Specifications

• Series: 1

• Design Version: 3

• Product Type: TVD Power Supply Module

• DC Bus Continuous Power: 7.5 kW

• Peak DC Bus Power: 22.5 kW

• DC Bus Voltage: 320 V

• Input Voltage: 380–480 V AC

• Bleeder Continuous Power: 0.5 kW

• Basic Loss: 75 W

• Protection Rating: IP10

• Weight: 10.5 kg

• Manufacturer: Bosch Rexroth

Applications

• CNC machine tools

• Multi-axis servo drive systems

• Industrial automation requiring stable DC bus supply

• Packaging and assembly machinery

Order Now

The Bosch Rexroth Indramat TVD 1.3-08-03 is available for fast worldwide shipping.

Return to the Indramat Power Supplies collection to explore our full range of supply units, filter modules, bleeder modules, and UPS systems.

Explore the Bosch Rexroth Industrial Automation main category to find drives, motors, amplifiers, and complete automation solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
