Bosch Rexroth HDS03.2-W100N-HS12-01-FW

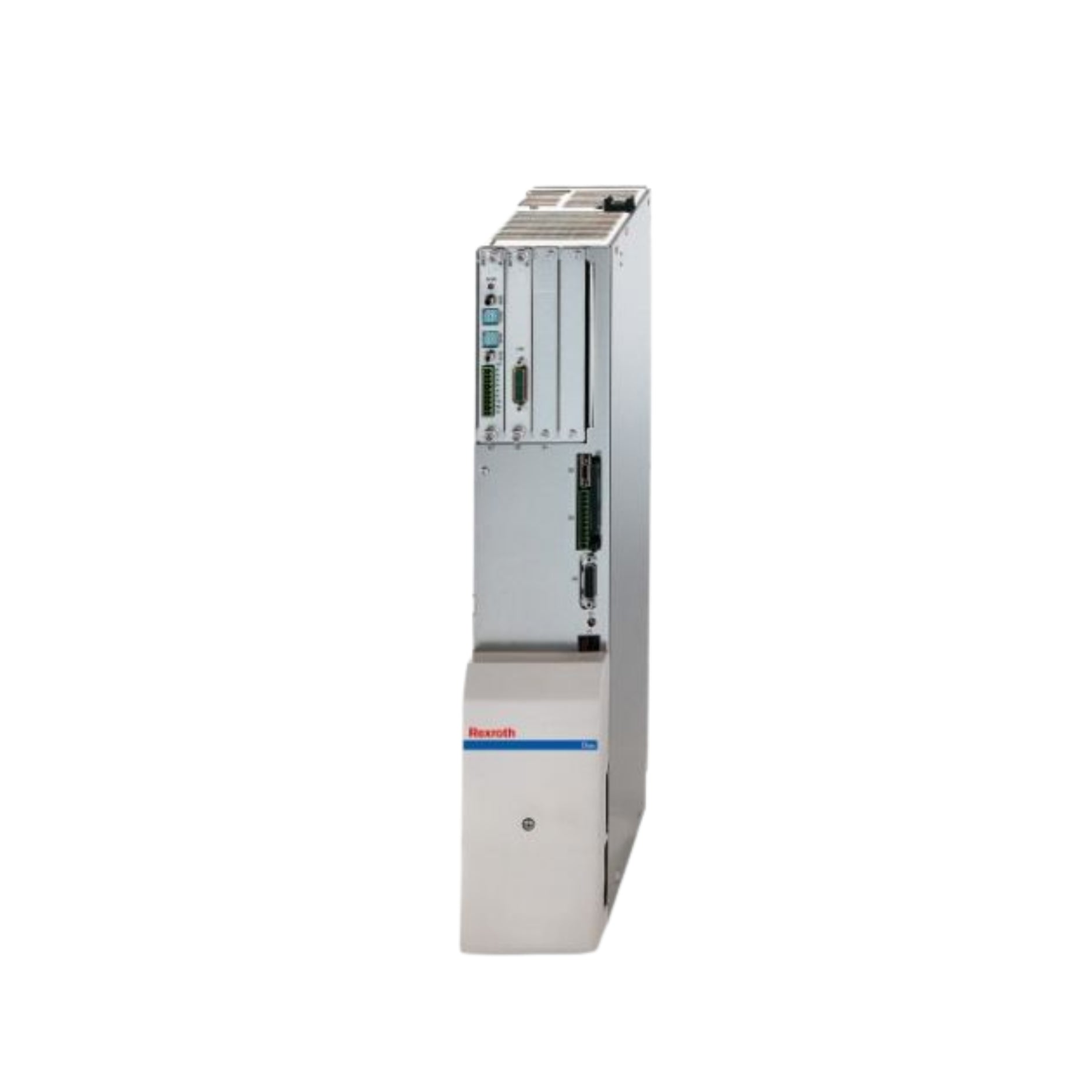

Bosch Rexroth Indramat HDS03.2-W100N-HS12-01-FW Drive Controller

Overview

The Bosch Rexroth Indramat HDS03.2-W100N-HS12-01-FW is a high-performance drive controller from the HDS Drive Controllers series, part of the DIAX04 family in the 03 line. It provides a rated current of 100 A and continuous operation at 50 A (4 kHz) or 35 A (8 kHz), ensuring stable performance across varied applications.

Cooling is managed by a built-in internal air blower, with thermal efficiency supported by 280 W power loss handling and 25 W consumption for signal processing. This controller is built to Insulation Class C standards and offers IP10 protection, safeguarding against industrial conditions. With an operational tolerance from -30 °C to +85 °C and a compact 11 kg weight, it is engineered for durability and reliability.

Key Features

• Rated current: 100 A

• Continuous current: 50 A at 4 kHz / 35 A at 8 kHz

• Part of DIAX04 family, HDS line 03

• SERCOS communication interface

• Built-in internal air blower cooling

• Insulation Class C for industrial reliability

• Power loss: 280 W

• Signal processing consumption: 25 W

• Operating/storage range: -30 °C to +85 °C

• Compact, 11 kg unit with IP10 protection

Technical Specifications

• Series: HDS Drive Controllers

• Line: 03

• Version: 2

• Controller Family: DIAX04

• Product Type: HDS Drive Controller

• Rated Current: 100 A

• Continuous Current at 4 kHz: 50 A

• Continuous Current at 8 kHz: 35 A

• Cooling Method: Built-in internal air blower

• Command Communication Interface: SERCOS

• Insulation Class: C

• Power Loss: 280 W

• Power Consumption (Signal Processing): 25 W

• Protection Class: IP10

• Storage & Transport Temperature: -30 to +85 °C

• Weight: 11 kg

• Manufacturer: Bosch Rexroth Indramat

Applications

• CNC machine tools

• Robotics and handling systems

• Packaging and automation lines

• Multi-axis servo drive installations

Order Now

The Bosch Rexroth Indramat HDS03.2-W100N-HS12-01-FW is available for fast worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
