Bosch Rexroth HDS02.2-W040N-HS12-01-FW

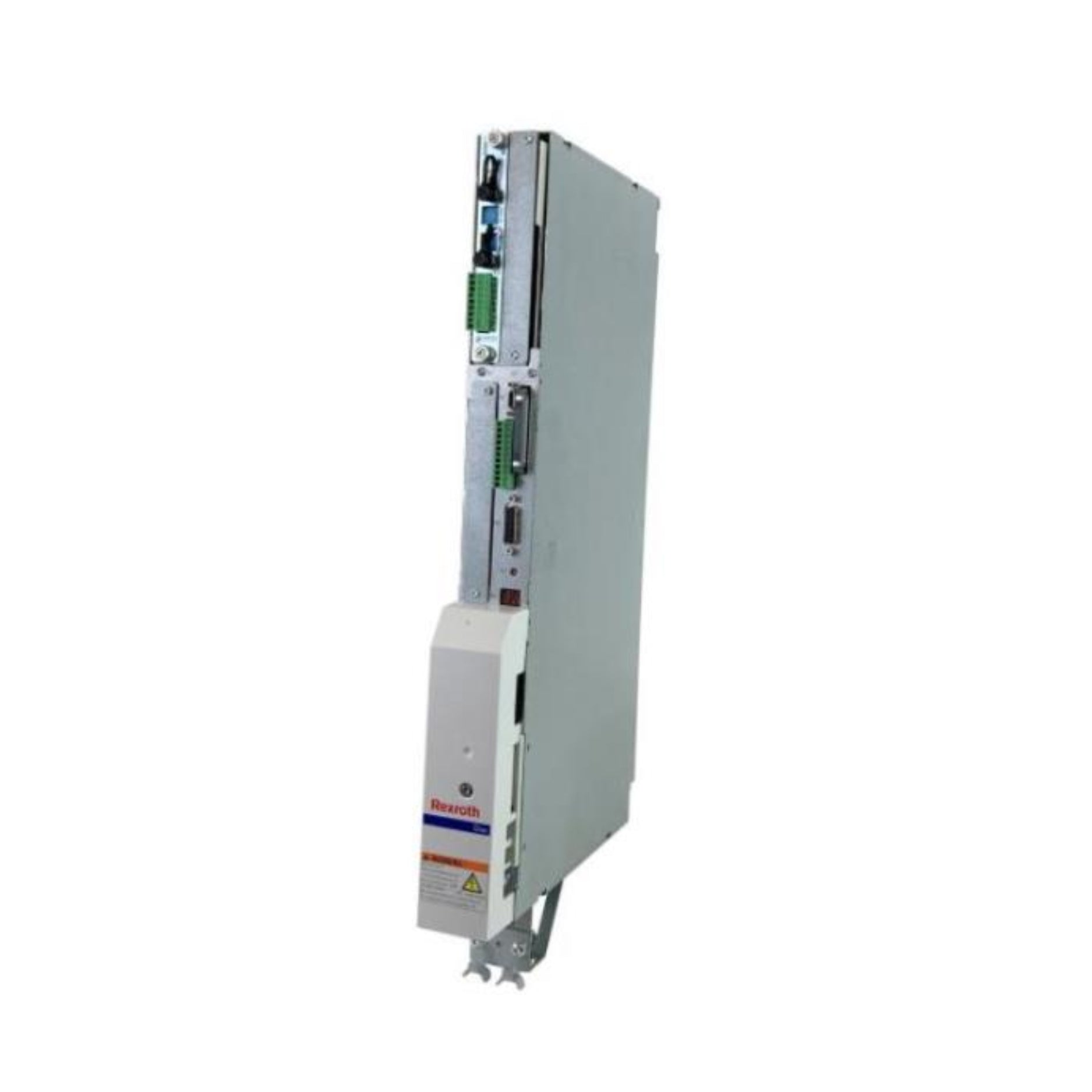

Bosch Rexroth Indramat HDS02.2-W040N-HS12-01-FW Drive Controller

Overview

The Bosch Rexroth Indramat HDS02.2-W040N-HS12-01-FW is a high-performance servo drive controller from the HDS Drive Controllers series, designed for precise industrial automation tasks. Operating as part of the DIAX04 family, it integrates seamlessly with Rexroth’s servo systems and offers robust control with SERCOS communication for reliable and deterministic networking.

Delivering a rated current of 40 A and supporting up to 1000 Hz maximum output frequency, this controller is engineered for demanding applications. It operates with a rated input voltage of 530–670 V, uses an internal air blower cooling system, and achieves efficient power management with a 20 W power consumption rating. Weighing just 6.5 kg, it provides a compact yet powerful solution for multi-axis drive environments.

Key Features

• Part of the HDS Drive Controllers series

• Member of the DIAX04 family

• SERCOS communication interface

• Rated current: 40 A

• Maximum output frequency: 1000 Hz

• Rated input voltage: 530–670 V

• Maximum output voltage: 500 V

• Built-in internal air blower cooling

• Compact weight: 6.5 kg

Technical Specifications

• Series: HDS

• Line: 02

• Version: 2

• Product Type: HDS Drive Controller

• Rated Current: 40 A

• Rated Input Voltage: 530–670 V

• Rated Control Voltage Input: 26 V

• Maximum Output Voltage: 500 V

• Maximum Output Frequency: 1000 Hz

• Rated Power Consumption: 20 W

• Cooling Method: Built-in internal air blower

• Controller Family: DIAX04

• Communication: SERCOS

• Other Versions: None

• Weight: 6.5 kg

• Manufacturer: Bosch Rexroth Indramat

Applications

• CNC machinery

• Multi-axis servo control

• Robotics and automation systems

• Packaging and processing equipment
