Bosch Rexroth DKC02.3-016-7-FW

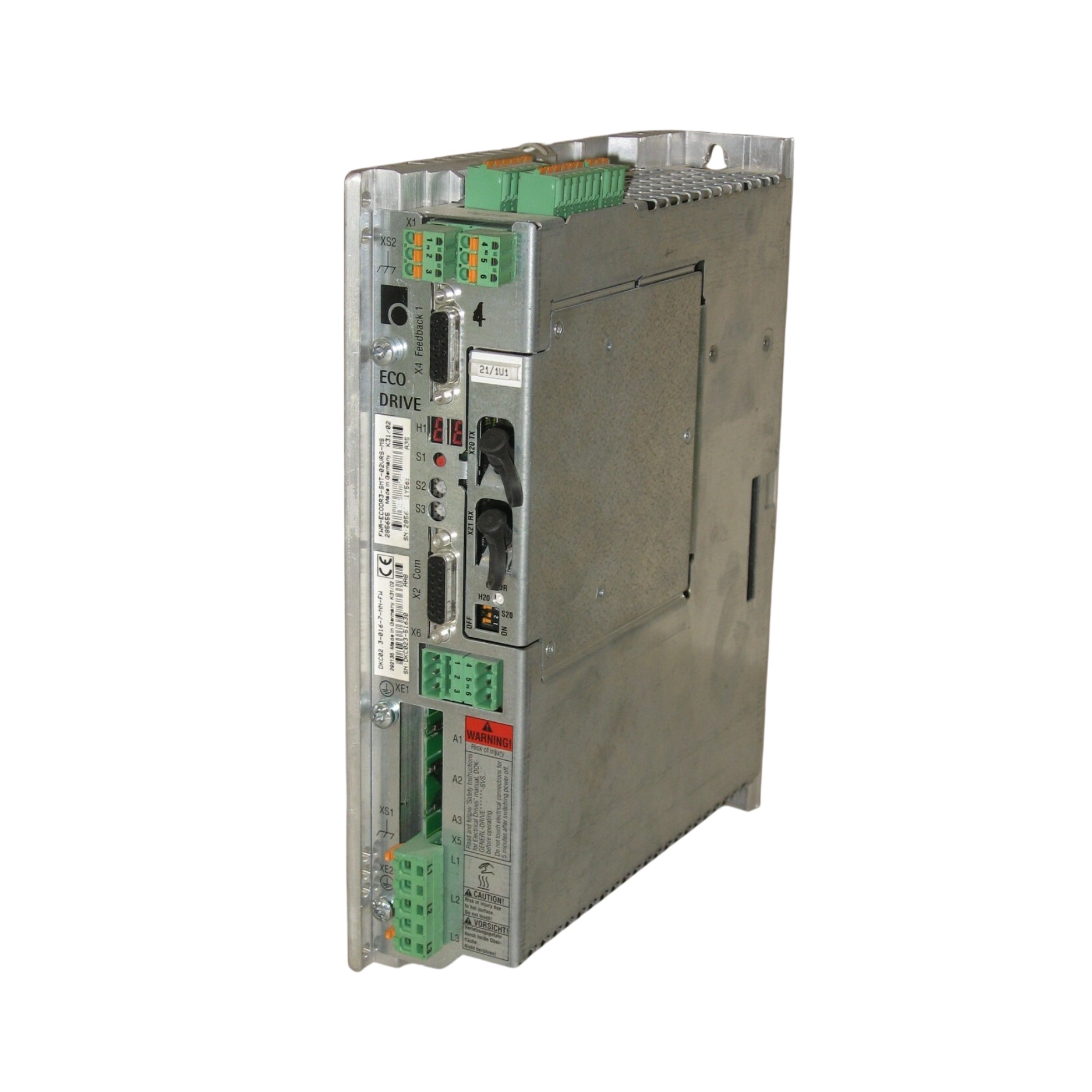

Bosch Rexroth Indramat DKC02.3-016-7-FW Drive Controller

Overview

The Bosch Rexroth Indramat DKC02.3-016-7-FW is a high-performance servo drive controller from the DKC Drive Controllers series, designed to deliver precise AC servo amplification for industrial automation. With a 700 V DC-bus nominal voltage and a continuous rated output of 16 A, it ensures reliable and efficient operation in demanding manufacturing environments.

Weighing just 1.8 kg, the compact chassis provides high power density and easy installation in confined spaces. Featuring Design Version 3, it incorporates the latest enhancements in drive technology. Its 24 VAC control voltage streamlines integration into standard automation frameworks, while firmware (ordered separately) ensures customizable features and future scalability.

Key Features

• Member of the DKC Drive Controllers series

• Rated current: 16 A at 700 V DC-bus

• Input voltage range: 200–230 V AC (three-phase)

• Output frequency: Up to 333.33 Hz

• Short circuit current rating: 5000 W

• Control voltage: 24 VAC

• Design Version 3 with updated control technology

• Lightweight design (1.8 kg) for flexible installation

• Operates in up to 95% relative humidity, non-condensing

• Suitable for multi-axis and modular automation systems

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat

• Series: DKC Drive Controllers

• Model: DKC02.3-016-7-FW

• Design Version: 3

• Product Type: Drive Controller

• DC-Bus Nominal Voltage: 700 V

• Rated Current: 16 A

• Input Voltage: 200–230 V AC

• Input Frequency Range: 50–60 Hz

• Number of Output Phases: 3

• Maximum Output Frequency: 333.33 Hz

• Control Voltage: 24 VAC

• Short Circuit Current Rating: 5000 W

• Maximum Installation Elevation: 1000 MSL

• Maximum Relative Humidity: 95% (non-condensing)

• Weight: 1.8 kg

• Firmware: Ordered separately

Applications

• CNC machining centers

• Packaging and labeling machinery

• Pick-and-place robotics

• Conveyor and material handling systems

• Multi-axis industrial automation setups

Why Choose the DKC02.3-016-7-FW

• Compact and lightweight for easy integration

• Reliable performance with overload and fault protection

• Flexible configuration with firmware ordered separately

• Designed for precision motion control across diverse industries

Order Now

The Bosch Rexroth Indramat DKC02.3-016-7-FW Drive Controller is available for immediate order with fast worldwide shipping.
