Bosch Rexroth BZM01.3-01-07

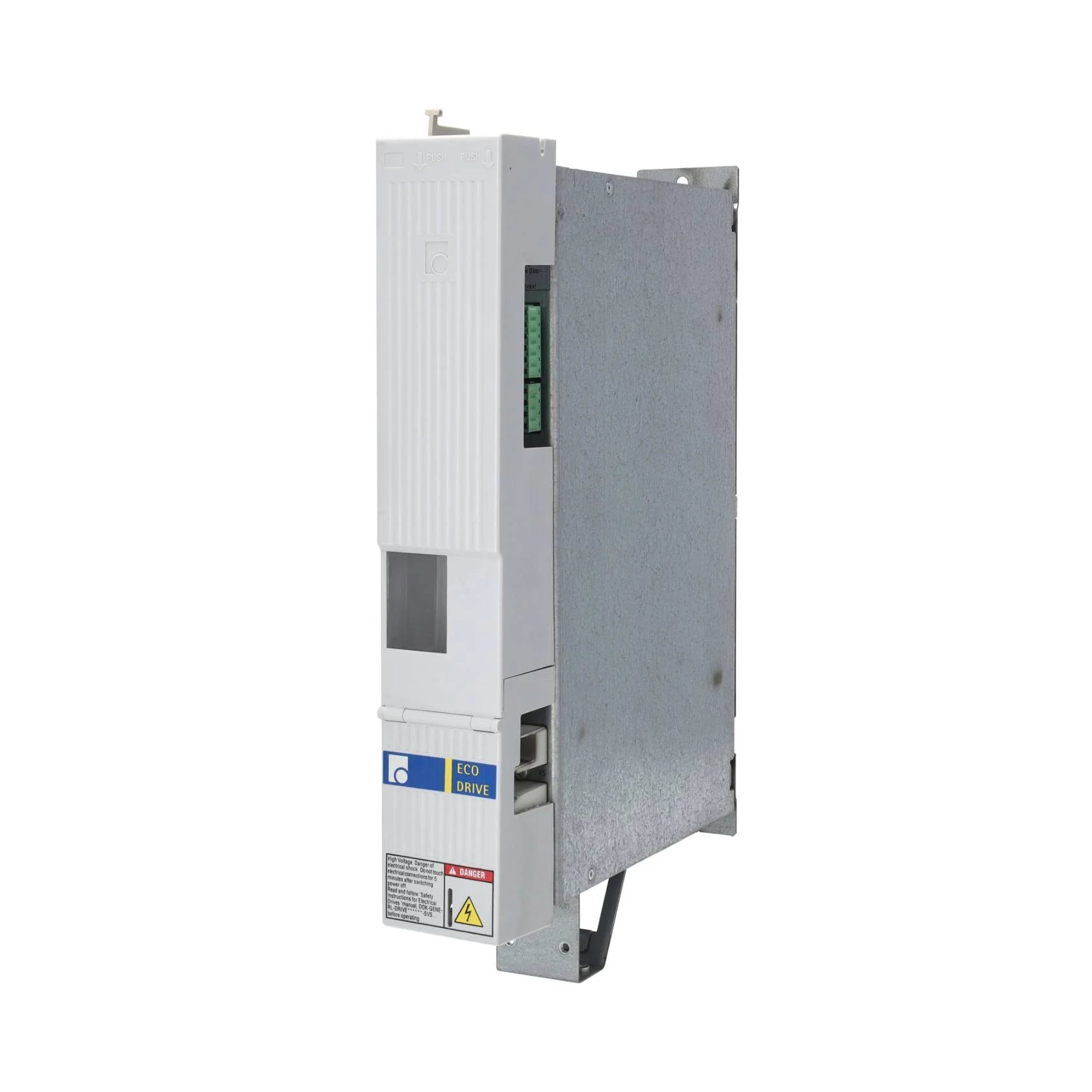

Bosch Rexroth Indramat BZM01.3-01-07 Auxiliary Bleeder

Overview

The Bosch Rexroth Indramat BZM01.3-01-07 is a high-performance Auxiliary Bleeder module from the BZM Series, engineered to provide reliable energy dissipation in automation systems. Designed with a DC-bus nominal voltage of 700 V, it delivers a continuous bleeder output of 1.0 kW and supports peak loads up to 40 kW, ensuring stable and safe operation during regenerative braking or excess energy conditions.

Equipped with internal air blower cooling, the module maintains optimal thermal management under heavy-duty cycles. Its 24 V DC ±20% control voltage range ensures compatibility with industry-standard power supplies, while IP20 protection class safeguards against accidental contact and dust ingress. With a weight of 7 kg, it balances robust performance with straightforward cabinet integration.

Key Features

• BZM Auxiliary Bleeder Series for energy dissipation

• Nominal output: 1.0 kW at 700 V DC-bus

• Continuous output: 1.0 kW with peak bleeder power of 40 kW

• Internal air blower cooling for stable performance

• Control voltage: 24 V DC ±20%

• Input voltage: 19.2 … 28.8 V

• Current rating: 40 A

• Protection class: IP20 for safe integration

• Weight: 7 kg

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat

• Product Type: BZM Auxiliary Bleeder

• Model: BZM01.3-01-07

• Series Version: 1

• Design Version: 3

• DC-Bus Nominal Voltage: 700 V

• Nominal Output: 1.0 kW

• Continuous Bleeder Output: 1.0 kW

• Peak Bleeder Power: 40 kW

• Control Voltage (X4/1 – X4/4): DC 24 V ±20%

• Input Voltage: 19.2 … 28.8 V

• Current Rating: 40 A

• Current Consumption (24 V connection): 90 mA

• Nominal DC Bus Capacitance: 0.33 mF

• Cooling: Internal Air Blower

• Insulation Resistance: >15 MΩ

• Protection Class: IP20

• Weight: 7 kg

• Maximum Feedback Energy: 40 kW

Applications

• CNC machining centers with regenerative braking

• High-speed packaging machinery

• Robotics with rapid deceleration requirements

• Conveyor and automated transport systems

• Industrial automation requiring energy dissipation

Why Choose the BZM01.3-01-07

• Handles continuous and peak energy feedback reliably

• Built-in air blower cooling for long service life

• Compact 7 kg design fits control cabinets easily

• Industry-standard 24 V DC control voltage

• Ensures safe and efficient energy management in automation systems

Order Now

The Bosch Rexroth Indramat BZM01.3-01-07 Auxiliary Bleeder is available with fast worldwide shipping and expert customer support.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
