Beckhoff AX5112-0000-0202

Beckhoff AX5112-0000-0202

Overview

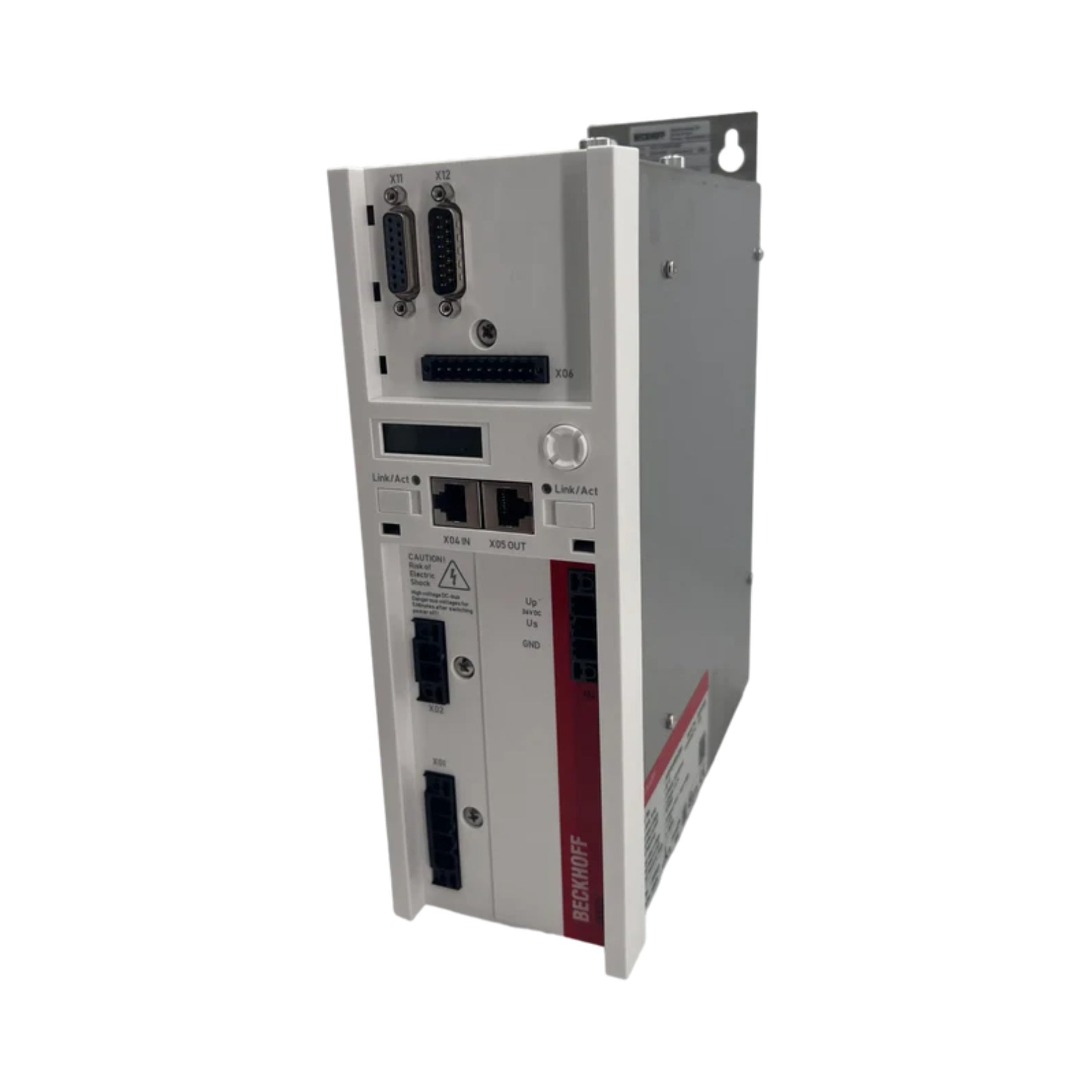

The Beckhoff AX5112-0000-0202 is a 1-channel digital compact servo drive from the AX5000 series, designed for high-performance motion control applications. It provides continuous currents up to 12 A, with EtherCAT-based communication for real-time synchronization. The AX5112 integrates advanced safety features and diagnostic functions, offering precise and reliable control of demanding servo motor systems.

Key Features

• 1-channel digital compact servo drive

• Continuous current: 12 A

• Integrated EtherCAT interface for real-time motion control

• Safe Torque Off (STO) safety function included

• Compact design for cabinet installation

• Advanced diagnostic and monitoring features

• Optimized for dynamic servo applications

Technical Specifications

• Part Number: AX5112-0000-0202

• Manufacturer: Beckhoff

• Series: AX5000 Digital Compact Servo Drives

• Channels: 1

• Continuous Current: 12 A

• Supply Voltage: 3 × 400–480 V AC

• Communication: EtherCAT

• Integrated Safety: STO (Safe Torque Off)

• Cooling: Forced ventilation

• Mounting: Control cabinet installation

• Operating Temperature: 0 °C to +50 °C

Applications

• CNC machinery and robotics

• Packaging and printing machines

• Material handling and logistics systems

• Multi-axis motion systems with high dynamics

• Industrial automation requiring precise servo control

Why Choose the AX5112-0000-0202

• Provides robust 12 A continuous current for demanding motion applications

• EtherCAT ensures fast and synchronized real-time communication

• Compact design saves cabinet space

• Integrated safety features for secure operation

• Proven Beckhoff technology ensures reliability and performance

Order Now

The Beckhoff AX5112-0000-0202 digital compact servo drive is available and ships worldwide.
