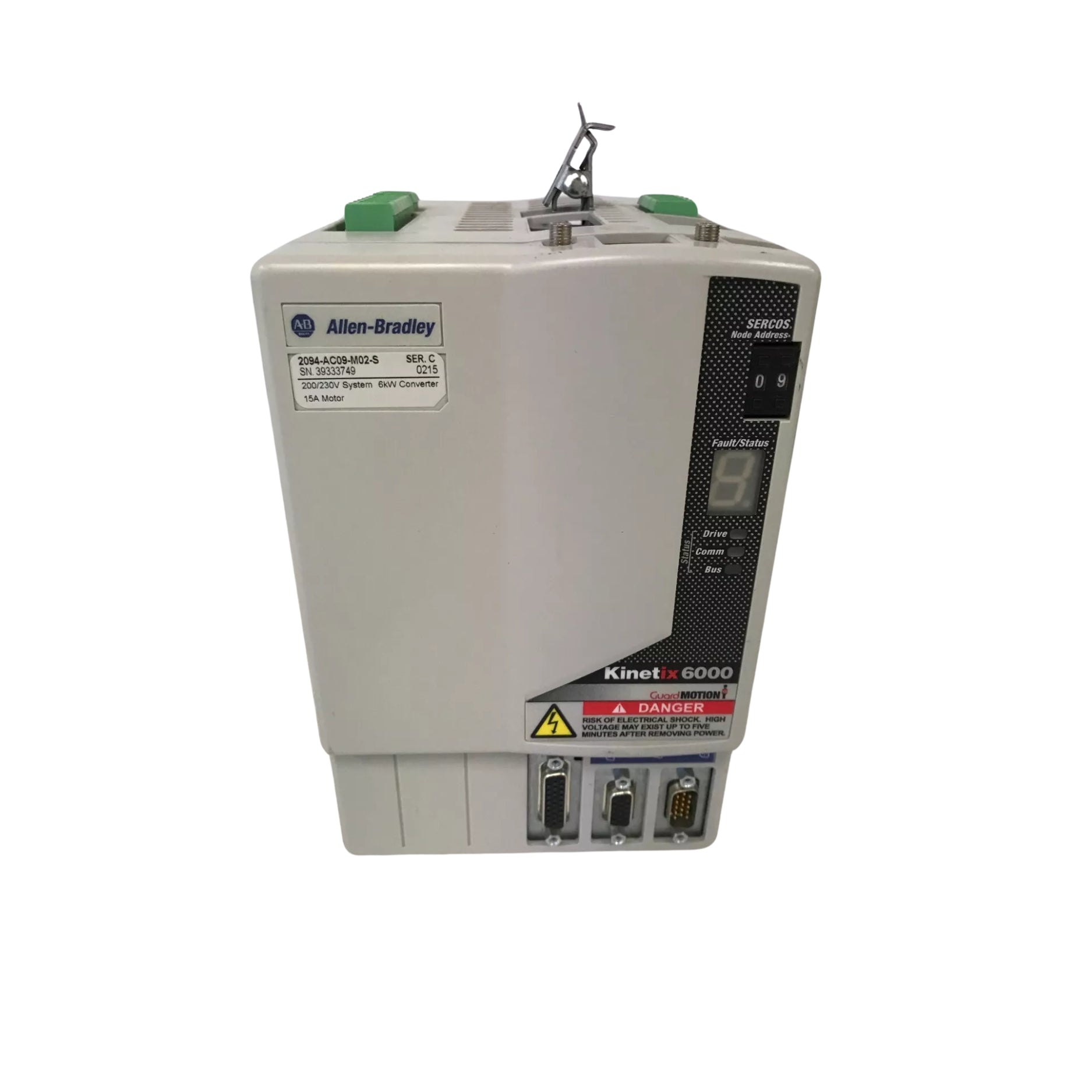

Allen-Bradley 2094-AC09-M02-S Kinetix 6000 Integrated Axis Module

Product Description:

The Allen-Bradley 2094-AC09-M02-S is an Integrated Axis Module (IAM) designed for use in the Kinetix 6000 multi-axis servo drive system.⁴ This module provided integrated motion control functionality, simplifying wiring, programming, and diagnostics. It was designed to enhance system performance and reduce engineering and installation time for demanding motion applications.

Important Notice: Discontinuation

Rockwell Automation has announced the discontinuation of the Kinetix 6000 Integrated Axis Module, including the 2094-AC09-M02-S, as of December 31, 2023.⁵ This means that new units are no longer available for sale from the manufacturer.

Key Features and Specifications:

• Integrated Axis Control: Provided integrated motion control functions.
• Multi-Axis Capability: Designed for use in multi-axis servo systems.⁶
• Simplified Wiring and Programming: Aimed to streamline system integration.
• Diagnostics: Offered diagnostic features for troubleshooting.

Technical Specifications:

• Catalog Number: 2094-AC09-M02-S

Applications (for informational purposes only):

• High-performance motion control applications.
• Multi-axis coordinated motion.
• Applications requiring precise positioning and speed control.

Benefits (for informational purposes only):

• Improved System Performance: Designed to enhance motion control performance.
• Simplified Integration: Aimed to reduce engineering and installation time.

DD Parts Solution and Discontinued Products:

While the 2094-AC09-M02-S is discontinued, DD Parts Solution may be able to assist you in the following ways:

• Support for Existing Systems: We can help you find compatible replacement parts or provide support for maintaining your existing Kinetix 6000 system.
• Alternative Solutions: We can offer guidance on migrating to newer Rockwell Automation motion control platforms and help you select appropriate replacement products.
• Potential Availability of Used or Refurbished Units: Depending on availability, we may have used or refurbished 2094-AC09-M02-S modules in stock. Contact us for current availability.
