Allen-Bradley 2093-AC05-MP1

Allen-Bradley 2093-AC05-MP1 | High-Performance Integrated Axis Module for Kinetix 2000 Systems

Overview

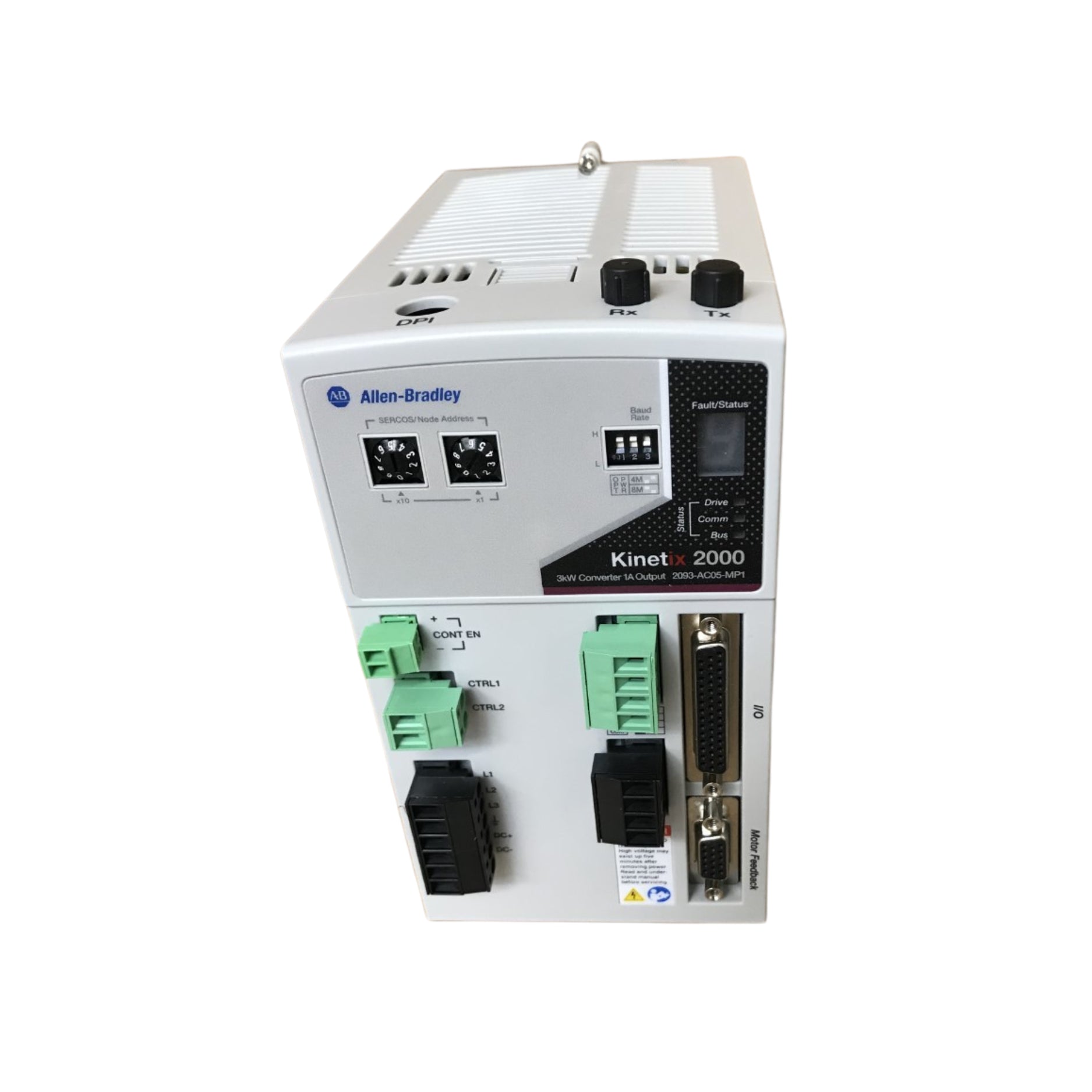

The Allen-Bradley 2093-AC05-MP1 is an Integrated Axis Module (IAM) designed for use with the Kinetix 2000 multi-axis servo drive system. Operating at 230V AC, this module delivers a continuous output power of 3 kW, making it ideal for applications requiring precise and efficient motion control.

Key Features

• Integrated Converter and Inverter: Combines both power conversion and inversion functions within a single module, streamlining system architecture.

• Power Output: Provides 3 kW continuous output power, suitable for demanding motion control tasks.

• Input Voltage Range: Operates within a 170–264V AC input range, accommodating standard industrial power supplies.

• Compact Design: Facilitates space-saving installations within control cabinets.

• Compatibility: Seamlessly integrates with other Kinetix 2000 components, including axis modules and power rails, to create a scalable multi-axis system.

Technical Specifications

• Model Number: 2093-AC05-MP1

• Input Voltage: 170–264V AC

• Continuous Output Power: 3 kW

• Continuous Output Current: 9.67 A

• Peak Output Current: 19.34 A (for up to 250 ms)

• Internal Shunt Resistor: 50 Ω

• Efficiency: 95%

• Control Power Requirements: 170–264V AC single-phase, 1.25 A nominal

• Mounting: Compatible with Kinetix 2000 power rails

• Operating Temperature Range: 0°C to 50°C

• Certifications: CE, c-UL-us

Applications

• Packaging Machinery: Provides precise motion control for packaging lines, ensuring high-speed and accurate operations.

• Material Handling Systems: Enhances the performance of conveyors and automated storage systems through reliable motion control.

• Assembly Automation: Supports complex assembly processes with coordinated multi-axis movements.

• Printing Equipment: Delivers accurate control for printing presses, maintaining registration and quality.

Why Choose Allen-Bradley 2093-AC05-MP1?

• Integrated Solution: Simplifies system design by combining converter and inverter functions, reducing component count and installation complexity.

• Scalable Architecture: Easily expands to accommodate additional axes by integrating with other Kinetix 2000 modules.

• High Efficiency: Operates at 95% efficiency, minimizing energy consumption and heat generation.

• Reliable Performance: Designed to meet rigorous industrial standards, ensuring dependable operation in demanding environments.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Allen-Bradley servo motors, controllers, and other Kinetix 2000 components to complete your motion control system.
