Delta DOP-B05S111 | 5.6" HMI | 320x234 Resolution | 24V DC | DOP-B Series

Delta DOP-B05S111 | 5.6-Inch HMI – 320x234 Resolution, 24V DC Input, DOP-B Series

Overview

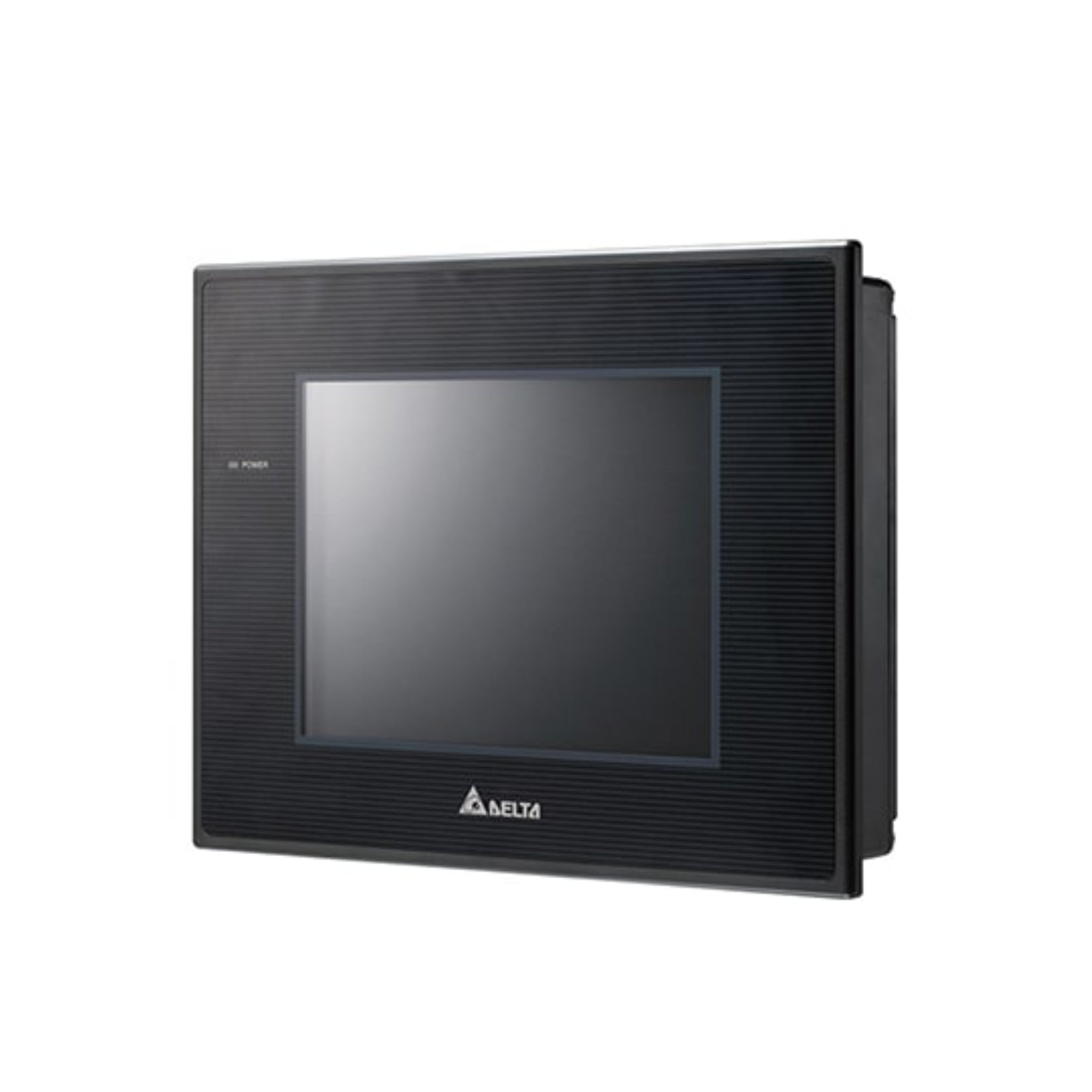

The Delta DOP-B05S111 is a 5.6-inch Human-Machine Interface (HMI) from Delta's DOP-B series, designed to provide intuitive and efficient control for industrial automation systems. Featuring a 320x234 pixel TFT LCD capable of displaying 65,536 colors, this HMI ensures clear and vibrant visuals for operators.

Key Features

• Display: 5.6-inch TFT LCD with 320x234 pixel resolution and 65,536 colors

• Input Voltage: 24V DC

• Communication Ports:

  • COM Ports: 3 sets supporting RS-232, RS-422, and RS-485 communication

  • USB Ports: USB for data transfer and download

  • USB Host: Supports direct connection to USB devices such as disks, printers, and mice

• Mounting: Panel mount with IP65-rated front panel for protection against dust and water

• Orientation: Supports both horizontal and vertical display modes

• Software Compatibility: Configurable using Delta's DOPSoft software, compatible with Windows XP, Vista, and Windows 7 operating systems

Technical Specifications

• Model Number: DOP-B05S111

• Series: DOP-B

• Display Size: 5.6 inches

• Resolution: 320 x 234 pixels

• Colors: 65,536 (16-bit)

• Input Voltage: 24V DC (±15%)

• Power Consumption: Approximately 5.6W

• Communication Interfaces:

  • Serial Ports: 3 (RS-232/RS-422/RS-485)

  • USB Ports: 1 USB client for data transfer; 1 USB host for peripheral connections

• Protection Rating: IP65 (front panel)

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -20°C to 60°C

• Dimensions (W x H x D): Approximately 156 mm x 123 mm x 50 mm

• Weight: Approximately 0.5 kg

Applications

• Industrial Automation: Facilitates user-friendly interfaces for machinery and process control

• Manufacturing: Enables operators to monitor and control production lines efficiently

• Building Management: Integrates with systems for HVAC, lighting, and security control

• Energy Management: Provides interfaces for monitoring and controlling power systems

Why Choose Delta DOP-B05S111?

• User-Friendly Interface: High-quality display with touch functionality enhances operator interaction

• Versatile Communication: Multiple communication ports ensure compatibility with various devices and systems

• Robust Design: IP65-rated front panel offers durability in industrial environments

• Flexible Installation: Supports both horizontal and vertical orientations to suit different panel designs
