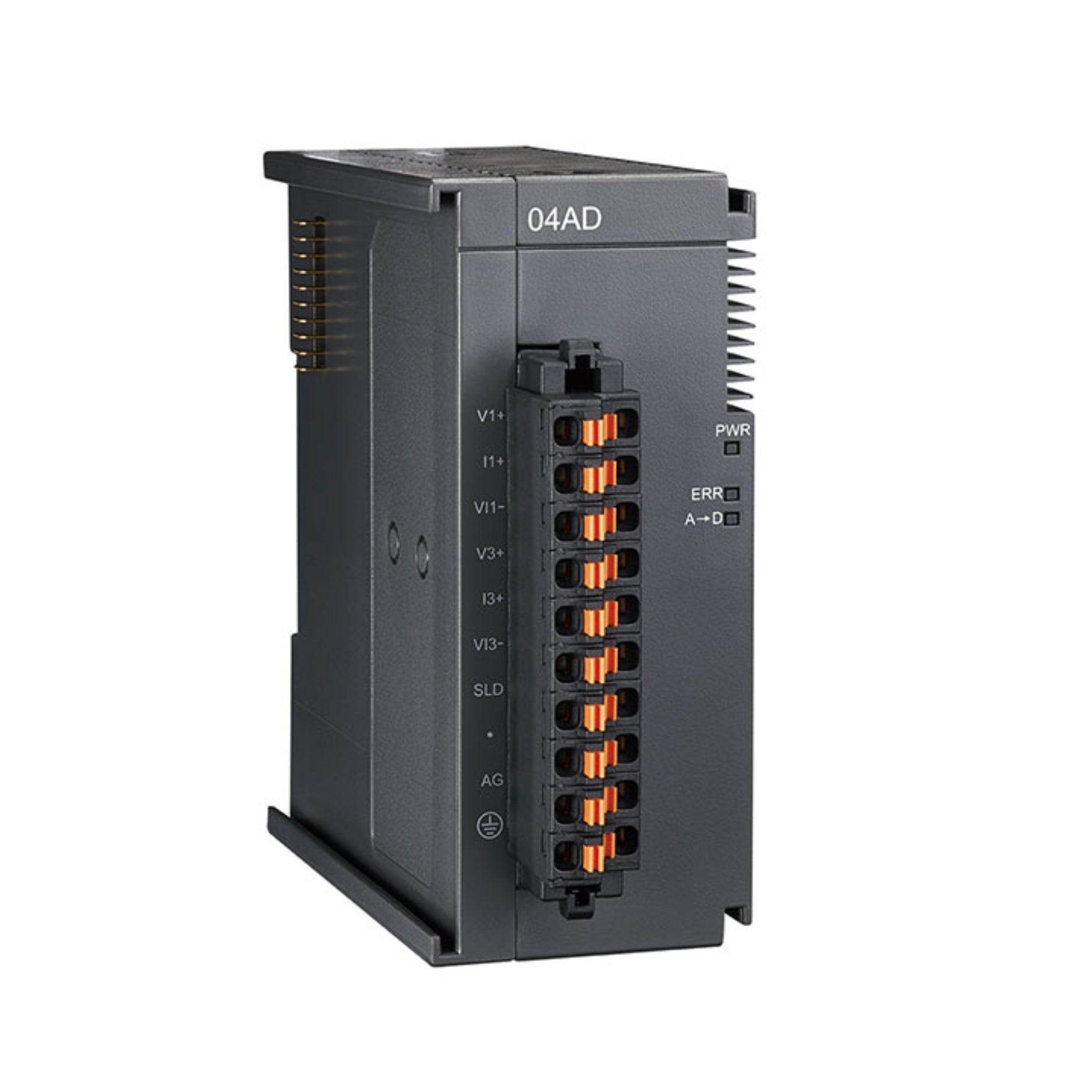

Delta AS04AD-A – 4-Channel Analog Input Module, ±10VDC

Delta AS04AD-A – High-Precision 4-Channel Analog Input Module for AS Series PLCs

Overview

The Delta AS04AD-A is a 4-channel analog input module designed to expand the capabilities of Delta's AS Series Programmable Logic Controllers (PLCs). It supports a variety of input signal types, including ±10VDC and ±20mA, with a 16-bit resolution, ensuring precise data acquisition for industrial automation applications. The module's 2 ms conversion time per channel allows for efficient processing of analog signals.

Key Features

• Input Channels: 4 analog inputs

• Input Signal Types: Supports 05V, 15V, -5V5V, 010V, -10V10V voltage inputs; 020mA, 420mA, -20mA20mA current inputs

• Resolution: 16-bit for high-precision measurements

• Conversion Time: 2 ms per channel

• Compatibility: Seamlessly integrates with Delta AS Series PLCs

• Mounting: DIN rail and chassis mount options

• Operating Temperature: -20°C to 60°C

• Certifications: CE, UL approved

Technical Specifications

• Model: AS04AD-A

• Series: AS Series Expansion

• Input Range: Voltage: ±10VDC; Current: ±20mA

• Resolution: 16-bit

• Conversion Time: 2 ms/channel

• Mounting Type: Chassis Mount, DIN Rail

• Termination Style: Pluggable Screw Terminal

• Operating Temperature: -20°C to 60°C

• Ingress Protection: IP20

• Approval Agency: CE, UL

Applications

• Industrial Automation: Accurate monitoring of analog signals in manufacturing processes

• Process Control: Precise data acquisition for control systems in various industries

• Energy Management: Monitoring and analysis of electrical parameters for efficient energy usage

• Building Automation: Integration into HVAC and other building control systems for enhanced performance

Why Choose the Delta AS04AD-A?

• High Precision: 16-bit resolution ensures accurate analog signal measurement

• Versatile Input Support: Accommodates a wide range of voltage and current inputs

• Fast Processing: 2 ms conversion time per channel for real-time data acquisition

• Seamless Integration: Designed specifically for Delta AS Series PLCs, ensuring compatibility and ease of use

• Reliable Performance: CE and UL certifications attest to the module's quality and safety standards

Order Now

The Delta AS04AD-A analog input module is available for prompt shipping.
