Danfoss 132F0010

Danfoss 132F0010 – FC-051PK75T2E20H3XXCXXXSXXX

Overview

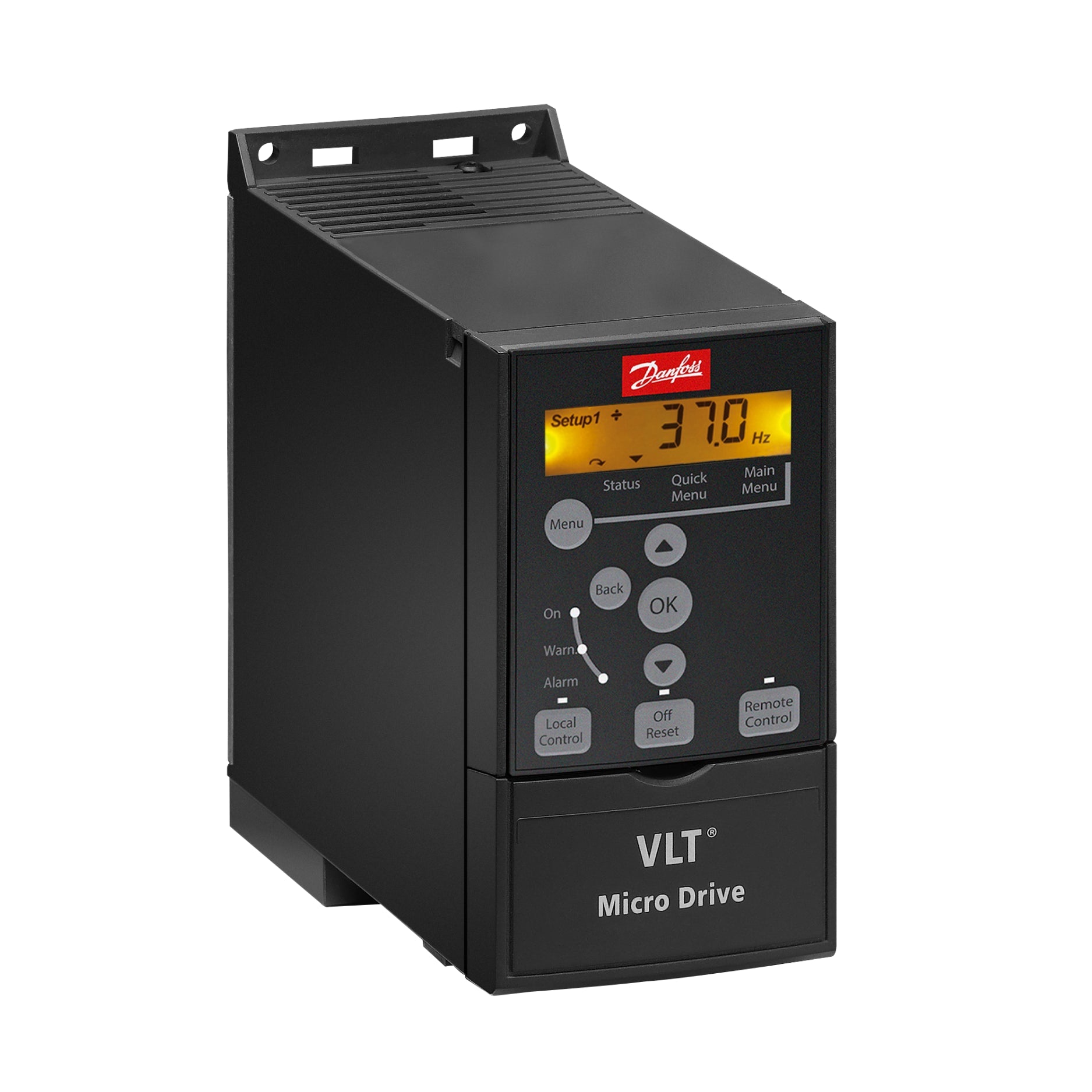

The Danfoss 132F0010 VLT Micro Drive FC 51 is a general-purpose AC drive rated at 0.75 kW (1.0 HP) and designed for 3-phase 200–240 V systems. Compact and robust, it features an IP20 chassis, integrated EMC filter Class A1/B (C1), and a coated PCB for reliable performance in industrial environments.

Key Features

• Motor Power: 0.75 kW (1.0 HP)

• Input Voltage: 3-phase 200–240 V AC

• Output Voltage: 3-phase 0–240 V

• Control Modes: V/f, VVC+, sensorless vector

• EMC Filter: Class A1/B (C1)

• IP20 chassis enclosure

• Coated PCB for added durability

• Frame Size: M1

• RoHS-compliant

Technical Specifications

• Part Number: 132F0010 / FC-051PK75T2E20H3XXCXXXSXXX

• Frame Size: M1

• Enclosure: IP20 (Chassis mount)

• Input Phase: 3-phase

• Output Frequency: up to 400 Hz

• Brake Chopper: Not included

• Local Control Panel: Not included

• Communication: RS485 (Modbus RTU, FC Protocol)

• Ambient Temperature: –10 °C to +50 °C

• Storage Temperature: –25 °C to +65 °C

• Compliance: RoHS Directive

Applications

• Pumps and fans

• Conveyors and packaging lines

• Mixers and dosing machines

• HVAC and general automation

Why Choose the Danfoss 132F0010

• Compact and reliable motor control up to 0.75 kW

• Enhanced durability with coated PCB

• EMC compliance for industrial environments

• Easy integration into control panels

Order Now

The Danfoss 132F0010 VLT Micro Drive FC 51 is available and ships worldwide.

Return to the Danfoss VLT Micro Drive FC 51.

Explore the full range of Danfoss Variable Frequency Drives (VFD) for compact, reliable, and energy-efficient motor control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
