Danfoss 131L9864

Danfoss 131L9864 – FC-101P2K2T4E20H4XXCXXXSXXXXAXBXCXXXXDX

Overview

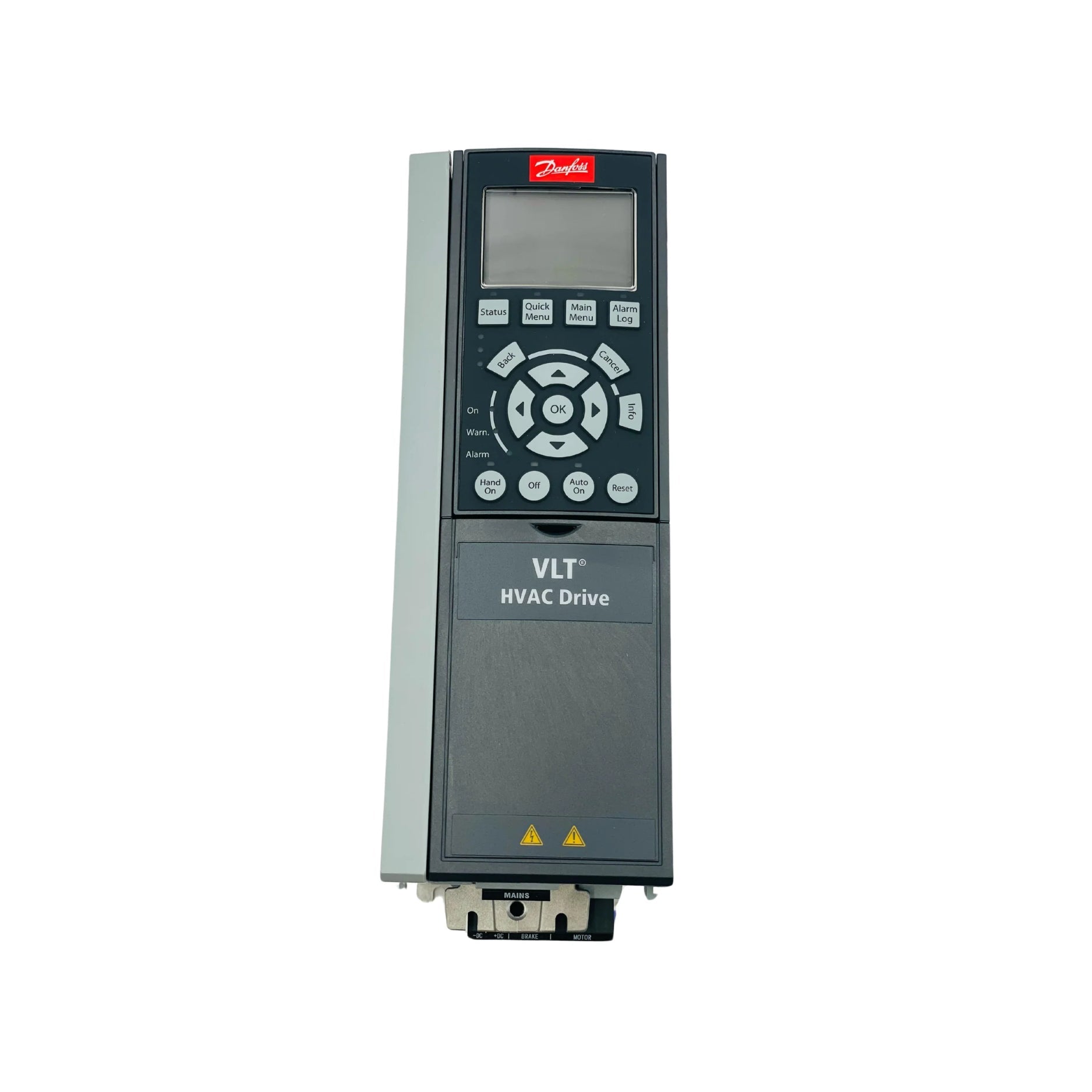

The Danfoss 131L9864 VLT HVAC Drive FC 101 is a high-efficiency frequency converter rated at 2.2 kW (3.0 HP). Built for 3-phase 380–480 V applications, it offers reliable and cost-effective motor control for HVAC systems including fans, pumps, and compressors. With IP20 chassis mounting, EMC compliance to RFI Class A1 (C2), and a coated PCB, this drive ensures durability, simple integration, and low overall cost of ownership.

Key Features

• Motor Power: 2.2 kW (3.0 HP)

• Input Voltage: 3-phase 380–480 V AC

• Output Voltage: 3-phase 0–480 V

• EMC Filter: RFI Class A1 (C2)

• Optimized for HVAC applications

• IP20 chassis mount enclosure

• Coated PCB for extended reliability

• Frame Size: H2

• RoHS-compliant

Technical Specifications

• Part Number: 131L9864 / FC-101P2K2T4E20H4XXCXXXSXXXXAXBXCXXXXDX

• Frame Size: H2

• Enclosure: IP20 (Chassis)

• Input Phase: 3-phase

• Output Frequency: up to 400 Hz

• Brake Chopper: Not included

• Local Control Panel: Not included (optional display available)

• Communication: RS485 (Modbus RTU, FC Protocol)

• Ambient Temperature: –10 °C to +50 °C

• Storage Temperature: –25 °C to +65 °C

• Compliance: RoHS Directive

Applications

• HVAC fans and blowers

• Heating and ventilation systems

• Pumps and circulation units

• Simple compressor control

Why Choose the Danfoss 131L9864

• Reliable 2.2 kW drive tailored for HVAC

• Compact size with durable coated PCB

• EMC Class A1 (C2) compliance for industrial settings

• Designed for long service life and energy efficiency

• Cost-effective OEM integration

Order Now

The Danfoss 131L9864 VLT HVAC Drive FC 101 is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
