Danfoss 132F0024

Danfoss 132F0024 – FC-051P3K0T4E20H3BXCXXXSXXX

Overview

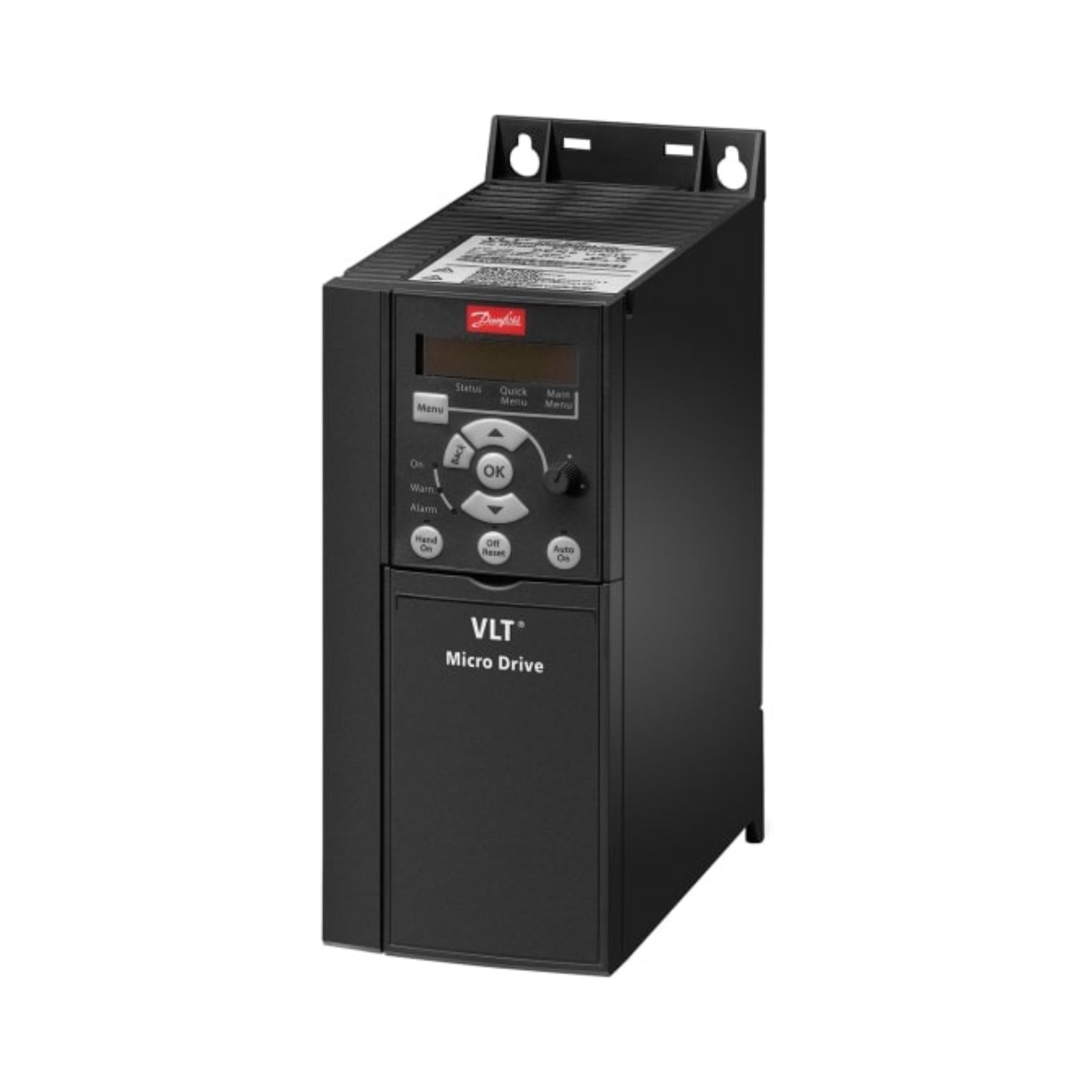

The Danfoss 132F0024 VLT Micro Drive FC 51 is a compact AC variable frequency drive rated at 3.0 kW (4.0 HP) for industrial and general-purpose use. Designed for 3-phase 380–480 V input, it includes an integrated brake chopper, EMC filter Class A1/B (C1), and IP20 chassis mount. Built with coated PCB for enhanced durability, this M3-frame model is optimized for efficient motor control in space-constrained environments. Note: Last time buy is June 30, 2026.

Key Features

• Motor Power: 3.0 kW (4.0 HP)

• Input Voltage: 3-phase 380–480 V AC

• Output Voltage: 3-phase 0–480 V

• Brake chopper included

• RFI Filter: Class A1/B (C1)

• IP20 chassis mount enclosure

• Coated PCB for harsh environments

• RoHS-compliant design

• M3 frame size

Technical Specifications

• Part Number: 132F0024 / FC-051P3K0T4E20H3BXCXXXSXXX

• Frame Size: M3

• Enclosure: IP20 (Chassis)

• Input Phase: 3-phase

• Output Frequency: up to 400 Hz

• Control Modes: V/f, VVC+, sensorless vector

• Brake Chopper: Integrated

• Local Control Panel: Not included

• Communication: RS485 (Modbus RTU, FC Protocol)

• Ambient Temperature: –10 °C to +50 °C

• Storage Temperature: –25 °C to +65 °C

• Compliance: RoHS Directive

Applications

• Industrial automation

• Pumps and compressors

• Conveyors and mixers

• Fans and HVAC systems

Why Choose the Danfoss 132F0024

• Powerful motor control in a compact chassis

• Built-in braking functionality

• EMC-compliant for industrial environments

• Extended life with coated PCB

• Environmentally conscious build

Order Now

The Danfoss 132F0024 VLT Micro Drive FC 51 is available and ships worldwide.

Return to the Danfoss VLT Micro Drive FC 51.

Explore the full range of Danfoss Variable Frequency Drives (VFD) for compact, reliable, and energy-efficient motor control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
