Bussmann CHM3DU

Eaton Bussmann CHM3DU

Overview

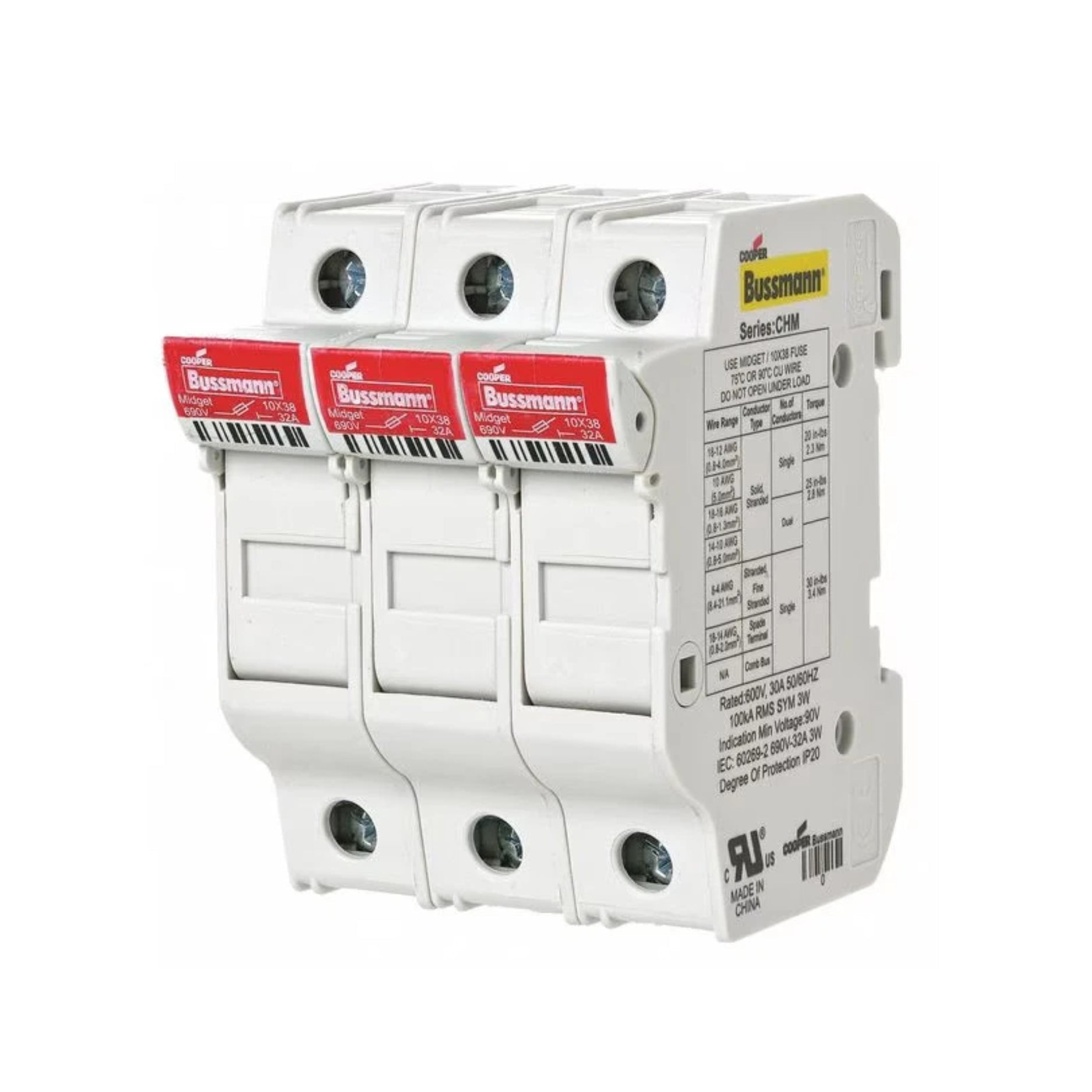

The Eaton Bussmann CHM3DU is a three-pole modular fuse holder engineered for reliable circuit protection in industrial and commercial applications. Rated for 30 A (UL) / 32 A (IEC) and up to 600 V (UL) / 690 V (IEC), it provides safe and durable housing for fuses in high-voltage environments. Its compact modular design and robust construction allow for quick installation, efficient operation, and long service life.

Built to operate between –20 °C and +120 °C, this fuse holder is RoHS compliant and designed to meet global electrical standards.

Key Features

• Three-pole modular fuse holder

• Amperage Rating: 30 A (UL) / 32 A (IEC)

• Voltage Rating: 600 V (UL) / 690 V (IEC)

• Wide operating temperature range: –20 °C to +120 °C

• Compact modular construction

• DIN-rail mountable for easy installation

• RoHS compliant

Technical Specifications

• Manufacturer: Eaton Bussmann

• Catalog Number: CHM3DU

• UPC: 051712362627

• EAN: 51712362627

• Product Type: Modular fuse holder

• Number of Poles: 3

• Dimensions: 83 mm (L) × 74 mm (H) × 53 mm (W)

• Weight: 156.75 g

• Packaging Type: Standard

• Warranty: Not Applicable

Applications

• Industrial control panels

• Power distribution systems

• Switchgear assemblies

• Motor protection circuits

• General-purpose electrical protection

Why Choose the Eaton Bussmann CHM3DU

• Reliable 3-pole modular fuse holder for demanding environments

• High-voltage ratings for both UL and IEC compliance

• Compact design for efficient panel space usage

• Wide temperature tolerance up to 120 °C

• Backed by Eaton Bussmann’s proven reliability

Order Now

The Eaton Bussmann CHM3DU modular fuse holder is available and ships worldwide.

Return to the Bussmann Fuses collection.

Browse the Industrial Fuses main category explore our full range.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
