Bussmann C10G6

Eaton Bussmann C10G6

Overview

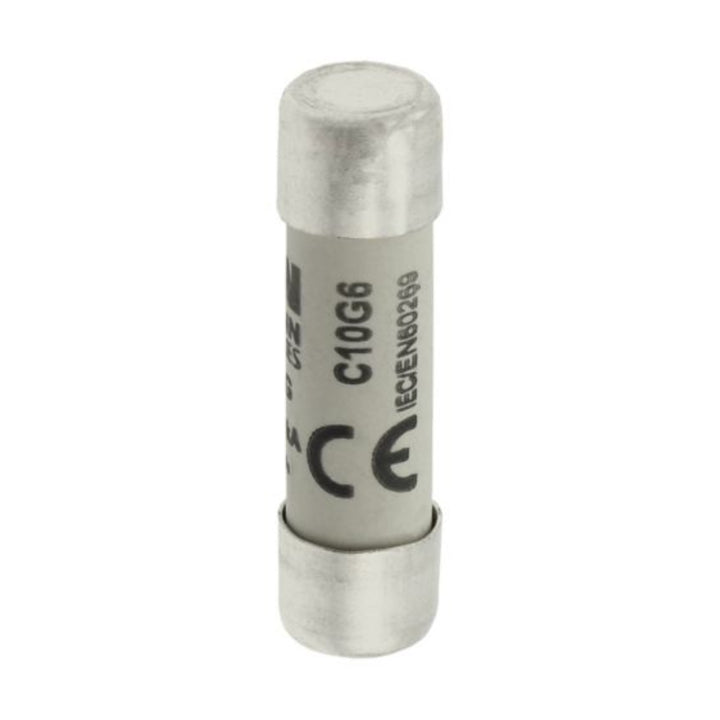

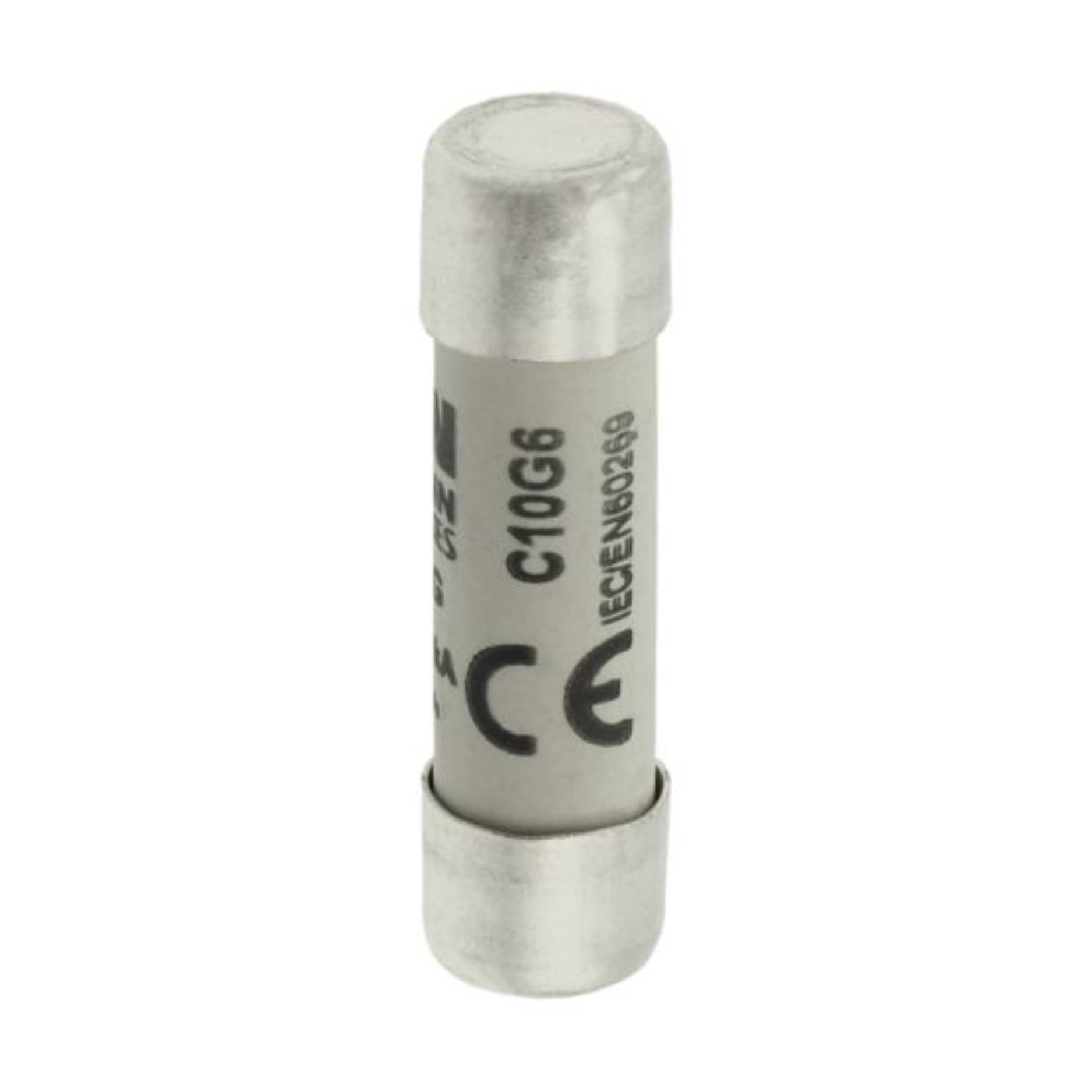

The Eaton Bussmann C10G6 is a low voltage cylindrical fuse designed for industrial and general-purpose circuit protection. Rated at 6 A and 500 V AC, this Class C gL/gG fuse provides safe and effective cable and equipment protection. With a 120 kA breaking capacity, it is engineered to handle fault conditions reliably in demanding environments. Its compact 10 × 38 mm ceramic design with ferrule connections makes it easy to install and fully compatible with CHM modular fuse holders.

Key Features

• Amperage Rating: 6 A

• Voltage Rating: 500 V AC

• Breaking Capacity: 120 kA

• Fuse Size: 10 × 38 mm

• Class C, gL/gG utilization category

• Compact cylindrical ceramic body

• Ferrule x ferrule connection

• Watt Loss: 0.85 W

• CE Marked, RoHS Compliant, GoST-R certified

• IEC 60269 compliant

• 1-year limited warranty

Technical Specifications

• Manufacturer: Eaton Bussmann

• Catalog Number: C10G6

• Model Code: Cylindrical Fuse 10 × 38, 6 A GG, 500 V AC

• UPC: 051712754248

• EAN: 5027590493567

• Fuse Type: Cylindrical, low voltage

• Construction Size: 10 × 38 mm

• Dimensions: 38 mm (L) × 10 mm (H) × 10 mm (W)

• Weight: 8.2 g

• Frequency Range: 45–62 Hz

• Body Material: Ceramic

• Mounting: Holder-based (compatible with CHM modular fuse holder)

• Packaging: Standard (Qty: 10)

Applications

• Industrial equipment protection

• Cable and conductor protection

• Power distribution systems

• General-purpose circuits

• Suitable for use with CHM modular fuse holders

Why Choose the Eaton Bussmann C10G6

• Provides reliable 6 A protection at 500 V AC

• High breaking capacity up to 120 kA

• Compact 10 × 38 mm cylindrical design

• Durable ceramic body for industrial environments

• Certified to IEC 60269, CE, RoHS, and GoST-R standards

Order Now

The Eaton Bussmann C10G6 cylindrical fuse is available and ships worldwide.
