Bussmann 170M1569D

Eaton Bussmann 170M1569D

Overview

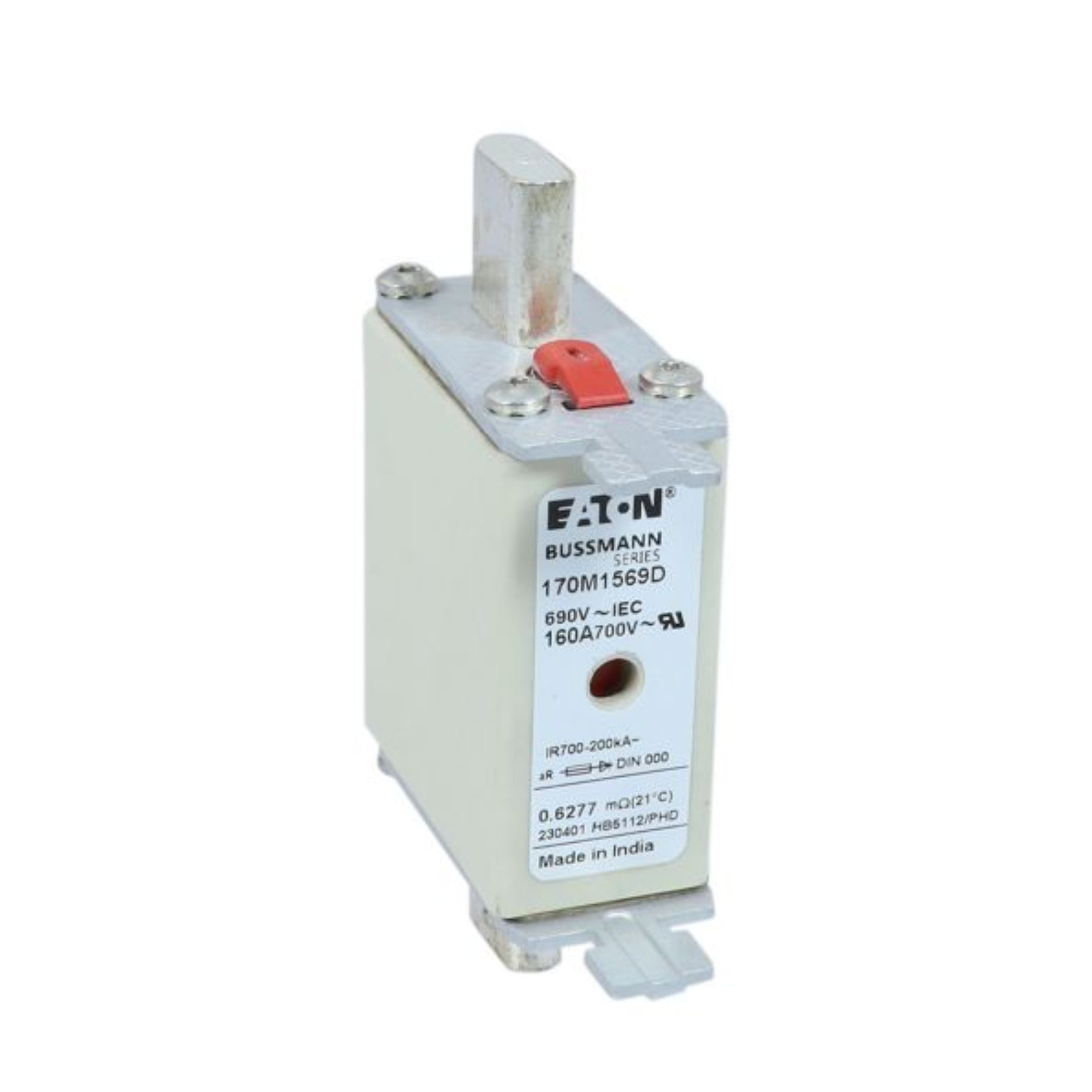

The Eaton Bussmann 170M1569D is a high-speed square body fuse engineered for semiconductor and power electronic protection. Rated at 160 A with a 690 V AC (IEC) and 700 V AC (UL) voltage capacity, it ensures fast-acting and reliable protection in demanding industrial environments. Built to the DIN 43-620 standard with knife blade contacts, this Class aR fuse provides secure mounting, high breaking capacity, and long-term dependability. Equipped with a dual fuse status indicator, it allows easy condition monitoring for efficient system maintenance.

Key Features

• Amperage Rating: 160 A

• Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)

• Interrupt Rating: 200 kAIC

• Class aR, semiconductor protection fuse

• Fuse Size: 000, square body design

• Clearing I²t: 16,500 at 660 V

• Pre-arc I²t: 2,300

• Watt Loss: 25 W

• Dual combination status indicator

• DIN 43-620 blade end x blade end connections

• CE Marked, RoHS Compliant, UL Recognized, IEC Rated

Technical Specifications

• Manufacturer: Eaton Bussmann

• Catalog Number: 170M1569D

• Model Code: FUSE 160A 690V aR DIN 000 HSDNH

• UPC: 051712334907

• EAN: 5027590441360

• Fuse Type: High-speed semiconductor fuse

• Body Style: Square body with knife blade contacts

• Construction Size: 000

• Dimensions: 79 mm (L) × 51 mm (H) × 21 mm (W)

• Weight: 136.2 g

• Packaging: Standard

• Compliance: UL, IEC, CE, RoHS

Applications

• Semiconductor device protection

• DC common bus systems

• DC motor drives and inverters

• Power converters and rectifiers

• High-speed electronic circuits

Why Choose the Eaton Bussmann 170M1569D

• Fast-acting protection for semiconductors

• High breaking capacity for reliable performance

• Dual indicator for fuse condition monitoring

• Compact square body with knife blade contacts

• Backed by Eaton Bussmann’s trusted quality

Order Now

The Eaton Bussmann 170M1569D high-speed square body fuse is available and ships worldwide.
