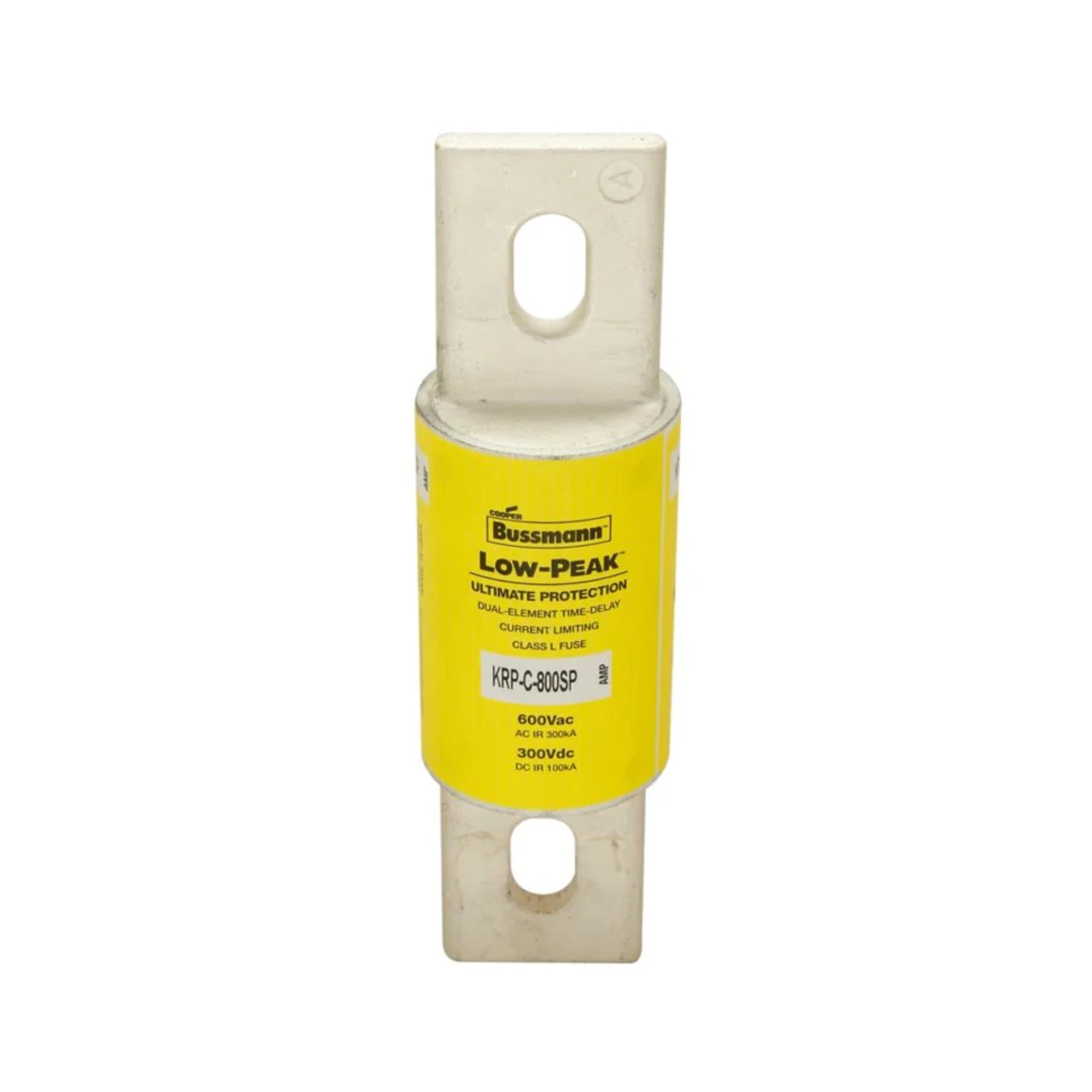

Bussmann KRP-C-800SP

Bussmann KRP-C-800SP

Overview

The Bussmann KRP-C-800SP is a Class L dual-element time-delay fuse engineered for high-capacity power distribution and heavy-duty industrial applications. With a current rating of 800 A and voltage capacity of 600 V AC / 300 V DC, this fuse provides exceptional overload and short-circuit protection for large-scale systems.

Its 300 kAIC interrupt rating at 600 V AC and 100 kAIC at 300 V DC ensure maximum protection in demanding fault conditions. The time-delay response (4 seconds at 500% overload) allows the fuse to accommodate temporary inrush currents from motors and transformers without nuisance operation.

The bolted blade end x bolted blade end connection ensures secure installation, while its small footprint helps save valuable panel space in high-density electrical cabinets.

Key Features

• Class L time-delay dual-element fuse

• Rated current: 800 A

• Voltage rating: 600 V AC / 300 V DC

• Interrupt rating: 300 kAIC at 600 V AC / 100 kAIC at 300 V DC

• Time-delay response: 4 seconds at 500% overload

• Dual-element design for both overload and short-circuit protection

• Connection: Bolted blade end x bolted blade end

• Fuse indicator: Non-indicating

• Special feature: Compact footprint for space-saving installation

• Dimensions: 8.63 in (L) × 2.53 in (W) × 2.53 in (H)

• Weight: 0.001 lb (nominal)

• Compliance: CE Marked, RoHS Compliant

• Packaging type: Standard

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: KRP-C-800SP

• Product Type: Time-delay fuse

• Fuse Class: L

• Amperage Rating: 800 A

• Voltage Rating: 600 V AC, 300 V DC

• Interrupt Rating: 300 kAIC (600 V AC), 100 kAIC (300 V DC)

• Response Time: 4 seconds at 500% overload

• Connection Type: Bolted blade end x bolted blade end

• Fuse Indicator: Non-indicating

• Dimensions: 8.63 in (L) × 2.53 in (W) × 2.53 in (H)

• Weight: 0.001 lb (approximate)

• Compliance: CE Marked, RoHS Compliant

• Packaging Type: Standard

Applications

• Power distribution systems

• Large industrial machinery

• Transformers

• Heavy-duty motor circuits

• High-capacity electrical panels

Why Choose the KRP-C-800SP

• High 300 kAIC interrupt rating ensures maximum fault protection

• Time-delay dual-element design tolerates inrush currents without nuisance trips

• Compact footprint saves panel space in dense installations

• Heavy-duty bolted blade connection ensures secure mounting

• Trusted Bussmann quality with CE and RoHS compliance

Order Now

The Bussmann KRP-C-800SP Class L Fuse is available and ships worldwide.
