Bussmann JT60060

Bussmann JT60060

Overview

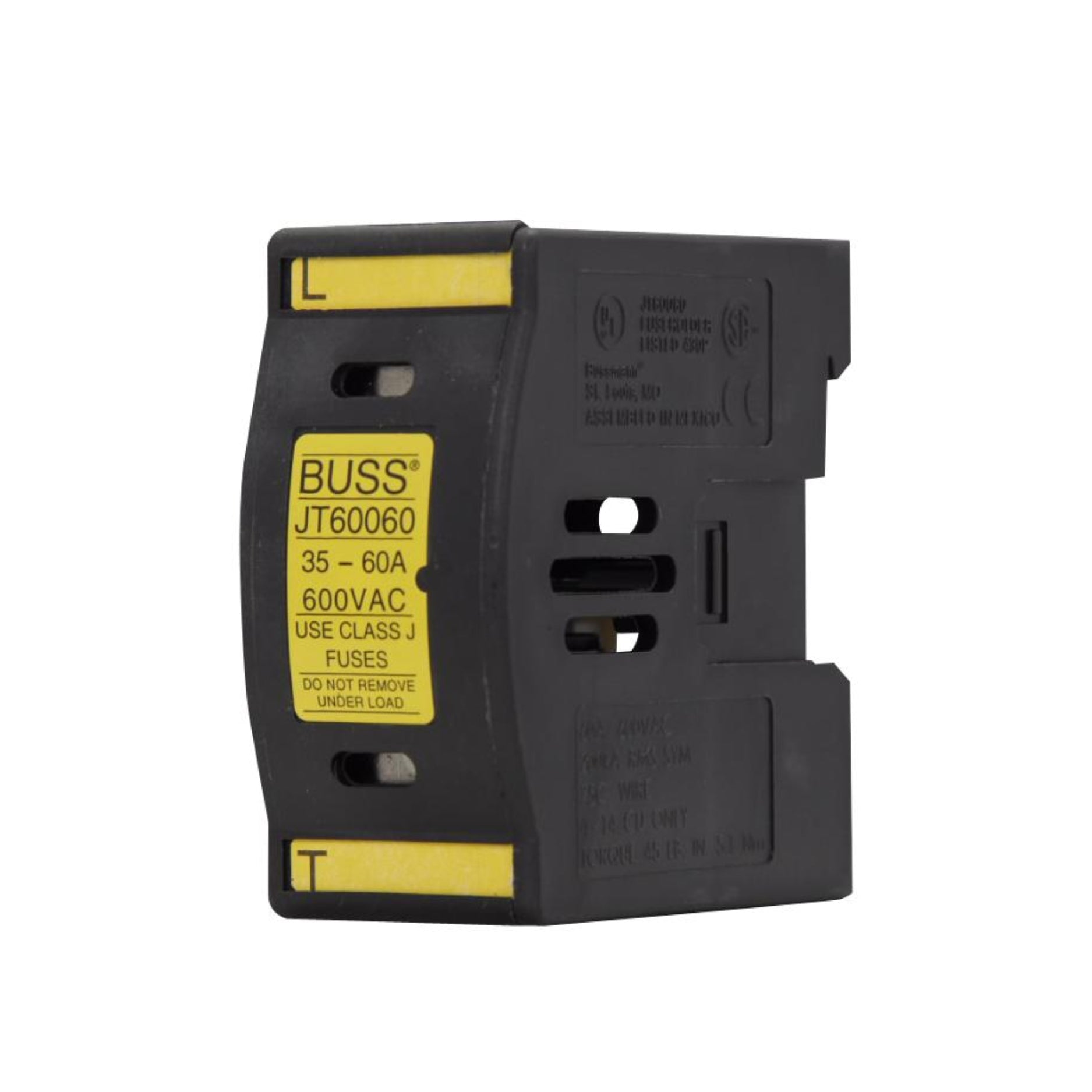

The Bussmann JT60060 is a Class J finger-safe fuse holder designed for secure and reliable installation of Class J fuses. With a 60 A current rating and 600 V voltage rating, this fuse holder delivers dependable protection for industrial and commercial electrical systems.

Built from durable thermoplastic material, the JT60060 is RoHS compliant, CE marked, UL Listed, and CSA Certified, ensuring compliance with international safety standards. Its finger-safe IP20 design enhances operator safety during installation and servicing, while the DIN rail mounting method simplifies integration into control panels and distribution systems.

Key Features

• Class J finger-safe fuse holder

• Rated current: 60 A

• Voltage rating: 600 V

• Material: Thermoplastic housing

• Operating temperature: –75 °C to +75 °C

• Connection: 14 to 4 AWG tin-plated copper alloy terminal

• Mounting method: 35 mm DIN rail

• Safety: Finger-safe IP20 protection

• Certifications: UL Listed, CSA Certified

• Compliance: RoHS Compliant, CE Marked

• Dimensions: 1.4 in length × 3.1 in width × 3.1 in height

• Weight: 0.39 lb

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: JT60060

• Product Type: Finger-safe fuse holder

• Fuse Class: J

• Amperage Rating: 60 A

• Voltage Rating: 600 V

• Terminal Material: Tin-plated copper alloy

• Connection Range: 14 to 4 AWG

• Mounting: 35 mm DIN rail

• Housing Material: Thermoplastic

• Operating Temperature: –75 °C to +75 °C

• Compliance: RoHS Compliant, CE Marked

• Certifications: UL Listed, CSA Certified

• Dimensions: 1.4 in (L) × 3.1 in (W) × 3.1 in (H)

• Weight: 0.39 lb

Applications

• Class J fuse installations

• Control panels

• Power distribution systems

• Industrial machinery circuits

• Commercial electrical systems

Why Choose the JT60060

• Provides finger-safe IP20 protection for enhanced safety

• Rated for 60 A, 600 V Class J fuses

• Compact design for easy DIN rail mounting

• UL and CSA certified, RoHS and CE compliant

• Trusted Bussmann quality for industrial-grade applications

Order Now

The Bussmann JT60060 Class J Finger-Safe Fuse Holder is available and ships worldwide.
