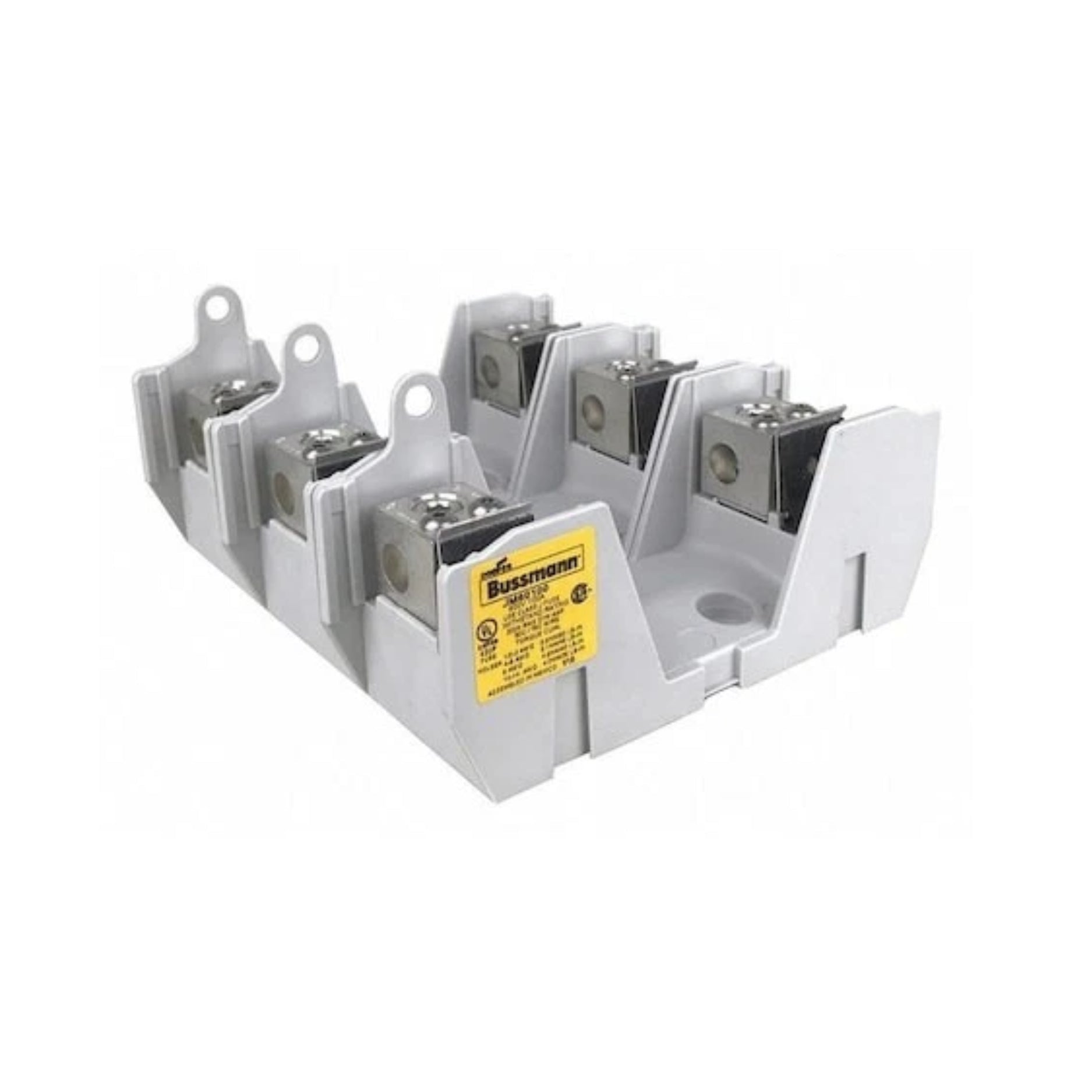

Bussmann JM60100-3CR

Bussmann JM60100-3CR

Overview

The Bussmann JM60100-3CR is a Class J modular fuse block designed for reliable installation and protection of Class J fuses in electrical distribution systems. With an amperage rating of 70–100 A and a voltage rating of 600 V, this modular block ensures safe power distribution in both industrial and commercial applications.

Built with a three-pole configuration and knife blade end x knife blade end connection, the JM60100-3CR provides secure, heavy-duty connections. With a 200 kAIC interrupt rating and 200 kA short-circuit rating, it delivers superior protection against high fault currents, ensuring safe and reliable system operation.

Key Features

• Modular fuse block for Class J fuses

• Rated current: 70–100 A

• Voltage rating: 600 V

• Interrupt rating: 200 kAIC

• Short-circuit rating: 200 kA

• Number of poles: Three-pole design

• Connection: Knife blade end x knife blade end

• Special Feature: CR designation for enhanced reliability

• Dimensions: 5.4 in length × 5.93 in width × 2.95 in height

• Weight: 0.95 lb

• Certifications: UL Listed, CSA Certified

• Compliance: RoHS Compliant, CE Marked

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: JM60100-3CR

• Product Type: Modular fuse block

• Fuse Class: J

• Amperage Rating: 70–100 A

• Voltage Rating: 600 V

• Interrupt Rating: 200 kAIC

• Short-Circuit Rating: 200 kA

• Poles: 3 (Three-pole)

• Connection Type: Knife blade end x knife blade end

• Dimensions: 5.4 in (L) × 5.93 in (W) × 2.95 in (H)

• Weight: 0.95 lb

• Compliance: RoHS Compliant, CE Marked

• Certifications: UL Listed, CSA Certified

Applications

• Class J fuse installations

• Industrial control panels

• Power distribution systems

• Commercial electrical equipment

• Automation systems

Why Choose the JM60100-3CR

• 70–100 A rating for reliable mid-range power protection

• High 200 kAIC interrupt rating ensures robust fault protection

• Secure knife blade connection for heavy-duty performance

• Three-pole modular design for versatile system integration

• UL, CSA, CE, and RoHS certified for global compliance

Order Now

The Bussmann JM60100-3CR Modular Fuse Block is available and ships worldwide.
