Bussmann JM60060-3CR

Bussmann JM60060-3CR

Overview

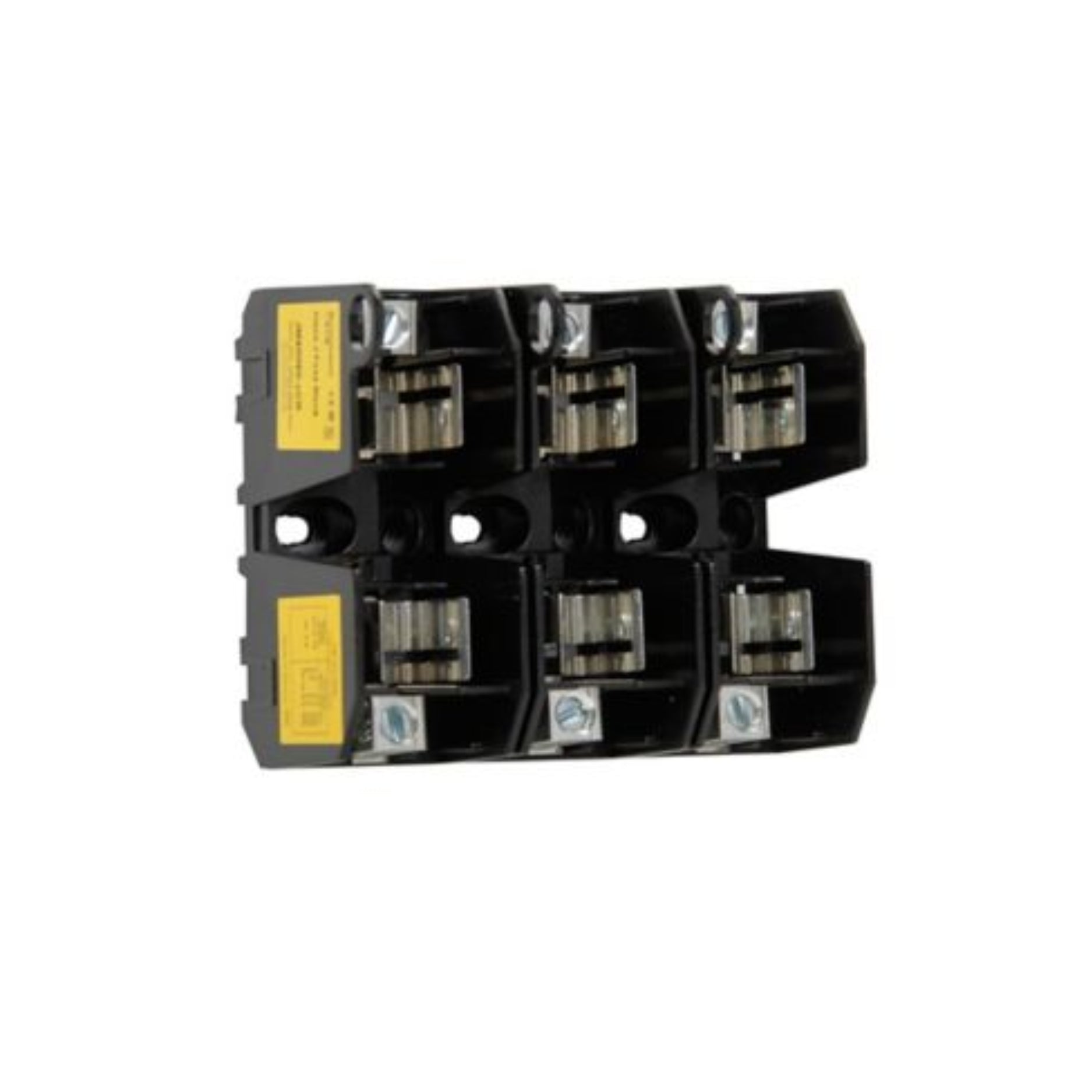

The Bussmann JM60060-3CR is a three-pole modular fuse block designed for secure mounting and protection of Class J fuses. Supporting a current range of 35–60 A and a voltage rating of 600 V, this fuse block ensures safe and reliable integration in power distribution and control panels.

Engineered for high-performance electrical systems, the JM60060-3CR offers a 200 kAIC interrupt rating and a 200 kA short-circuit rating, providing maximum circuit protection under fault conditions. Its box lug connections ensure strong and reliable termination, while compliance with UL Listed, CSA Certified, CE, and RoHS standards guarantees safe operation in industrial environments.

Key Features

• Modular fuse block for Class J fuses

• Current range: 35–60 A

• Voltage rating: 600 V

• Interrupt rating: 200 kAIC

• Short-circuit rating: 200 kA

• Poles: Three-pole

• Connection type: Box lug

• Special feature: CR (configuration code)

• Compact design for panel installation

• Compliance: CE Marked, RoHS Compliant

• Certifications: UL Listed, CSA Certified

• Weight: 0.1 lb

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: JM60060-3CR

• Product Type: Modular Fuse Block

• Fuse Class: J

• Amperage Rating: 35–60 A

• Voltage Rating: 600 V

• Interrupt Rating: 200 kAIC

• Short-Circuit Rating: 200 kA

• Poles: 3-pole

• Connection Type: Box lug

• Special Feature: CR

• Dimensions: Nominal placeholder (0.001 in each side; actual per Bussmann datasheet)

• Weight: 0.1 lb

• Compliance: CE Marked, RoHS Compliant

• Certifications: UL Listed, CSA Certified

Applications

• Industrial control panels

• Power distribution systems

• Motor branch circuit protection

• OEM equipment assemblies

• Heavy-duty electrical installations

Why Choose the JM60060-3CR

• High 200 kAIC interrupt rating for reliable fault protection

• Supports 35–60 A Class J fuses for versatile applications

• Box lug connections ensure secure termination

• Certified to UL, CSA, CE, and RoHS standards

• Space-saving 3-pole modular design ideal for compact panels

Order Now

The Bussmann JM60060-3CR Modular Fuse Block is available and ships worldwide.
