Bussmann FRS-R-400

Bussmann FRS-R-400

Overview

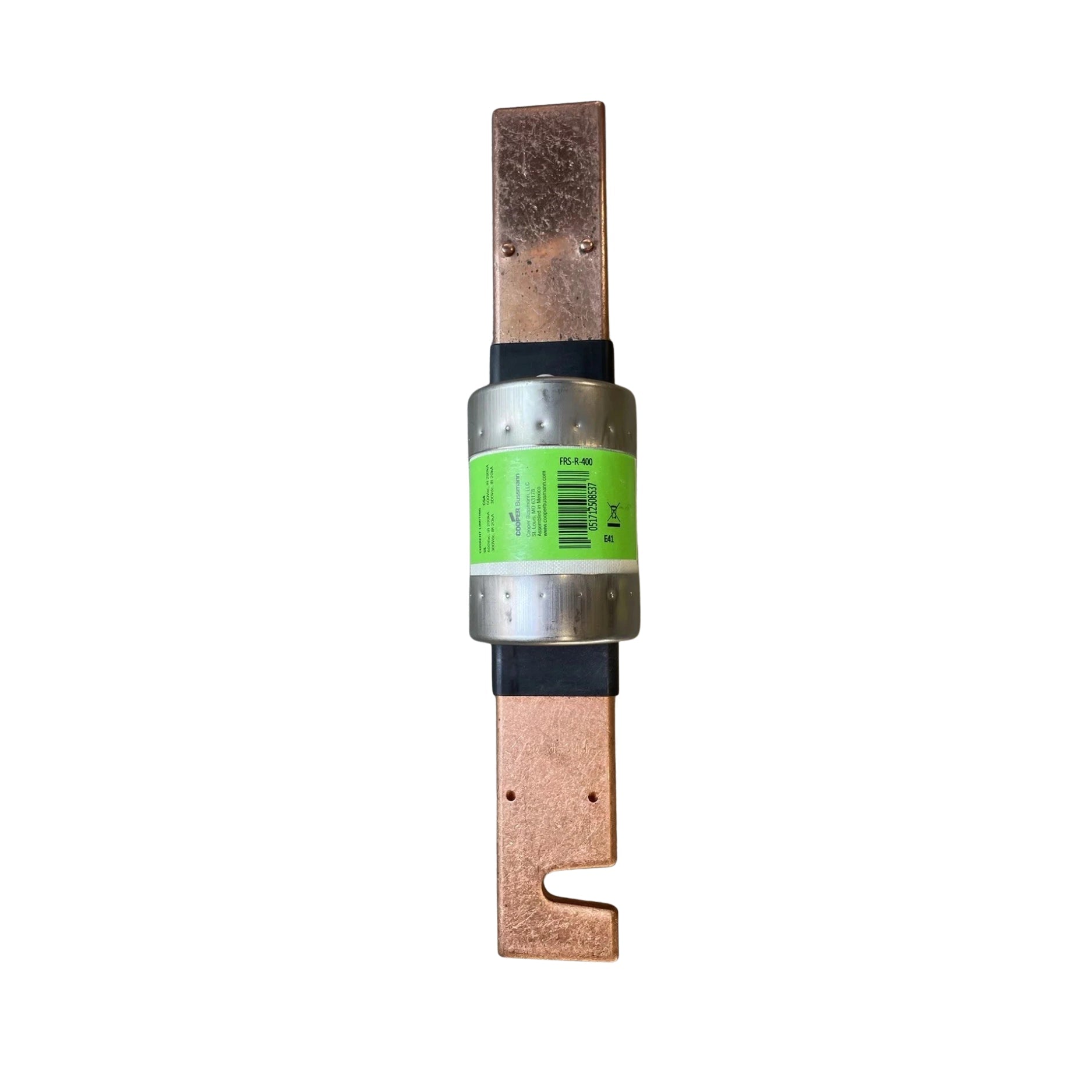

The Bussmann FRS-R-400 is a Class RK5 dual-element time-delay fuse engineered for heavy-duty protection in industrial and commercial electrical systems. With a 400 A current rating and voltage ratings of 600 V AC and 300 V DC, it delivers dependable overload and short-circuit protection. Its 200 kAIC interrupt rating at 600 V AC provides maximum safety in high fault current conditions.

The time-delay design allows a 10-second response at 500% overload, ensuring reliable startup protection for motors and transformers without nuisance tripping. Featuring a blade end x blade end connection, the FRS-R-400 installs securely for robust and long-term performance in demanding applications.

Key Features

• Class RK5 dual-element time-delay fuse

• Rated current: 400 A

• Voltage rating: 600 V AC / 300 V DC

• Interrupt rating: 200 kAIC at 600 V AC / 20 kAIC at 300 V DC

• Time-delay response: 10 seconds at 500% overload

• Dual-element construction provides short-circuit and overload protection

• Connection: Blade end x blade end

• Fuse indicator: Non-indicating

• Dimensions: 5.5 in length × 1.06 in width × 1.06 in height

• Weight: 3 lb

• CE marked for compliance

• Quantity: Sold individually (1 piece)

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: FRS-R-400

• Product Type: Time-delay dual-element fuse

• Fuse Class: RK5

• Amperage Rating: 400 A

• Voltage Rating: 600 V AC, 300 V DC

• Interrupt Rating: 200 kAIC (600 V AC), 20 kAIC (300 V DC)

• Response Time: 10 seconds at 500% overload

• Number of Elements: Dual

• Connection Type: Blade end x blade end

• Fuse Indicator: Non-indicating

• Dimensions: 5.5 in (L) × 1.06 in (W) × 1.06 in (H)

• Weight: 3 lb

• Compliance: CE Marked

• Quantity: 1

Applications

• Heavy-duty motor protection

• Transformer circuits

• Industrial machinery and equipment

• Power distribution panels

• Commercial electrical systems

Why Choose the FRS-R-400

• High 200 kAIC interrupt rating ensures safe fault protection

• Dual-element time-delay design accommodates high inrush currents

• Provides reliable overload and short-circuit protection

• Secure blade-style connection for industrial-grade use

• Trusted Bussmann quality with CE compliance

Order Now

The Bussmann FRS-R-400 Class RK5 Fuse is available and ships worldwide.

Return to the Bussmann Fuses collection.

Browse the Industrial Fuses main category explore our full range.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
