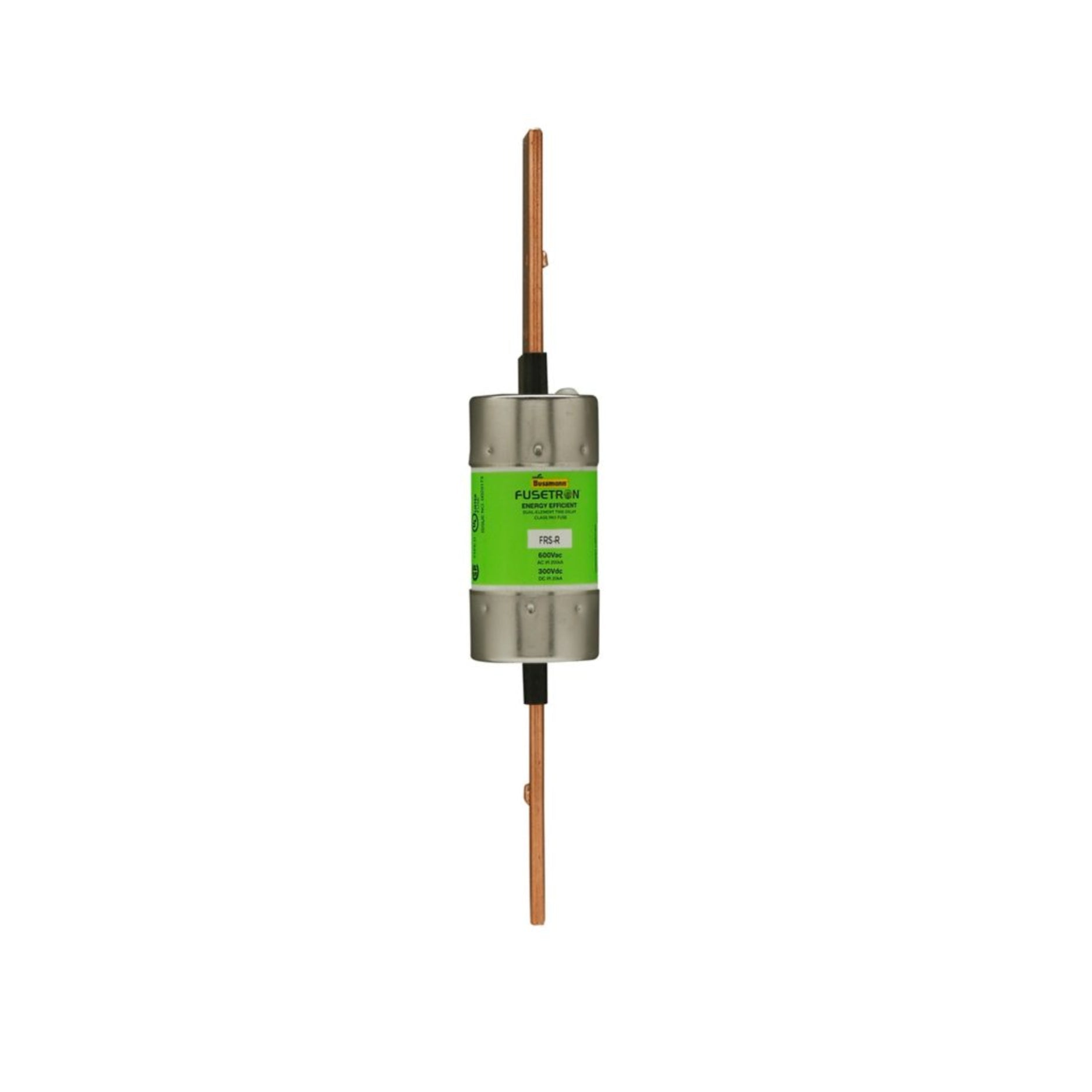

Bussmann FRS-R-200

Bussmann FRS-R-200

Overview

The Bussmann FRS-R-200 is a Class RK5 dual-element time-delay fuse designed for high-performance protection in industrial and commercial electrical systems. With a 200 A current rating and voltage capacity of 600 V AC and 300 V DC, it provides reliable overload and short-circuit protection. Its 200 kAIC interrupt rating at 600 V AC ensures safe operation even in severe fault current conditions.

Featuring a blade end x blade end connection, the FRS-R-200 installs securely for long-lasting durability. Its 10-second time-delay response at 500% overload makes it ideal for protecting motors, transformers, and inductive loads, preventing nuisance tripping during startup surges.

Key Features

• Class RK5 dual-element time-delay fuse

• Rated current: 200 A

• Voltage rating: 600 V AC / 300 V DC

• Interrupt rating: 200 kAIC at 600 V AC / 20 kAIC at 300 V DC

• Time-delay response: 10 seconds at 500% overload

• Dual-element design for overload and short-circuit protection

• Connection: Blade end x blade end

• Fuse indicator: Non-indicating

• Dimensions: 5 in length × 0.81 in width × 0.81 in height

• Weight: 0.971 lb

• CE marked for compliance

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: FRS-R-200

• Product Type: Time-delay dual-element fuse

• Fuse Class: RK5

• Amperage Rating: 200 A

• Voltage Rating: 600 V AC, 300 V DC

• Interrupt Rating: 200 kAIC (600 V AC), 20 kAIC (300 V DC)

• Response Time: 10 seconds at 500% overload

• Number of Elements: Dual

• Connection Type: Blade end x blade end

• Fuse Indicator: Non-indicating

• Dimensions: 5 in (L) × 0.81 in (W) × 0.81 in (H)

• Weight: 0.971 lb

• Compliance: CE Marked

Applications

• Motor protection

• Transformer protection

• Power distribution systems

• Industrial machinery circuits

• Commercial electrical installations

Why Choose the FRS-R-200

• High 200 kAIC interrupt rating ensures dependable protection

• Dual-element time-delay design accommodates motor and transformer inrush currents

• Prevents nuisance trips while maintaining circuit safety

• Compact blade connection for easy and secure installation

• Backed by Bussmann reliability for industrial-grade use

Order Now

The Bussmann FRS-R-200 Class RK5 Fuse is available and ships worldwide.
