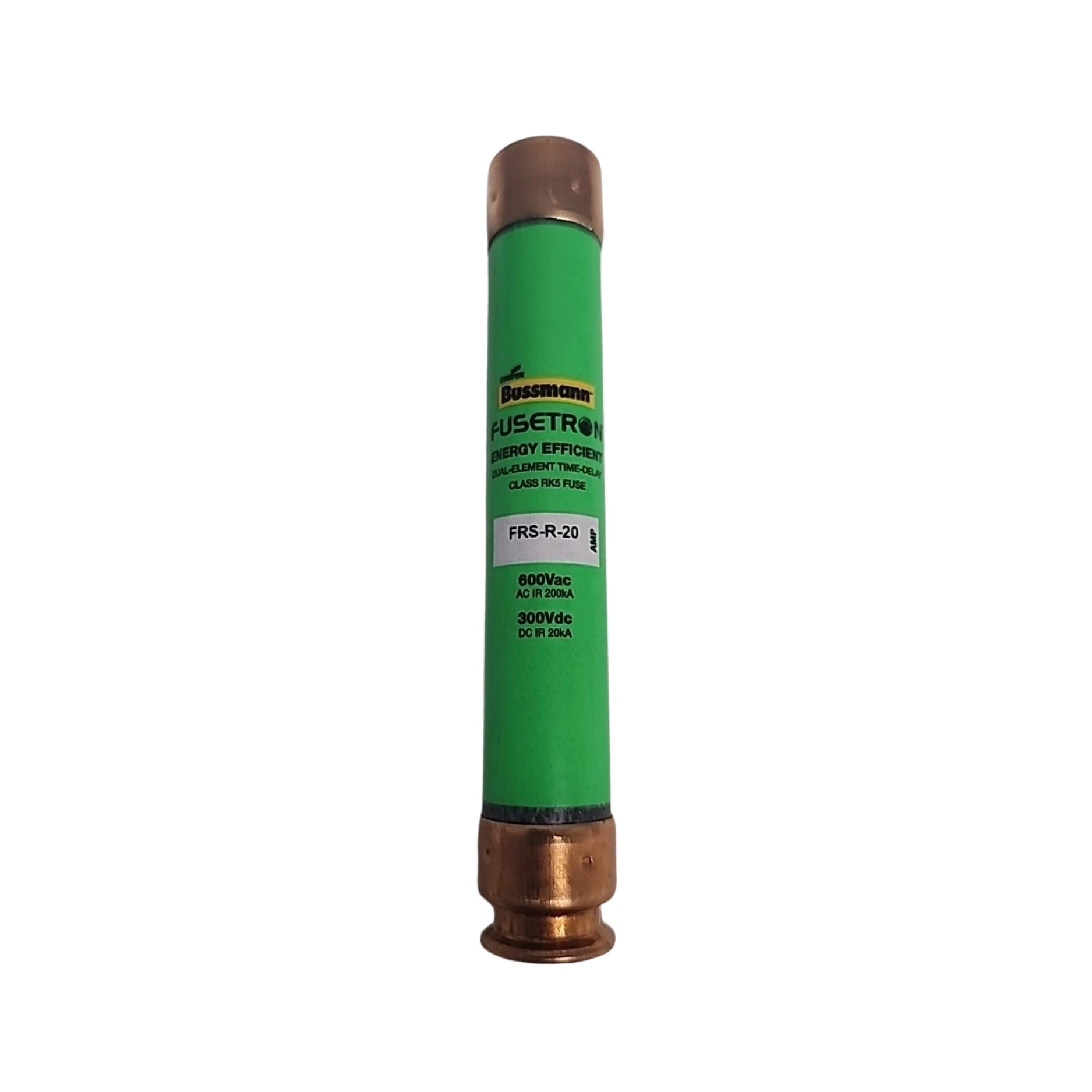

Bussmann FRS-R-20

Bussmann FRS-R-20

Overview

The Bussmann FRS-R-20 is a Class RK5 dual-element time-delay fuse designed for reliable circuit protection in industrial and commercial applications. Rated at 20 A, it operates at 600 V AC and 300 V DC, offering dependable overload and short-circuit protection. Its 200 kAIC interrupt rating at 600 V AC ensures robust performance in demanding environments.

With a ferrule end x ferrule end connection, the FRS-R-20 provides secure installation in standard fuse holders. The time-delay design allows a 10-second response at 500% overload, making it suitable for protecting motors, transformers, and inductive loads where inrush currents are common.

Key Features

• Class RK5 dual-element time-delay fuse

• Rated current: 20 A

• Voltage rating: 600 V AC / 300 V DC

• Interrupt rating: 200 kAIC at 600 V AC / 20 kAIC at 300 V DC

• Response time: 10 seconds at 500% overload

• Dual-element design for both overload and short-circuit protection

• Connection: Ferrule end x ferrule end

• Fuse indicator: Non-indicating

• Dimensions: 5 in length × 0.8 in width × 0.8 in height

• Weight: 0.16 lb

• CE marked for compliance

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: FRS-R-20

• Product Type: Time-delay dual-element fuse

• Fuse Class: RK5

• Amperage Rating: 20 A

• Voltage Rating: 600 V AC, 300 V DC

• Interrupt Rating: 200 kAIC (600 V AC), 20 kAIC (300 V DC)

• Response Time: 10 seconds at 500% overload

• Number of Elements: Dual

• Connection Type: Ferrule end x ferrule end

• Fuse Indicator: Non-indicating

• Dimensions: 5 in (L) × 0.8 in (W) × 0.8 in (H)

• Weight: 0.16 lb

• Compliance: CE Marked

Applications

• Motor protection

• Transformer protection

• Industrial machinery

• Power distribution panels

• Commercial electrical systems

Why Choose the FRS-R-20

• Dual-element design provides both overload and short-circuit protection

• Handles high inrush currents without nuisance tripping

• High 200 kAIC interrupt rating for enhanced circuit safety

• Compact ferrule connection ensures secure installation

• Backed by trusted Bussmann reliability and CE compliance

Order Now

The Bussmann FRS-R-20 Class RK5 Fuse is available and ships worldwide.
