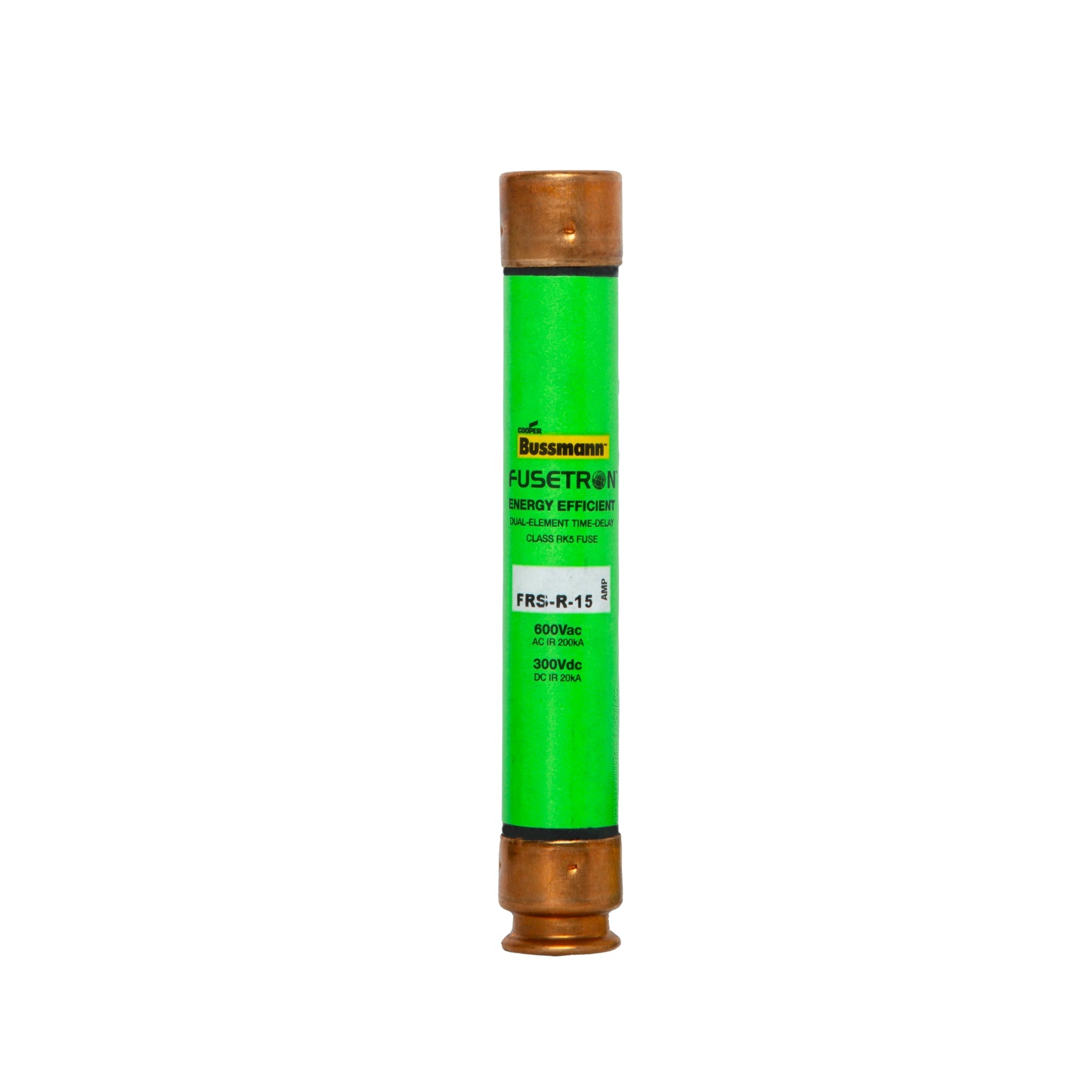

Bussmann FRS-R-15

Bussmann FRS-R-15

Overview

The Bussmann FRS-R-15 is a Class RK5 dual-element time-delay fuse designed for industrial and commercial circuit protection. Rated at 15 A, with a voltage capacity of 600 V AC and 300 V DC, it provides reliable overload and short-circuit protection. Its 200 kAIC interrupt rating at 600 V AC ensures dependable performance in demanding electrical environments.

With a 10-second time-delay response at 500% overload, the FRS-R-15 is ideal for motor and transformer applications, allowing for inrush currents without nuisance tripping. The ferrule end x ferrule end connection ensures secure installation, while the compact dimensions make it suitable for standard fuse holders.

Key Features

• Class RK5 dual-element time-delay fuse

• Rated current: 15 A

• Voltage rating: 600 V AC / 300 V DC

• Interrupt rating: 200 kAIC at 600 V AC / 20 kAIC at 300 V DC

• Response time: 10 seconds at 500% overload

• Dual-element construction handles overloads and short-circuits

• Connection: Ferrule end x ferrule end

• Fuse indicator: Non-indicating

• Dimensions: 5 in length × 0.81 in width × 0.81 in height

• Weight: 0.165 lb

• CE marked for compliance

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: FRS-R-15

• Product Type: Time-delay dual-element fuse

• Fuse Class: RK5

• Amperage Rating: 15 A

• Voltage Rating: 600 V AC, 300 V DC

• Interrupt Rating: 200 kAIC (600 V AC), 20 kAIC (300 V DC)

• Response Time: 10 seconds at 500% overload

• Number of Elements: Dual

• Connection Type: Ferrule end x ferrule end

• Fuse Indicator: Non-indicating

• Dimensions: 5 in (L) × 0.81 in (W) × 0.81 in (H)

• Weight: 0.165 lb

• Compliance: CE Marked

Applications

• Motor circuits

• Transformer protection

• Industrial machinery

• Control panels

• Commercial electrical systems

Why Choose the FRS-R-15

• Dual-element time-delay design prevents nuisance trips during startup

• High 200 kAIC interrupt rating ensures maximum protection

• Suitable for both AC and DC applications

• Compact ferrule connection for secure installation

• Bussmann reliability with CE compliance

Order Now

The Bussmann FRS-R-15 Class RK5 Fuse is available and ships worldwide.
