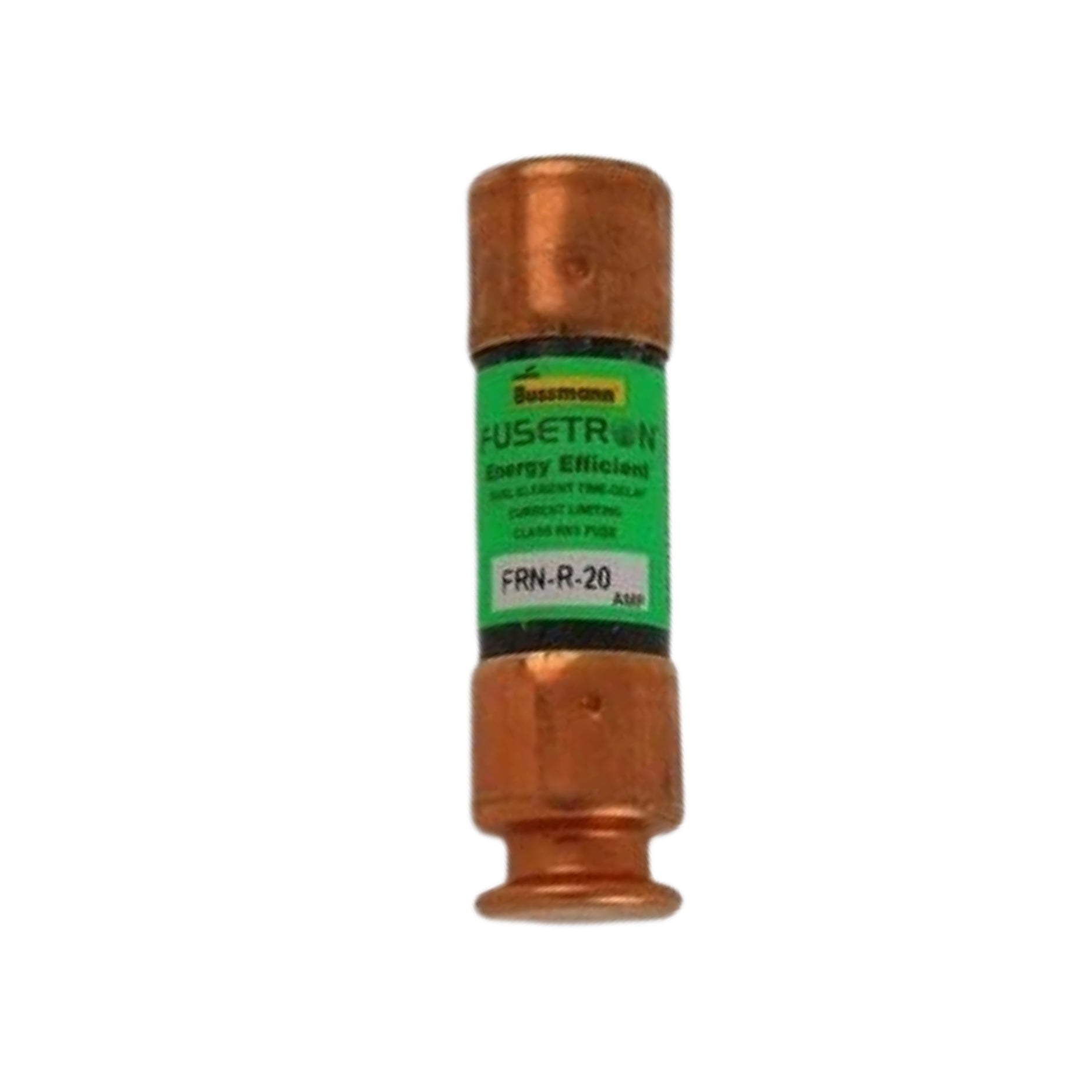

Bussmann FRN-R-20

Bussmann FRN-R-20

Overview

The Bussmann FRN-R-20 is a Class RK5 dual-element time-delay fuse designed to provide superior overload and short-circuit protection in industrial and commercial electrical systems. Rated at 20 A, with a 250 V AC and 125 V DC voltage capacity, this fuse ensures reliable operation under demanding conditions. With a 200 kAIC interrupt rating at 250 V AC, it offers strong fault-clearing capability to protect equipment and circuits.

Its time-delay response of 8 seconds at 500% overload accommodates motor and transformer inrush currents without nuisance tripping. Built with a ferrule end x ferrule end connection, the FRN-R-20 installs securely and provides long-lasting durability.

Key Features

• Class RK5 dual-element time-delay fuse

• Rated current: 20 A

• Voltage rating: 250 V AC / 125 V DC

• Interrupt rating: 200 kAIC at 250 V AC / 20 kAIC at 125 V DC

• Response time: 8 seconds at 500% overload

• Dual-element construction for overload and short-circuit protection

• Connection: Ferrule end x ferrule end

• Fuse indicator: Non-indicating

• Dimensions: 1.56 in length × 1.56 in width × 1.56 in height

• Weight: 0.9 lb

• CE marked for compliance

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: FRN-R-20

• Product Type: Time-delay dual-element fuse

• Fuse Class: RK5

• Amperage Rating: 20 A

• Voltage Rating: 250 V AC, 125 V DC

• Interrupt Rating: 200 kAIC (250 V AC), 20 kAIC (125 V DC)

• Response Time: 8 seconds at 500% overload

• Number of Elements: Dual

• Connection Type: Ferrule end x ferrule end

• Fuse Indicator: Non-indicating

• Dimensions: 1.56 in (L) × 1.56 in (W) × 1.56 in (H)

• Weight: 0.9 lb

• Compliance: CE Marked

Applications

• Motor protection

• Transformer circuits

• Power distribution panels

• Industrial machinery

• Commercial electrical systems

Why Choose the FRN-R-20

• Dual-element design prevents nuisance tripping from inrush currents

• High interrupt rating provides reliable fault protection

• Time-delay feature ensures stable performance under heavy loads

• Compact ferrule connection for secure installation

• Bussmann reliability backed by CE compliance

Order Now

The Bussmann FRN-R-20 Class RK5 Fuse is available and ships worldwide.
