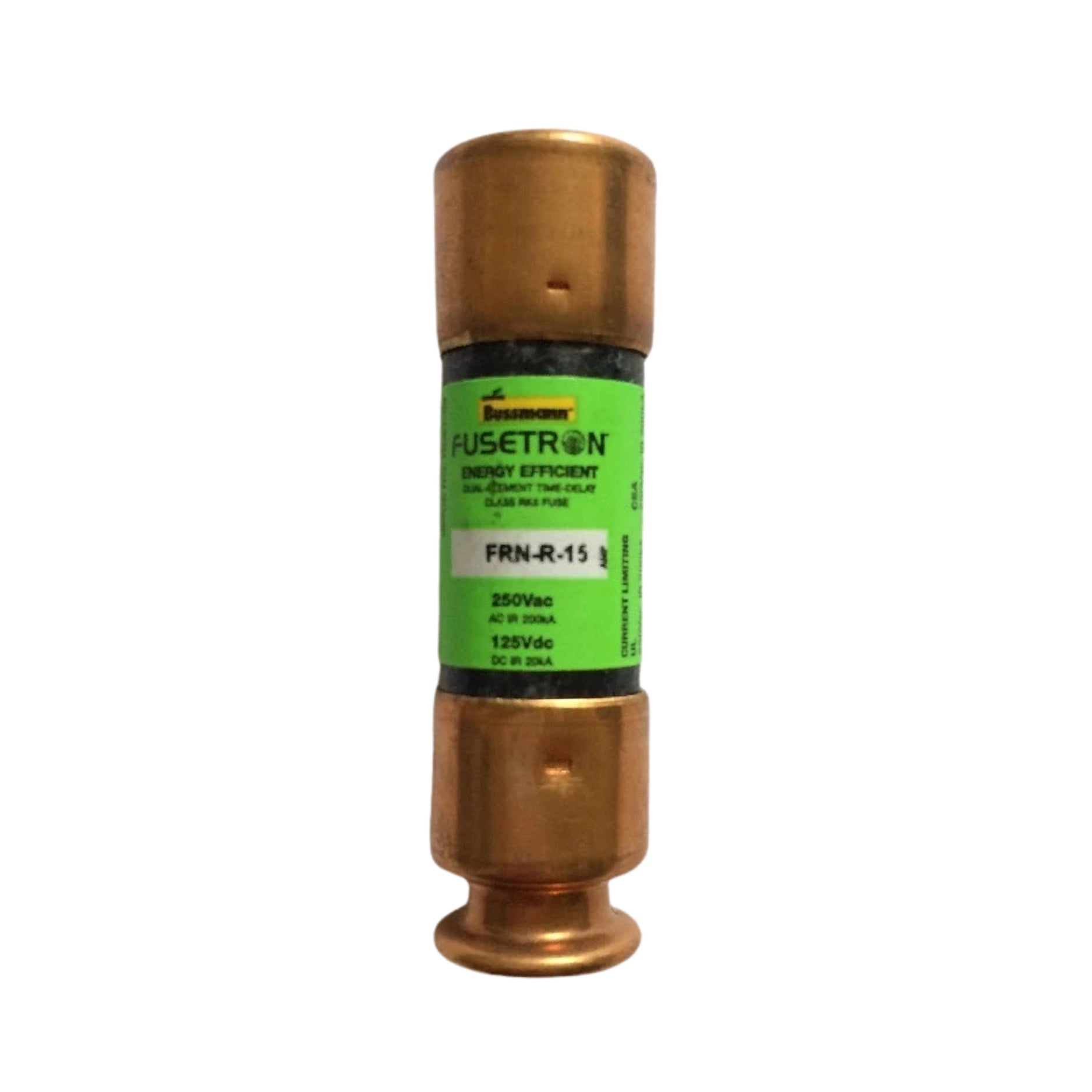

Bussmann FRN-R-15

Bussmann FRN-R-15

Overview

The Bussmann FRN-R-15 is a Class RK5 dual-element time-delay fuse designed to deliver overload and short-circuit protection for industrial and commercial systems. With a 15 A current rating and a voltage rating of 250 V AC / 125 V DC, this fuse is ideal for protecting small motors, transformers, and control circuits.

It features a 200 kAIC interrupt rating at 250 V AC and 20 kAIC at 125 V DC, ensuring safe fault clearing under high short-circuit conditions. The time-delay design (8 seconds at 500% overload) allows the fuse to withstand harmless inrush currents, reducing nuisance openings in motor and transformer applications.

Key Features

• Class RK5 time-delay dual-element fuse

• Current rating: 15 A

• Voltage rating: 250 V AC / 125 V DC

• Interrupt rating: 200 kAIC at 250 V AC / 20 kAIC at 125 V DC

• Response time: 8 seconds at 500% overload

• Dual-element design for reliable overload and short-circuit protection

• Connection: Ferrule end x ferrule end

• Fuse indicator: Non-indicating

• Dimensions: 2 in (L) × 0.56 in (W) × 0.56 in (H)

• Weight: 0.5 lb

• Compliance: CE Marked

• Packaging type: Standard

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: FRN-R-15

• Product Type: Time-delay fuse

• Fuse Class: RK5

• Amperage Rating: 15 A

• Voltage Rating: 250 V AC, 125 V DC

• Interrupt Rating: 200 kAIC (250 V AC), 20 kAIC (125 V DC)

• Response Time: 8 seconds at 500% overload

• Number of Elements: Dual

• Fuse Indicator: Non-indicating

• Connection Type: Ferrule end x ferrule end

• Dimensions: 2 in × 0.56 in × 0.56 in

• Weight: 0.5 lb

• Compliance: CE Marked

• Packaging Type: Standard

Applications

• Small motor protection

• Transformers

• Control circuits

• Power distribution panels

• Industrial and commercial electrical systems

Why Choose the FRN-R-15

• 200 kAIC interrupt rating ensures dependable protection under fault conditions

• Time-delay design handles temporary inrush currents without nuisance tripping

• Compact and durable Class RK5 fuse construction

• Provides both overload and short-circuit protection

• Backed by Bussmann reliability and CE compliance
