Allen-Bradley 1784-PKTX PCI Bus Communication Card | DH+ / DH-485

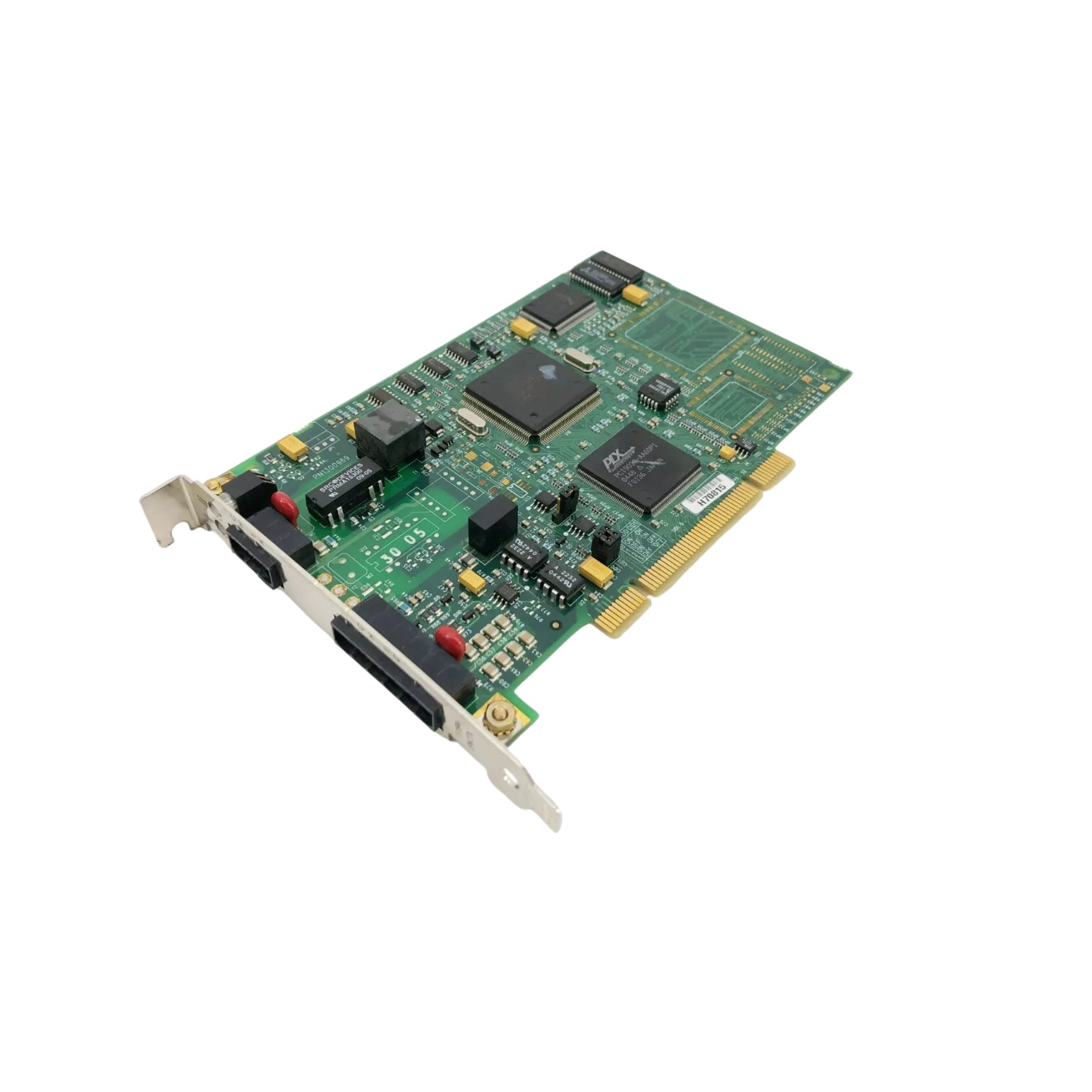

Allen-Bradley 1784-PKTX | PCI Bus Communication Card

Overview:

The Allen-Bradley 1784-PKTX is a high-performance PCI bus communication card, designed for industrial automation and network connectivity. It supports Data Highway Plus (DH+), DH-485, and Remote I/O (RIO) communication, making it an essential component for PLC and SCADA system integration.

Equipped with two independent communication channels, the 1784-PKTX provides flexible connectivity:

• CH 1A (3-pin Phoenix) – Supports DH+ and Remote I/O
• CH 1C (6-pin Phoenix) – Supports DH-485

This PCI card enables reliable industrial networking and seamless integration with RSLinx, making it ideal for legacy system upgrades and real-time data exchange.

Key Features:

• Supports DH+, DH-485, and Remote I/O (RIO) – Flexible communication capabilities
• Dual Communication Channels:
  • CH 1A (3-pin Phoenix) – Runs DH+ and RIO
  • CH 1C (6-pin Phoenix) – Runs DH-485
• PCI Bus Interface (PCI 2.3 Compliant) – Ensures compatibility with modern industrial computers
• Diagnostic LEDs for Each Channel – Provides real-time status monitoring
• Supports Up to 4 Modules per System – Configurable via jumper settings
• Compatible with RSLinx PKTx Driver – Simplifies setup and network management
• Driver Development for Remote I/O (6001-RIO) – Supports advanced custom applications
• Operating System Compatibility: Windows 95 / NT (Driver creation required for other OS)

Technical Specifications:

• Model: 1784-PKTX
• Series: 1784
• Bus Type: PCI (2.3 compliant)
• Supported Protocols: DH+, DH-485, Remote I/O (RIO)
• Number of Channels: 2
  • CH 1A (3-pin Phoenix): DH+ / Remote I/O
  • CH 1C (6-pin Phoenix): DH-485
• Maximum Modules per System: 4 (configured via jumper)
• LED Indicators: 1 diagnostic/status LED per channel
• Operating System Support: Windows 95 / NT (Custom driver required for other OS)
• Driver Software: RSLinx PKTx driver (for DH+ / DH-485)

Applications:

• Industrial Control & Automation Networks – Enables communication between PLCs, HMIs, and SCADA systems
• Legacy System Integration – Facilitates upgrades by providing connectivity to existing DH+ / DH-485 networks
• Remote I/O Communication – Supports data exchange between controllers and field devices
• SCADA & Data Acquisition Systems – Enhances real-time monitoring and control capabilities

Why Choose the Allen-Bradley 1784-PKTX?

The Allen-Bradley 1784-PKTX PCI communication card is a versatile and reliable solution for connecting industrial automation systems via DH+, DH-485, and remote I/O. With dual-channel support, RSLinx compatibility, and PCI bus connectivity, it is ideal for modernizing legacy automation networks.

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
