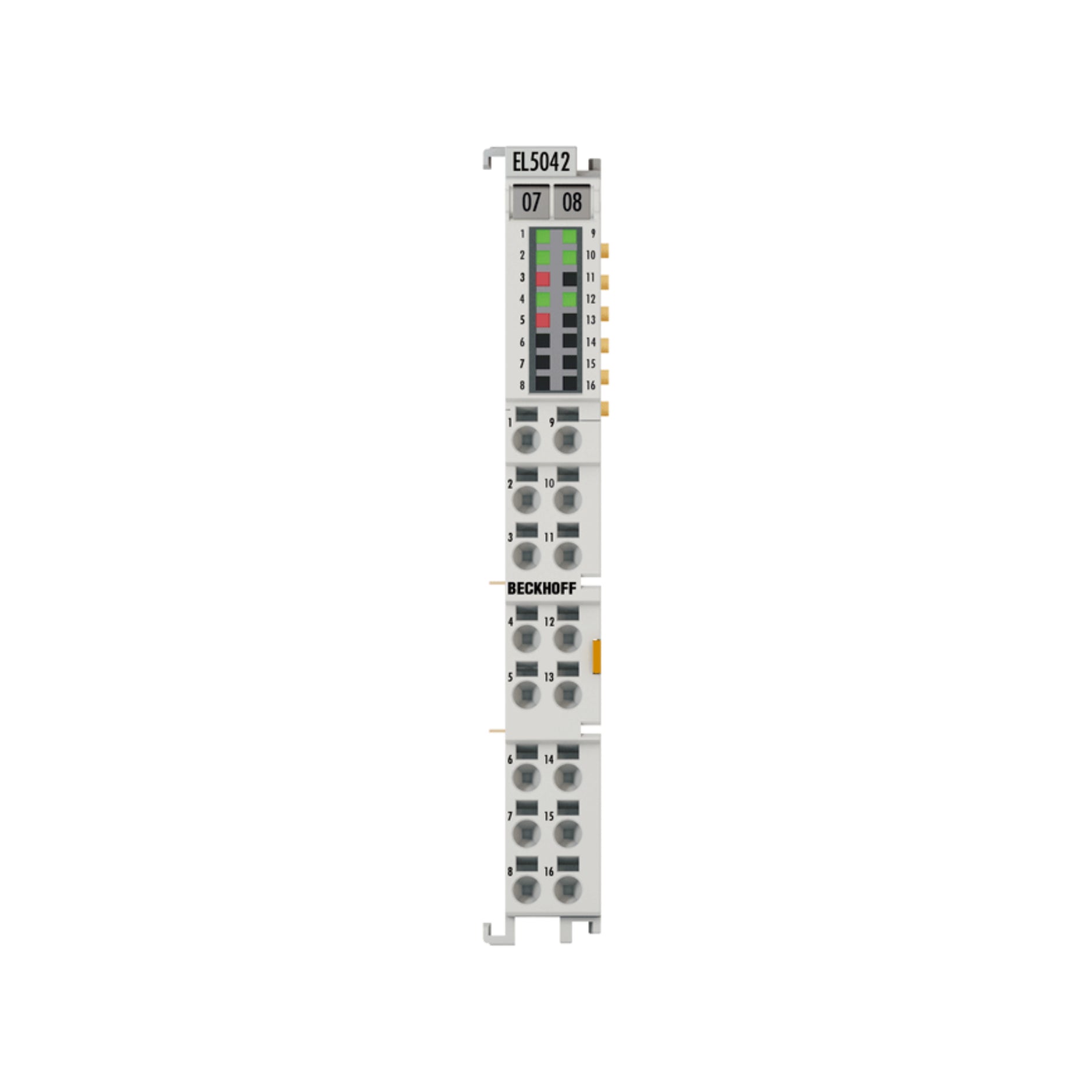

Beckhoff EL5042

Beckhoff EL5042

Overview

The Beckhoff EL5042 is a 2-channel SSI encoder interface EtherCAT Terminal designed for connecting absolute encoders with an SSI interface. It enables highly precise position and feedback acquisition for advanced motion control applications. With its compact DIN-rail design, the EL5042 integrates seamlessly into EtherCAT I/O systems.

Key Features

• 2 SSI encoder interface channels

• Supports absolute encoders with SSI protocol

• High-resolution position data acquisition

• Electrical isolation between bus and signals

• Compact design for space-saving installation

• Diagnostic LEDs for channel and status monitoring

Technical Specifications

• Beckhoff Code: EL5042

• Type: EtherCAT Terminal

• Channels: 2 SSI encoder inputs

• Signal Type: SSI (Synchronous Serial Interface)

• Resolution: Up to 32 bits

• Clock Frequency: 100 Hz to 2 MHz

• Electrical Isolation: Yes

• Current Consumption (E-bus): typ. 200 mA

• Operating Temperature: –25 °C to +60 °C

• Mounting: DIN rail

• Certifications: CE, UL

Applications

• Motion control systems

• Robotics and automation

• CNC machines

• Precise position feedback for servo drives

• Industrial machinery requiring absolute encoder inputs

Why Choose Beckhoff EL5042?

• Reliable 2-channel SSI encoder interface

• High-resolution data acquisition for precision control

• Seamless EtherCAT integration

• Compact and efficient terminal design

• Backed by Beckhoff’s trusted automation solutions

Order Now

Boost the accuracy of your motion control and automation systems with the Beckhoff EL5042, the high-performance SSI encoder interface terminal.
