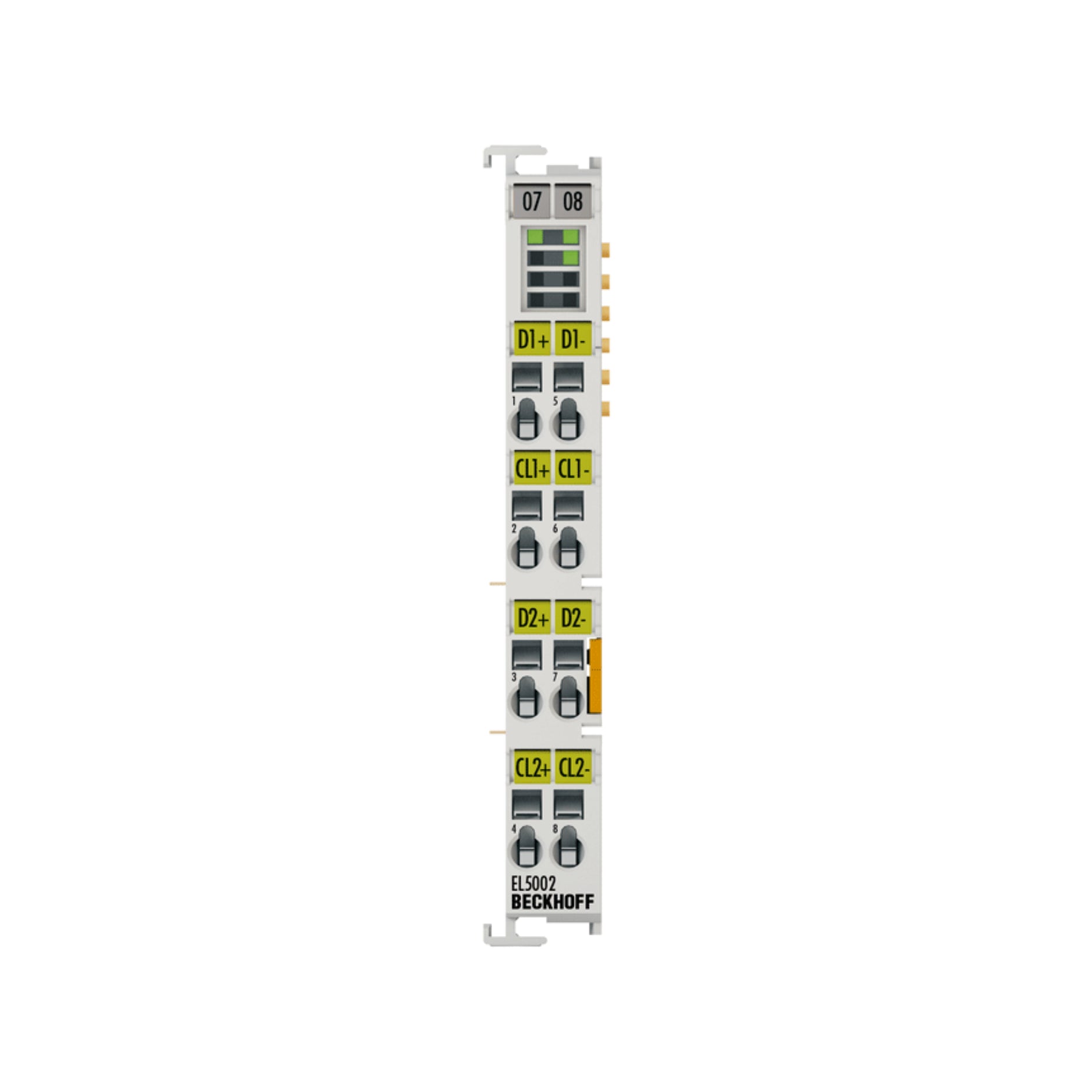

Beckhoff EL5002

Beckhoff EL5002

Overview

The Beckhoff EL5002 is a 2-channel SSI encoder interface EtherCAT Terminal designed for absolute encoders using the SSI protocol. It allows high-resolution acquisition of position values for demanding motion control applications, ensuring precise synchronization with EtherCAT systems.

Key Features

• 2 SSI encoder input channels

• Supports absolute encoders with SSI protocol

• High-resolution data acquisition up to 32 bits

• Electrical isolation between field and system bus

• Diagnostic LEDs for channel and status monitoring

• Compact DIN-rail design for flexible integration

Technical Specifications

• Beckhoff Code: EL5002

• Type: EtherCAT Terminal

• Channels: 2 SSI encoder inputs

• Signal Type: SSI (Synchronous Serial Interface)

• Resolution: Up to 32 bits

• Clock Frequency: 100 Hz to 2 MHz

• Electrical Isolation: Yes

• Current Consumption (E-bus): typ. 220 mA

• Operating Temperature: –25 °C to +60 °C

• Mounting: DIN rail

• Certifications: CE, UL

Applications

• High-precision motion control

• Robotics and industrial automation

• CNC machinery

• Position and feedback acquisition in drives

• Absolute encoder integration in EtherCAT networks

Why Choose Beckhoff EL5002?

• Robust 2-channel SSI encoder terminal

• High-resolution measurement for precise control

• Compact and efficient EtherCAT integration

• Reliable data transmission with electrical isolation

• Supported by Beckhoff’s advanced automation ecosystem

Order Now

Enhance your automation and motion systems with the Beckhoff EL5002, the trusted SSI encoder interface terminal for high-accuracy position feedback.
