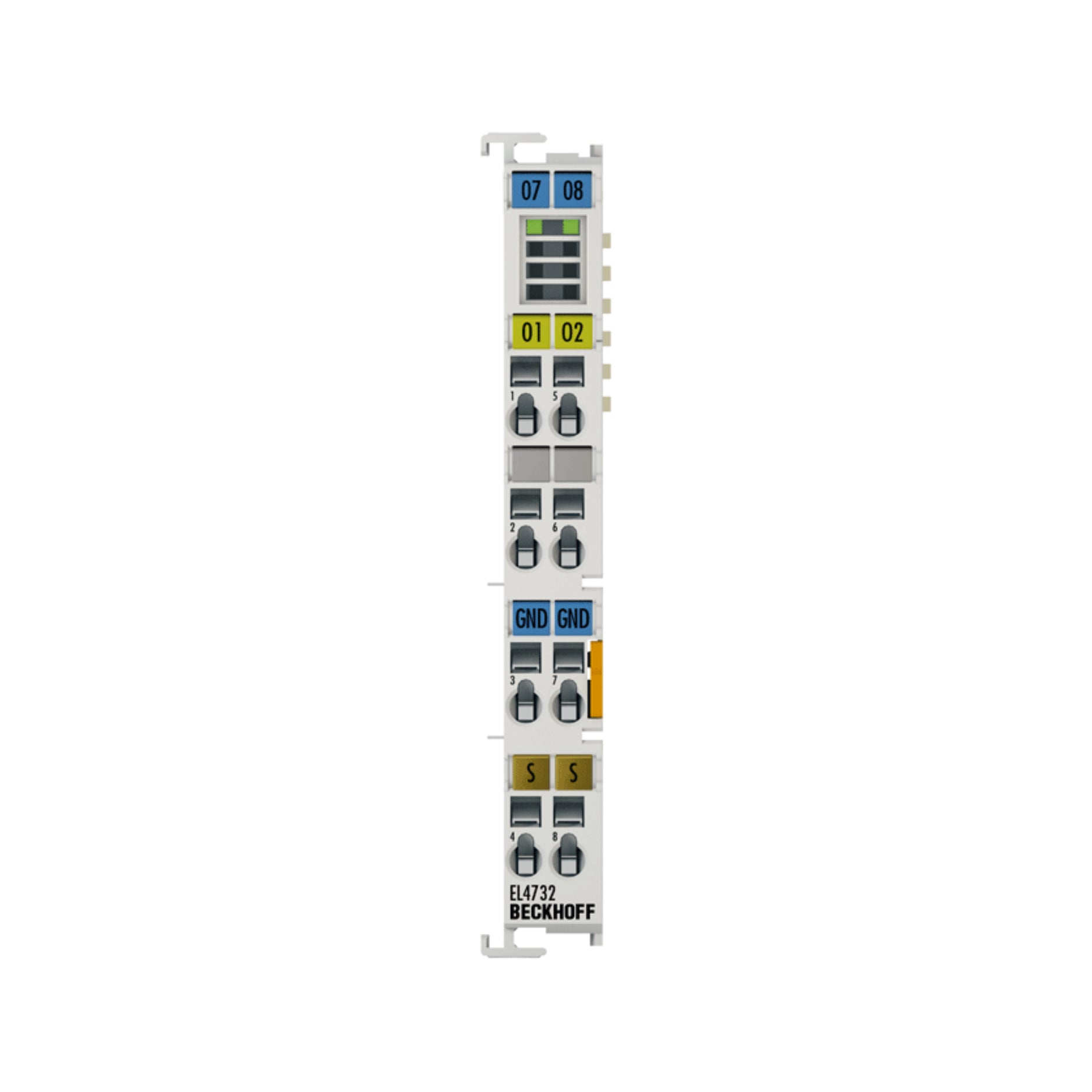

Beckhoff EL4732

Beckhoff EL4732

Overview

The Beckhoff EL4732 is a 2-channel analog output EtherCAT Terminal that delivers voltage signals in the range of ±10 V with a resolution of 16 bits. It is designed for precise signal output in demanding automation and control tasks, ensuring accurate interaction with analog actuators and devices.

Key Features

• 2 analog output channels

• Output range: ±10 V

• High resolution: 16-bit DAC

• Electrical isolation between field and system bus

• Diagnostic LEDs for status monitoring

• Compact DIN-rail mounting design

Technical Specifications

• Beckhoff Code: EL4732

• Type: EtherCAT Terminal

• Channels: 2 analog outputs

• Output Voltage Range: ±10 V

• Resolution: 16-bit

• Output Current: max. 10 mA per channel

• Electrical Isolation: Yes

• Current Consumption (E-bus): typ. 160 mA

• Current Consumption (from power contacts): typ. 50 mA

• Operating Temperature: –25 °C to +60 °C

• Mounting: DIN rail

• Certifications: CE, UL

Applications

• Analog signal generation for control systems

• Process control and automation

• Motion control systems

• Test and measurement setups

• Industrial machinery requiring analog output control

Why Choose Beckhoff EL4732?

• Reliable 2-channel analog output module

• High-precision 16-bit resolution

• Seamless EtherCAT integration

• Compact and robust design

• Trusted Beckhoff performance for industrial automation

Order Now

Optimize your automation setup with the Beckhoff EL4732, the precise 2-channel analog output terminal for advanced control applications.
