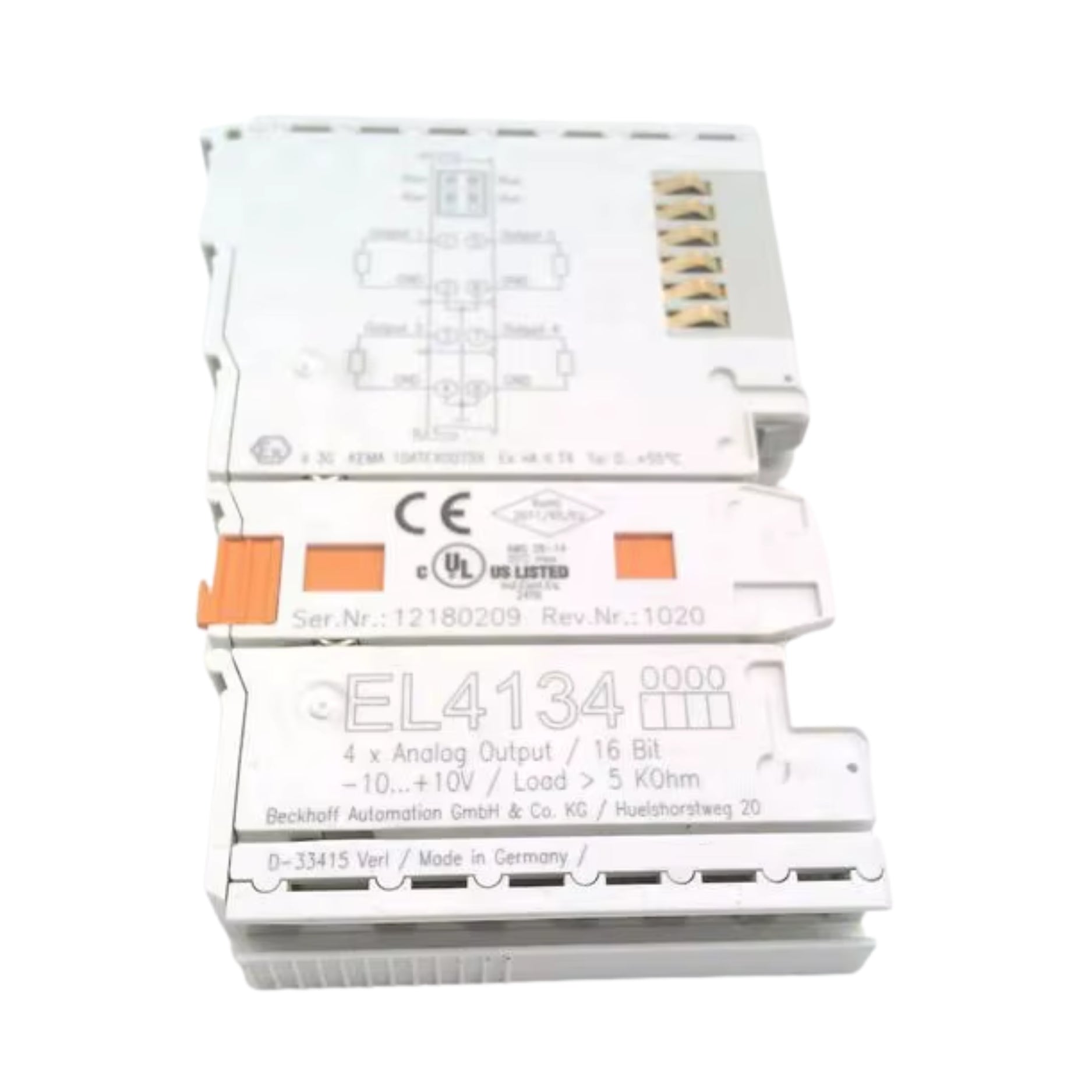

Beckhoff EL4134

Beckhoff EL4134

Overview

The Beckhoff EL4134 is a 4-channel analog output terminal for the EtherCAT I/O system. It generates voltage signals in the ±10 V range with 16-bit resolution, providing precise and high-quality output for controlling actuators, drives, and external devices. Compact and EtherCAT-integrated, it is ideal for distributed automation tasks requiring accurate analog signal generation.

Key Features

• 4 analog output channels

• Output range: ±10 V

• High resolution: 16-bit

• Electrical isolation between I/O and bus system

• Compact 12 mm EtherCAT terminal housing

• Diagnostic LEDs for output and bus monitoring

• Full TwinCAT integration for configuration and control

Technical Specifications

• Part Number: EL4134

• Manufacturer: Beckhoff

• Function: Analog output terminal

• Channels: 4 analog outputs

• Output Voltage: ±10 V

• Resolution: 16-bit

• Electrical Isolation: 500 V (I/O to bus system)

• Housing Width: 12 mm

• Mounting: DIN rail (EtherCAT Terminal system)

• Operating Temperature: –25 °C to +60 °C

Applications

• Precise control of actuators and drives

• Signal generation in machine automation

• Laboratory and test equipment setups

• Process automation with analog signal outputs

• Distributed EtherCAT I/O architectures

Why Choose the EL4134

• High-resolution 16-bit analog outputs

• Compact 12 mm design with 4 channels

• ±10 V output range for industrial applications

• Real-time EtherCAT performance

• Backed by Beckhoff reliability and TwinCAT software support

Order Now

The Beckhoff EL4134 4-channel analog output terminal is available and ships worldwide.
