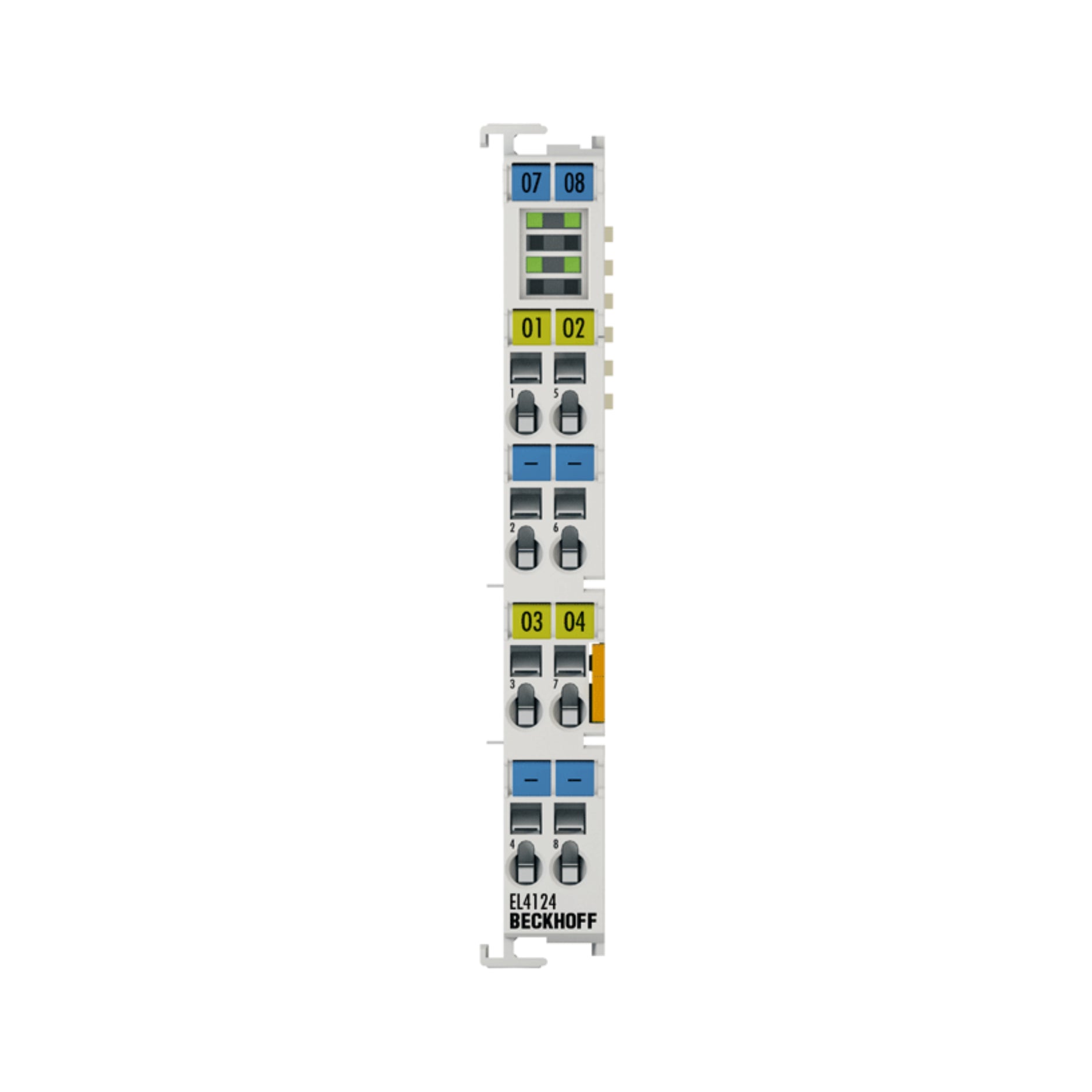

Beckhoff EL4124

Beckhoff EL4124

Overview

The Beckhoff EL4124 is a 4-channel analog output terminal designed for generating output signals in the range of ±10 V with 12-bit resolution. It provides precise analog signal generation, making it ideal for controlling actuators, setpoints, and other devices in industrial automation.

Key Features

• 4 analog output channels

• Output range: ±10 V

• 12-bit resolution for accurate signal control

• Electrical isolation between field and system bus

• Diagnostic LEDs for status monitoring

• Compact DIN-rail terminal design

Technical Specifications

• Beckhoff Code: EL4124

• Type: Analog Output Terminal

• Channels: 4

• Output Voltage Range: ±10 V

• Resolution: 12-bit

• Output Current per Channel: up to 10 mA

• Current Consumption (from bus): typ. 180 mA

• Electrical Isolation: Yes

• Operating Temperature: 0 °C to +55 °C

• Mounting: DIN rail

• Certifications: CE, UL

Applications

• Control of actuators and drives

• Setpoint generation for process control

• Automation and measurement systems

• Industrial machine control

• Modular Beckhoff I/O integration

Why Choose Beckhoff EL4124?

• 4 independent analog output channels

• High accuracy with 12-bit resolution

• Reliable signal control in industrial settings

• Seamless integration with Beckhoff EtherCAT terminals

Order Now

Enhance your automation system with the Beckhoff EL4124, the reliable analog output terminal for precise signal generation.
