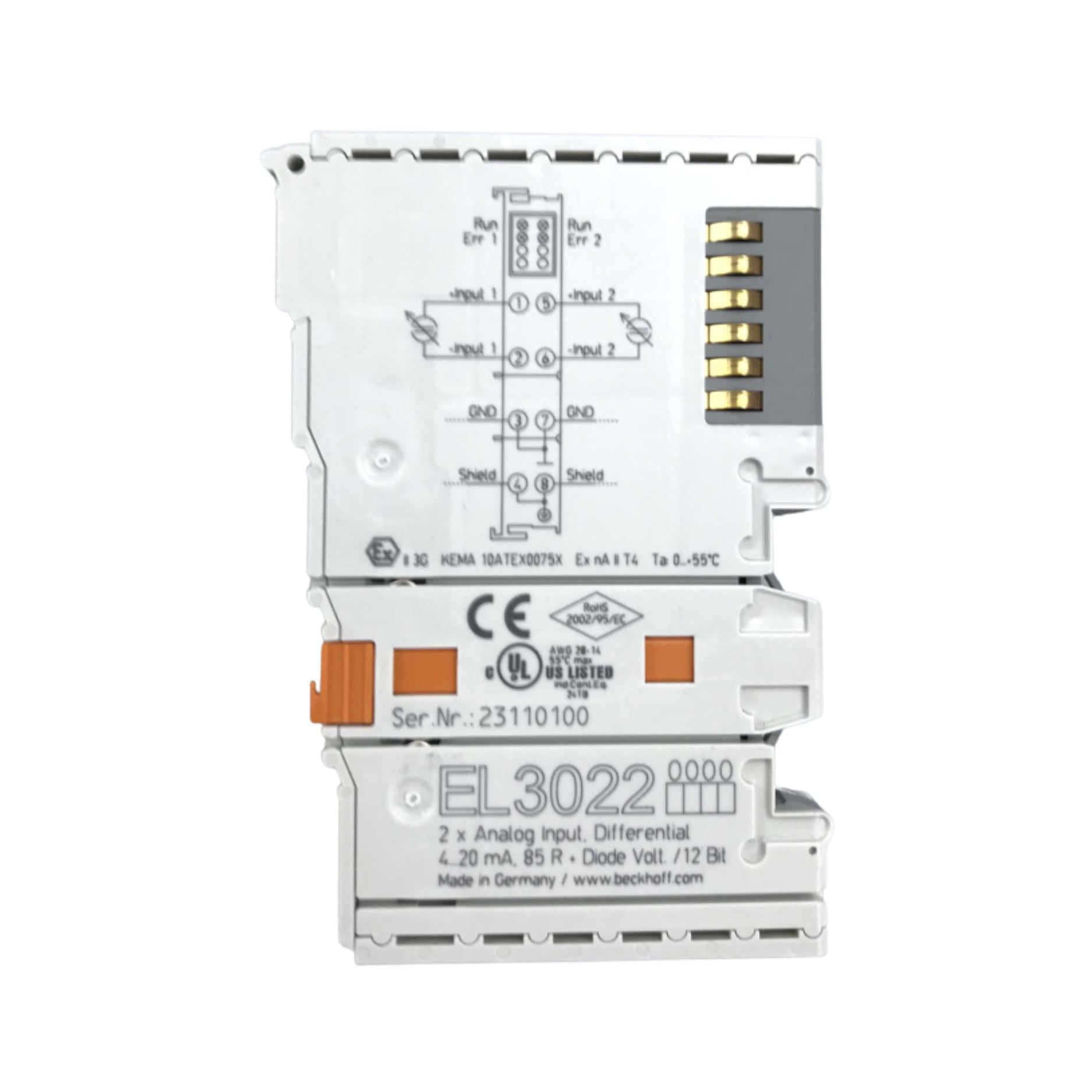

Beckhoff EL3022
Overview
The Beckhoff EL3022 is a 2-channel analog input terminal for the EtherCAT I/O system, designed for acquiring current signals in the ranges 0–20 mA and 4–20 mA. With a 12-bit resolution, it enables precise measurement for sensors and transducers in automation systems. Compact and reliable, the EL3022 is optimized for distributed I/O and integrates seamlessly with TwinCAT software.
Key Features
-
2 analog input channels
-
Input ranges: 0–20 mA, 4–20 mA
-
12-bit resolution
-
Compact 12 mm EtherCAT terminal design
-
Electrical isolation between I/O and bus system
-
Diagnostic LEDs for monitoring input status
-
Full integration with TwinCAT automation systems
Technical Specifications
-
Part Number: EL3022
-
Manufacturer: Beckhoff
-
Function: Analog input terminal
-
Channels: 2 analog inputs
-
Input Signal: Current (0–20 mA / 4–20 mA)
-
Resolution: 12-bit
-
Electrical Isolation: Yes (I/O to EtherCAT bus)
-
Housing Width: 12 mm
-
Mounting: DIN rail (EtherCAT Terminal system)
-
Operating Temperature: –25 °C to +60 °C
Applications
-
Current signal acquisition from sensors and transmitters
-
Process monitoring in automation systems
-
Machine control with analog signal inputs
-
Energy and building automation
-
Distributed EtherCAT I/O networks
Why Choose the EL3022
-
Reliable 2-channel analog input terminal
-
Supports standard industrial current ranges (0–20 mA / 4–20 mA)
-
Compact EtherCAT design saves cabinet space
-
Diagnostic features for easier maintenance
-
Proven Beckhoff quality and TwinCAT compatibility
Order Now
The Beckhoff EL3022 2-channel analog input terminal for 0/4–20 mA current signals is available and ships worldwide.
