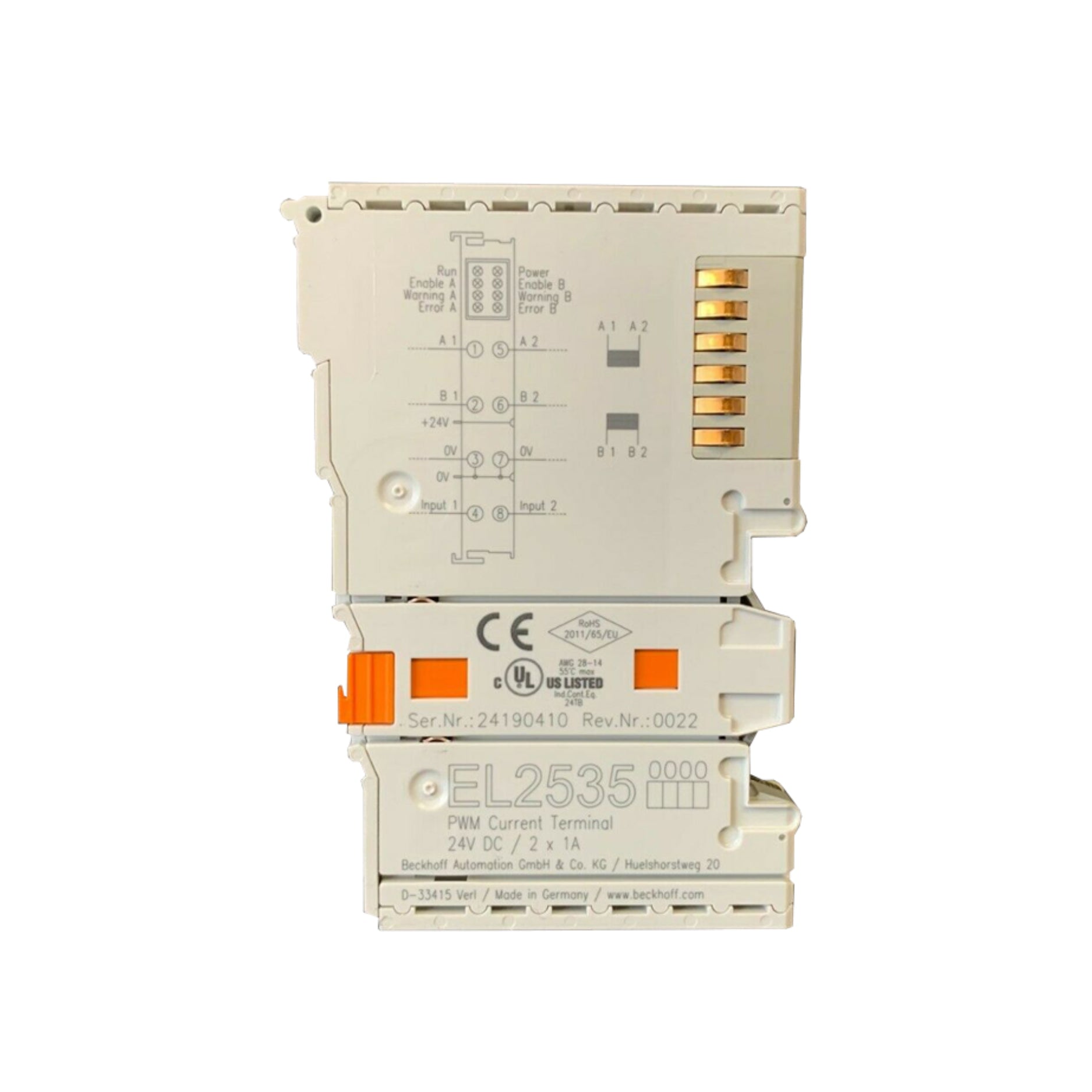

Beckhoff EL2535

Beckhoff EL2535

Overview

The Beckhoff EL2535 is a 2-channel PWM output terminal designed for controlling actuators, motors, and other devices requiring pulse width modulation. With 24 V DC output and up to 3 A per channel, it ensures reliable signal control and integrates seamlessly with Beckhoff’s modular I/O system via the K-bus.

Key Features

• 2 PWM output channels

• Output voltage: 24 V DC

• Max. load: 3 A per channel

• Pulse width modulation for precise control

• Integrated diagnostics and protection

• Compact modular design for K-bus systems

Technical Specifications

• Beckhoff Code: EL2535

• Type: PWM Output Terminal

• Channels: 2

• Output Voltage: 24 V DC

• Max. Current per Channel: 3 A

• Output Type: PWM (Pulse Width Modulation)

• Bus Connection: K-bus

• Operating Temperature: 0 °C to +55 °C

• Mounting: DIN rail

• Dimensions: Standard Beckhoff terminal size

• Certifications: CE, UL

Applications

• Motor control

• Actuator control

• Industrial automation systems

• Signal modulation for process control

• Test and measurement applications

Why Choose Beckhoff EL2535?

• High-current PWM output up to 3 A

• Compact and modular design for flexibility

• Seamless integration with Beckhoff I/O terminals

• Reliable performance in demanding automation environments

Order Now

Deploy the Beckhoff EL2535 — a precise and robust 2-channel PWM output terminal for advanced industrial automation control.
