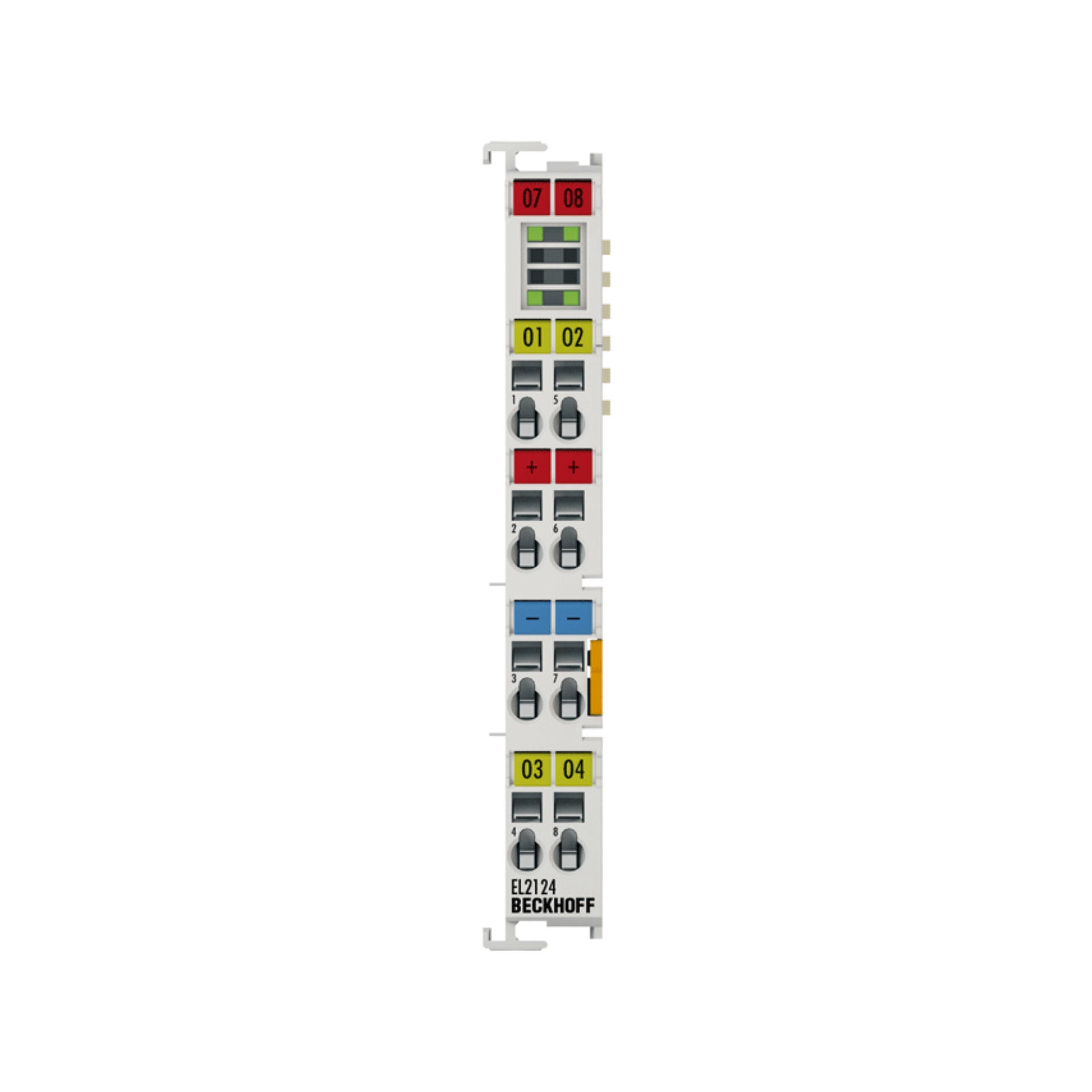

Beckhoff EL2124

Beckhoff EL2124

Overview

The Beckhoff EL2124 is a 4-channel digital output terminal designed for controlling actuators, relays, and devices using 24 V DC signals. It provides secure switching with short-circuit and overload protection, suitable for industrial automation and machine control applications.

Key Features

• 4 digital output channels

• Output voltage: 24 V DC

• Max output current per channel: 0.5 A

• Short-circuit and overload protection

• Diagnostic LEDs for channel status

• Compact DIN-rail design for modular integration

Technical Specifications

• Beckhoff Code: EL2124

• Type: Digital Output Terminal

• Channels: 4

• Output Voltage: 24 V DC

• Max Output Current per Channel: 0.5 A

• Current Consumption (from bus): typ. 40 mA

• Response Time: 0.5 ms typ.

• Operating Temperature: 0 °C to +55 °C

• Mounting: DIN rail

• Certifications: CE, UL

Applications

• Switching actuators, relays, and devices

• Machine and process automation

• Integration with Beckhoff EtherCAT I/O systems

• Industrial control and monitoring

• Modular automation setups

Why Choose Beckhoff EL2124?

• Reliable 4-channel digital output terminal

• Compact and space-saving design

• Fast and secure switching

• Fully compatible with Beckhoff modular I/O systems

Order Now

Optimize your automation system with the Beckhoff EL2124, providing reliable 24 V DC digital output control for industrial applications.
