Beckhoff KL2542

Beckhoff KL2542

Overview

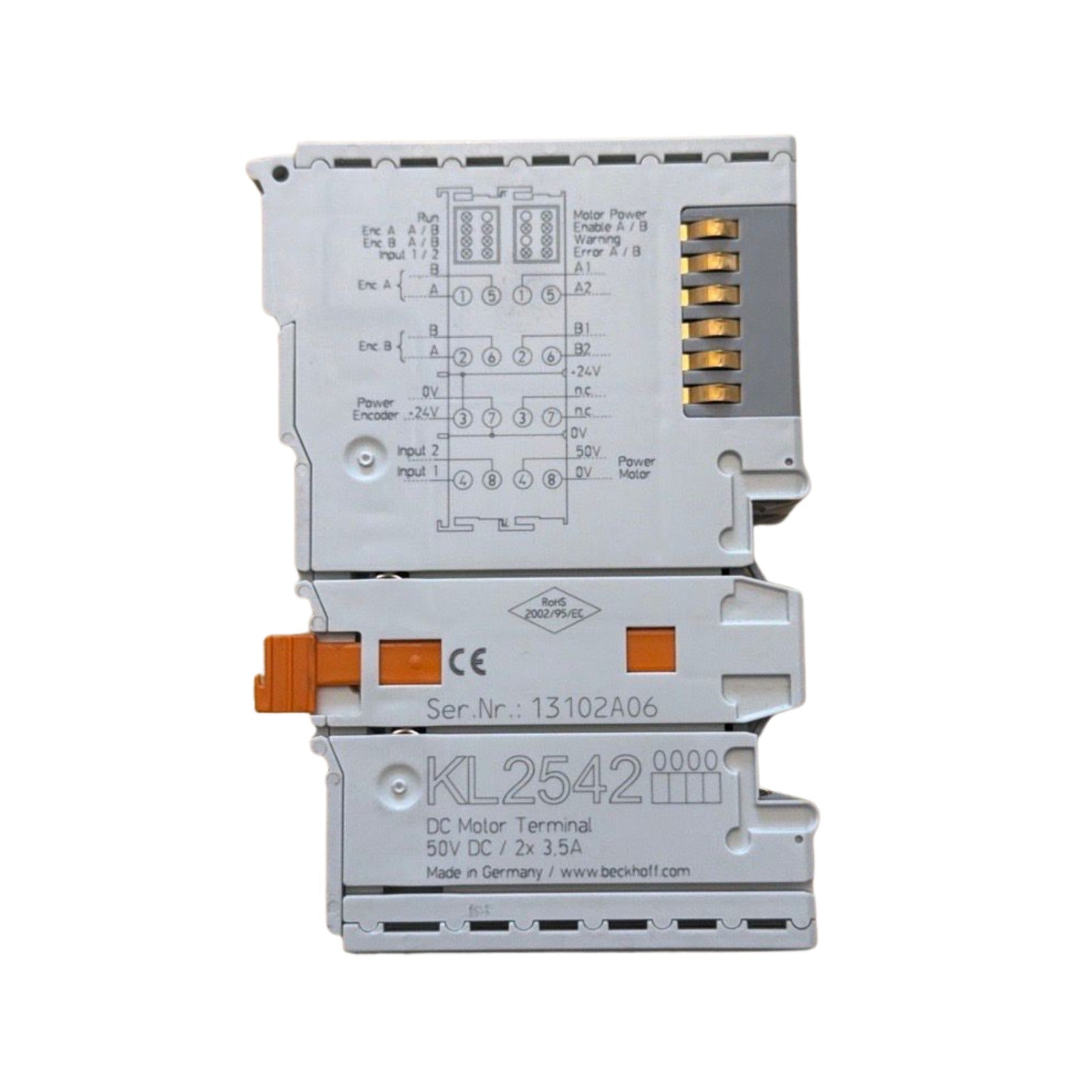

The Beckhoff KL2542 is a 2-channel motion control Bus Terminal designed to directly operate DC brush motors in automation systems. It allows controllers to define motor speed or position through digital control values and supports encoder feedback for simple servo axis implementation.

This terminal integrates into Beckhoff Bus Terminal I/O systems and includes overload, short-circuit protection, and diagnostic LEDs for fast troubleshooting.

Key Features

• Two-channel DC motor control output

• Supports speed and position control via controller values

• Compatible with incremental encoder feedback

• Built-in overload and short-circuit protection

• LED status indicators for diagnostics

• Galvanic isolation between K-bus and field voltage

Technical Specifications

• Model: KL2542

• Type: DC motor output Bus Terminal

• Number of Outputs: 2 channels

• Load Voltage: 8…48 V DC

• Output Current: Up to 3.5 A per channel (short-circuit protected)

• Load Type: DC brush motors, inductive loads

• PWM Frequency: Approx. 35–36 kHz

• Control Resolution:

  • 12-bit current

  • 16-bit speed control

• Digital Inputs: 2 inputs for limit detection

• Encoder Inputs: Supports incremental encoder systems

• Electrical Isolation: 500 V between K-bus and field potential

• Operating Temperature: Typically 0 °C to +55 °C

• Mounting: DIN rail Bus Terminal system

Applications

• DC motor motion control

• Conveyor and material handling systems

• Compact servo axis implementations

• Industrial automation and machine control

• Robotics and positioning systems

Why Choose This Model?

• Allows direct DC motor operation without external drive

• Supports encoder feedback for improved motion accuracy

• Integrated protection increases system reliability

• Compact Bus Terminal design simplifies installation

• Seamless integration into Beckhoff I/O and PLC systems

Order Now

The Beckhoff KL2542 is a reliable and compact solution for controlling DC motors with integrated diagnostics and encoder feedback capability.
