Overview

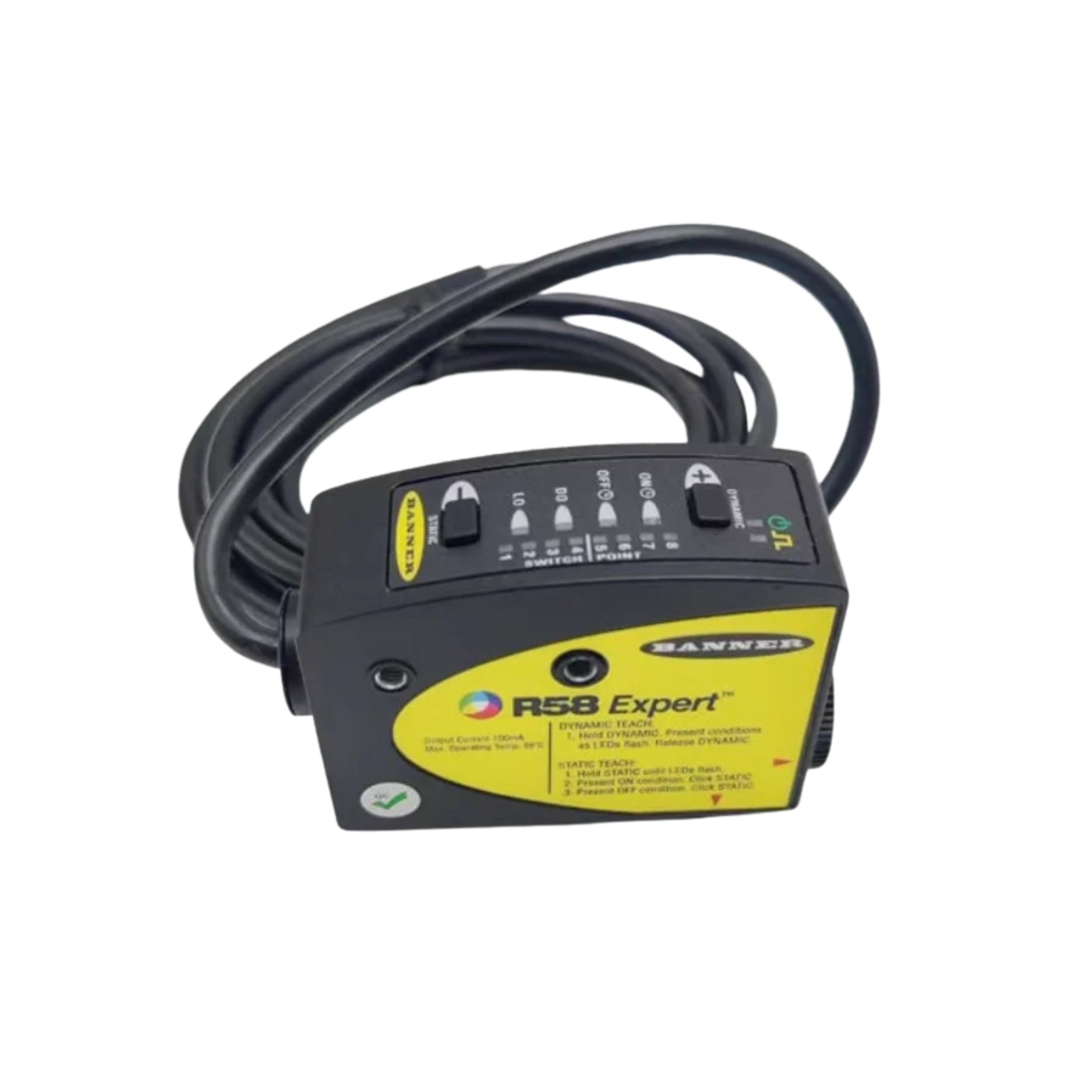

The Banner R58ECRGB1 is a high-performance registration mark sensor designed for precise detection of small contrast marks on moving materials such as film, labels, and packaging. Its RGB LED light source automatically selects the optimal wavelength for maximum contrast, ensuring fast and accurate sensing even on shiny or low-contrast surfaces.

Key Features

• RGB LED (red, green, blue) auto-select for best contrast

• Ultra-fast response time: 50 µs

• Bipolar outputs: NPN + PNP simultaneously

• Fixed focus at 10 mm for consistent alignment

• TEACH buttons for easy setup

• Signal strength bar graph for visual feedback

• Rugged metal housing rated IP67 for harsh industrial use

Technical Specifications

• Model: R58ECRGB1

• Series: R58E Expert

• Sensing Mode: Registration mark detection

• Light Source: RGB LED auto-selection

• Supply Voltage: 10–30 V DC

• Outputs: Bipolar — 1 × NPN + 1 × PNP

• Sensing Distance / Focus: 10 mm ± 3 mm

• Spot Size at Focus: Approx. 1.2 mm × 3.8 mm

• Response Time: 50 µs

• Housing Material: Metal body, acrylic optics

• Environmental Rating: IP67 / NEMA 6

• Operating Temperature: –10 °C to +55 °C

• Connection: 2 m cable (QD variants available)

Applications

• Registration mark detection on film and label webs

• High-speed printing, packaging and converting machines

• Glossy, reflective, and low-contrast surface detection

• Edge tracking and cut-to-mark positioning

• Industrial environments with vibration and contaminants

Why Choose Banner R58ECRGB1?

• Highly specialized for registration mark sensing

• Maintains accuracy at high machine speeds

• Flexible integration thanks to simultaneous PNP/NPN outputs

• Engineered for long-term industrial reliability

• Fast and simple configuration with TEACH interface

Order Now

Improve production accuracy with the Banner R58ECRGB1 — the fast, compact, and robust solution for advanced registration mark applications.
